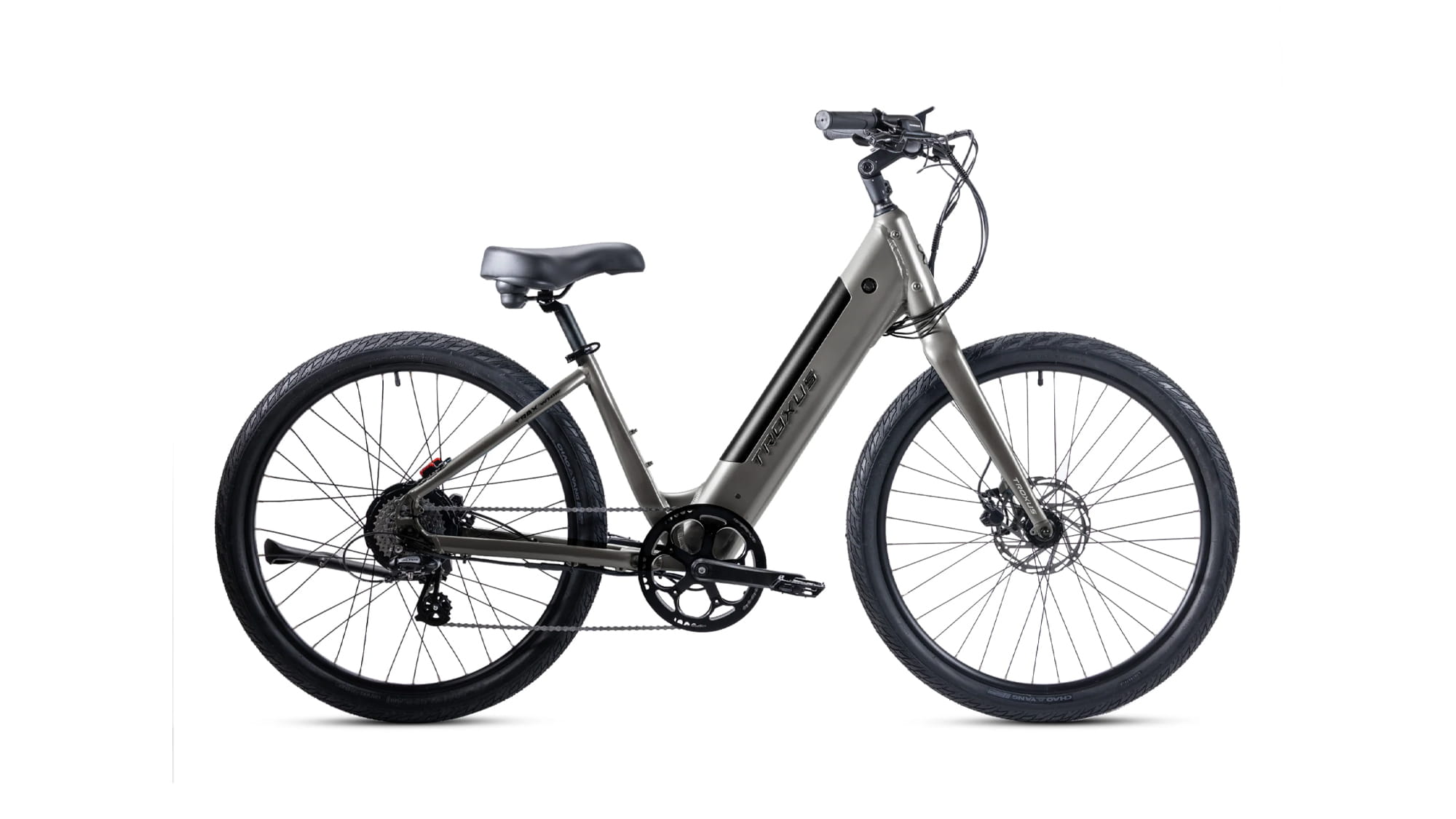

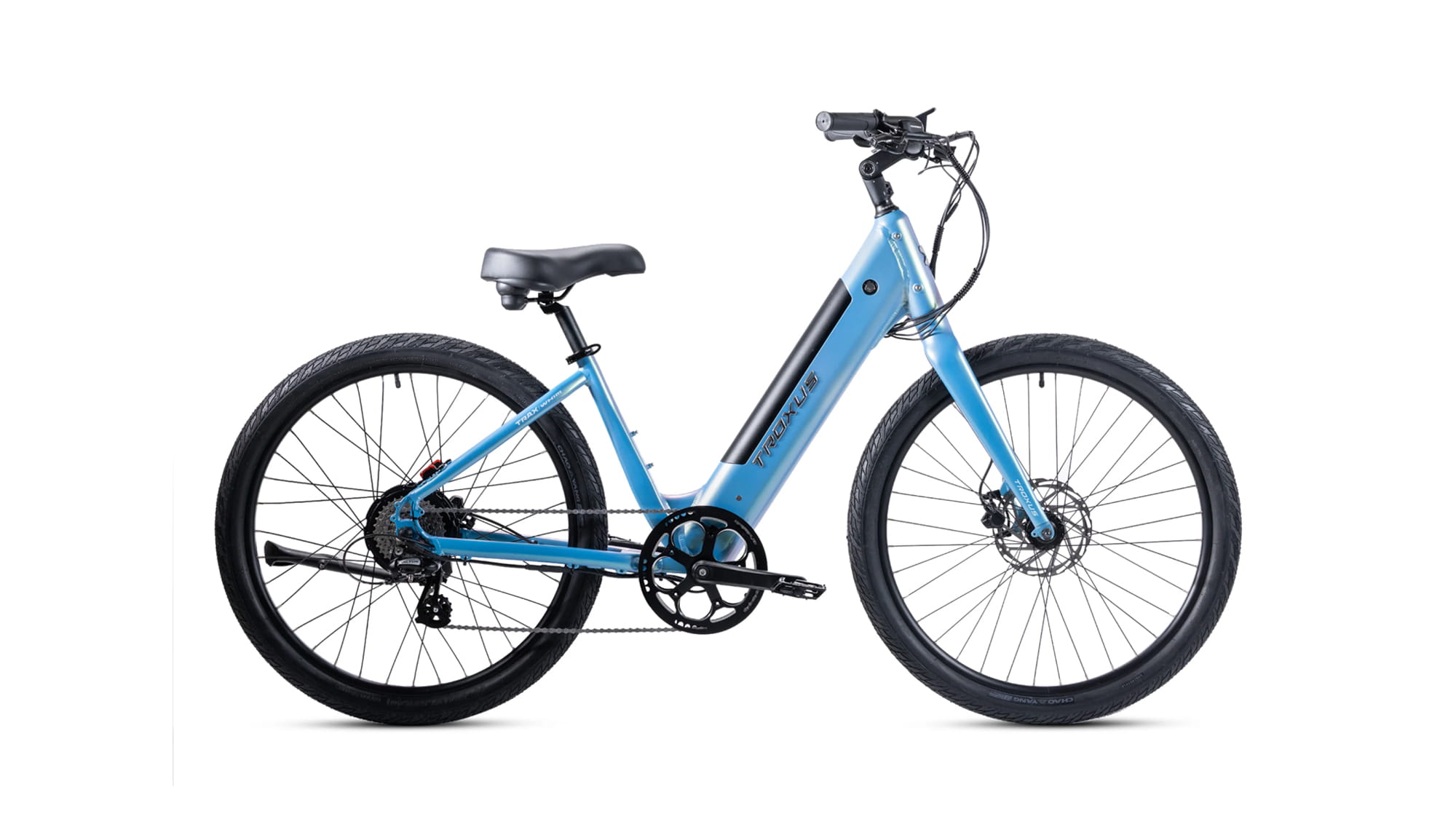

Troxus Whim IQ
The Troxus Whim IQ electric cruiser bike is designed for effortless city riding with comfort-first geometry and Ride iQ smart integration. It simplifies everyday commuting with smooth assist, step-through accessibility, and a relaxed riding experience for urban travel.
Please note: We always honor any manufacturer sale prices for Troxus Mobility even if our listed price reflects differently.
UP TO 28 MPH
Max Speed
Max Speed
UP TO 70 Miles
Per Charge
Per Charge
500W
Hub Motor
Hub Motor
48V 14Ah (672Wh)
SAMSUNG® Cells
SAMSUNG® Cells
300 lbs
Payload Capacity
Payload Capacity
SENSOR

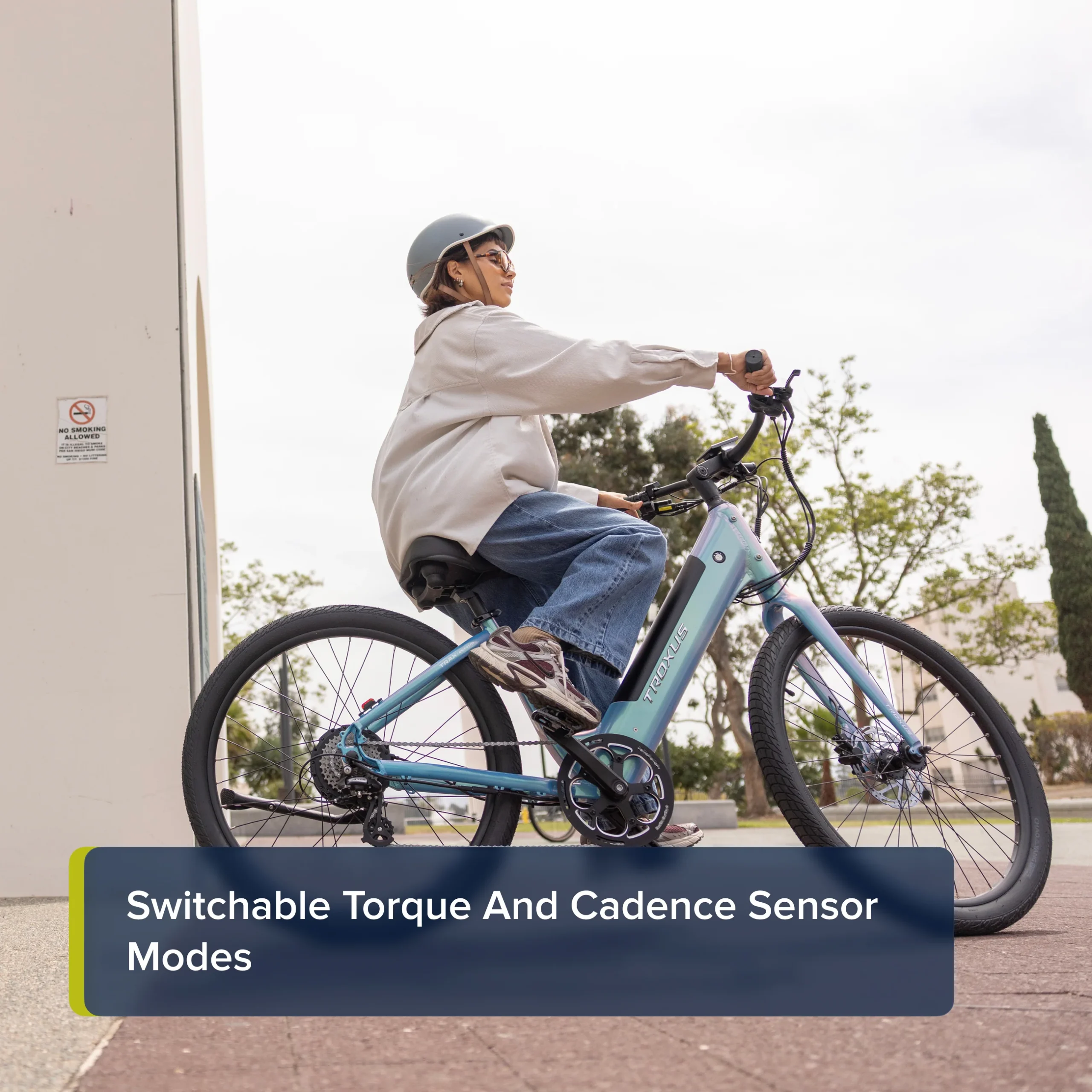

Switchable Torque And Cadence Sensor Modes
Switchable Torque And Cadence Sensor Modes
E-SYSTEM

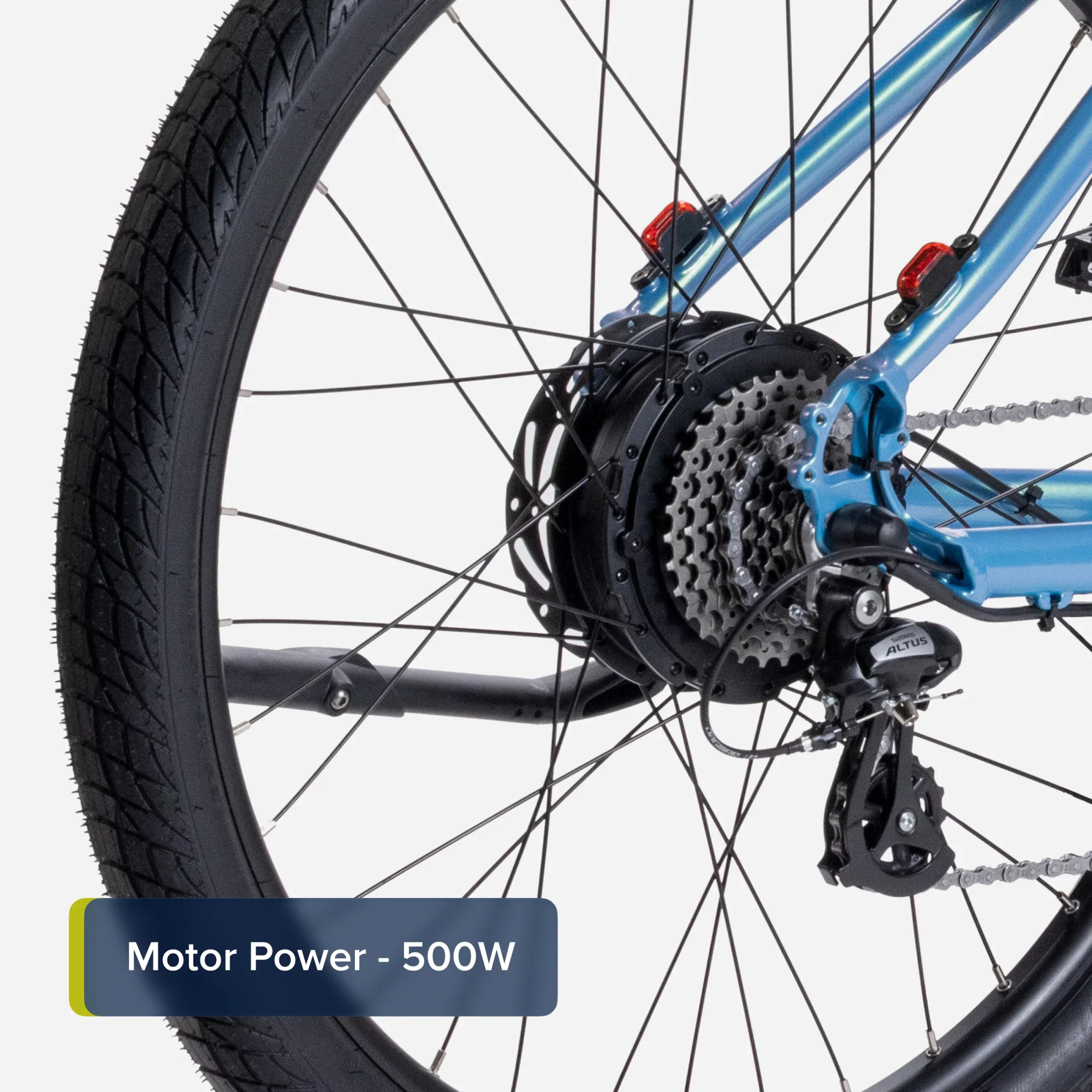

- Motor: ShengYi 48V/500W Hub-Drive Motor, 50Nm Max. Torque
- Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/14Ah (672Wh) with Samsung® Cells
- Display: Troxus Ride iQ 1.0 Android / Apple. Color Display, Bluetooth, w/ Multi-Function Remote

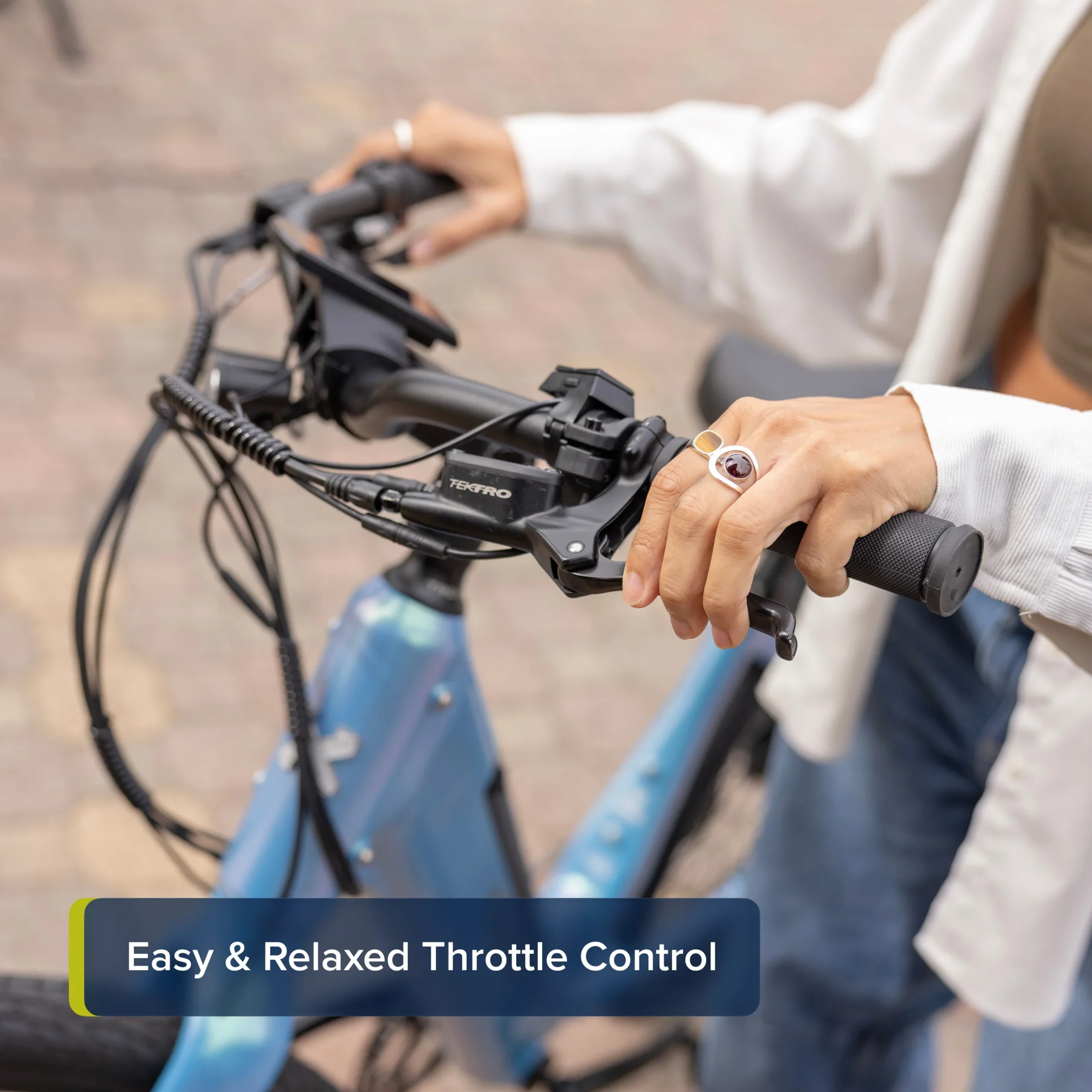

- Throttle: Thumb Throttle on Handlebar
- Sensor: Switchable Torque And Cadence Sensor Modes
- Pedal Assist: 0~5 Level Pedal Assist
- Charger: 2A / 100-240V Input / 54.6V Output

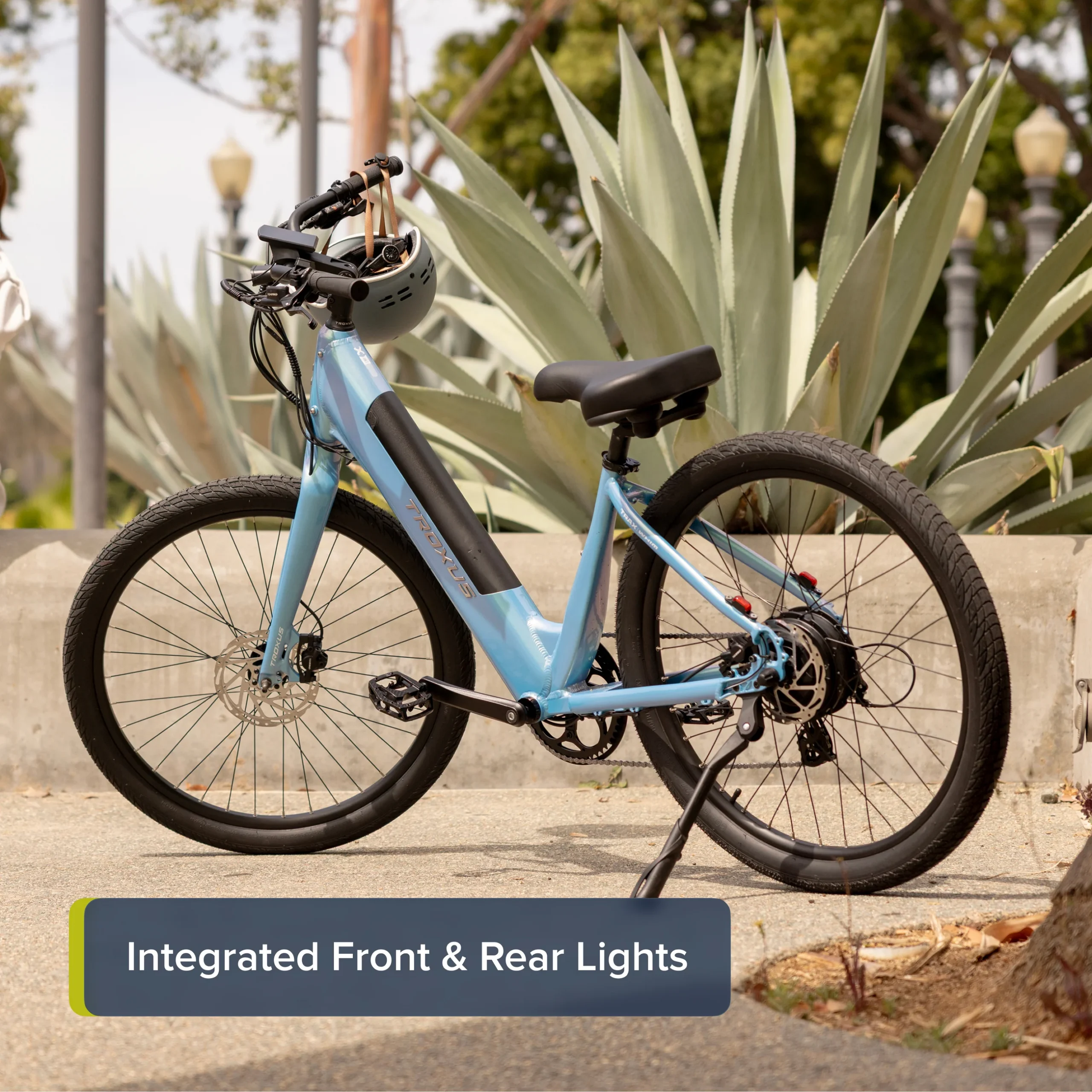

- Lights: Rear Light w/ Turn & Hazard Signals
- Controller: 48Vx15A/12V
COMPONENTS

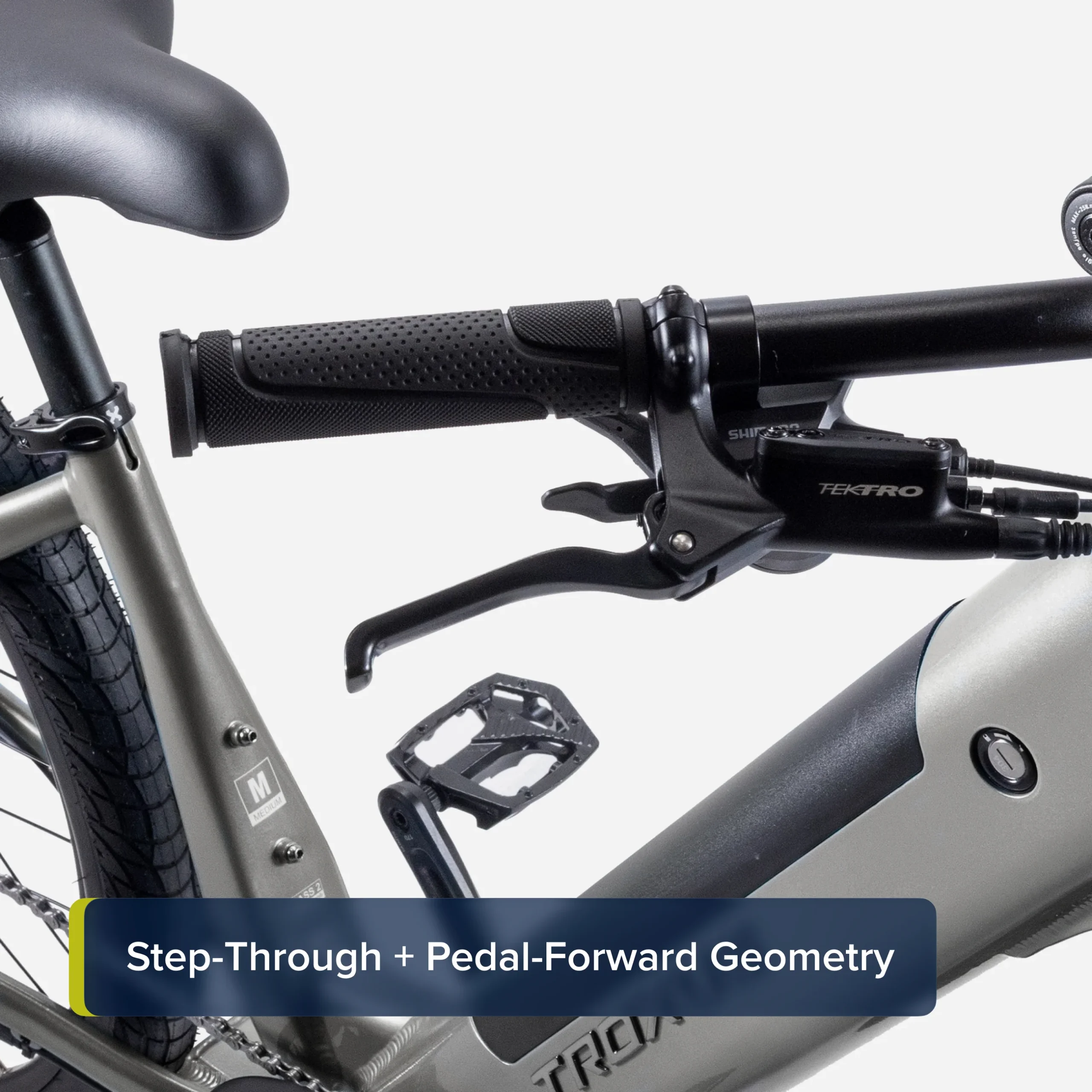

- Frame: 6061-T6 Aluminum Step-Thru, Pedal Forward Frame
- Fork: Aluminum, Rigid Fork, Threadless Steerer
- Chain: KMC® 1/2″x3/32″
- Crankset: Aluminum, 52T, w/ Single Alloy Chainguard, Square Taper, 170mm
- Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
- Cassette: Shimano 8-Speed, 12-32T
- Shifter: Shimano® 8-Speed
- Bottom Bracket: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
- Tires: ARISUN® BEETLE 27.5×2.4″
- Front Hub: Alloy, 36H, 100mm, 3/8″Axle w/ Nuts
- Rear Hub: ShengYi 48V/500W/ 28MPH. 50Nm
- Rims: Alloy, Double Wall Front & Rear, 36H, w/ Eyelets
- Spokes: Stainless 14G. Front / 13G. Rear
- Brakes: Tektro® Hydraulic, w/ Brake Sensors
- Rotors: 180mm / 160mm

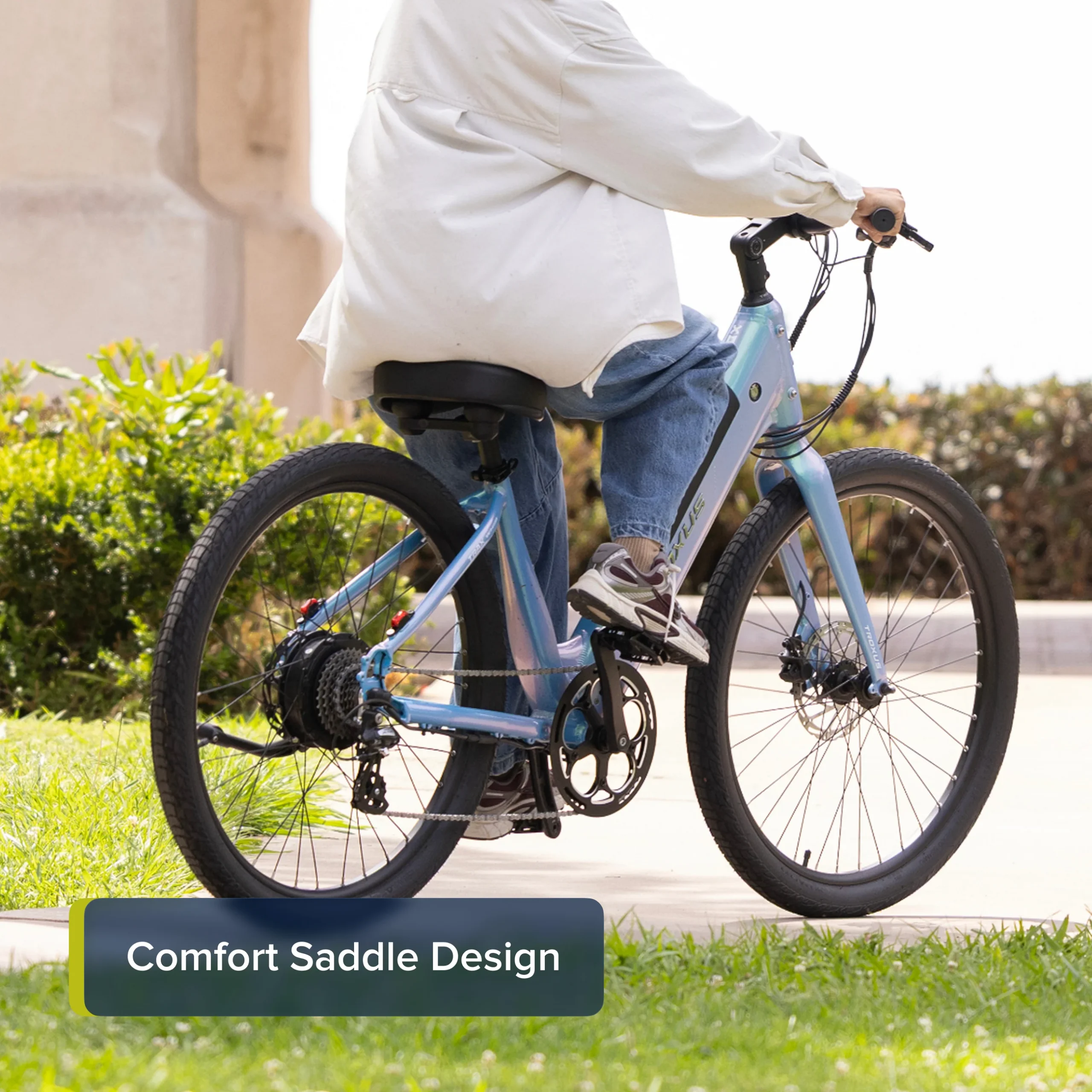

- Saddle: Troxus Comfort
- Seat Post: Alloy, 30.9x350mm, Adjustable
- Seat Post Clamp: Alloy, 35mm w/ Quick Release
- Stem: Zoom® Alloy, Forged, Adjustable, Ext. 90mm
- Handlebar: Zoom® Alloy, 31.8mmx680mm Wide, 37º Backsweep
- Grips: Ergonomic Comfort
- Pedals: 9/16″ Alloy Platform with Reflectors
- Headset: Threadless, Internal 1-1/8″
- Rear Shocks: N/A
- Rack: N/A
- Fender: N/A
- Kickstand: Adjustable Side Kickstand
SPEED, RANGE, WEIGHT & SUPPORT
- Max Speed: Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist

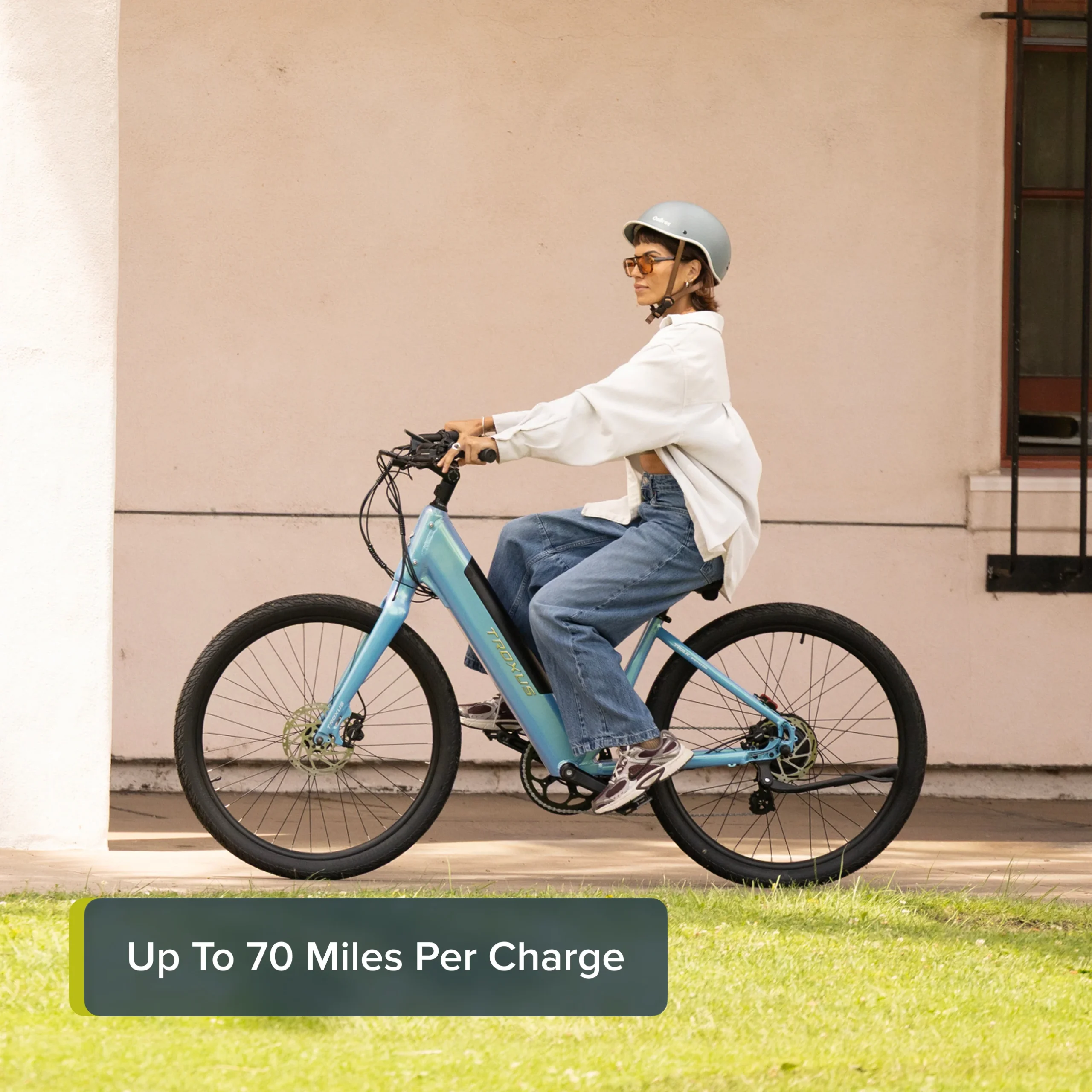

- Range: Up To 70 Miles Per Charge
- Weight Limit: Maximum Load: 300 lbs. / Rider: 265Lbs.
- Net Weight:
RECOMMENDED HEIGHT
Small: 5’0″ – 5’7″
Medium: 5’6″ – 6’2″

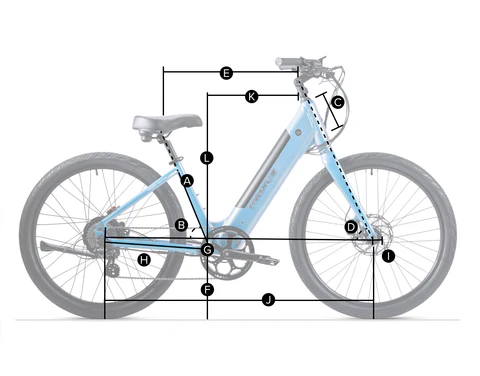

GEOMETRY
| Model | Step-Thru | Step-Thru |
| Frame Size | Small | Medium |
| Wheel Size | 27.5″x2.4″ | 27.5″x2.4″ |
| A – Seat Tube Length | 394 | 445 |
| B – Seat Tube Angle | 70° | 70° |
| C – Head Tube Length | 185 | 190 |
| D – Head Tube Angle | 68° | 68° |
| E – Effective Top Tube Length | 620 | 630 |
| F – Bottom Bracket Height | 307 | 307 |
| G – Bottom Bracket Drop | 70 | 70 |
| H – Chainstay Length | 510 | 510 |
| I – Fork Offset | 42 | 42 |
| J – Wheelbase | 1128 | 1138 |
| K – Frame Reach | 357 | 365 |
| L – Frame Stack | 616 | 621 |
| Fork Travel | 0 | 0 |
| Fork Height | 420 | 420 |
*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
