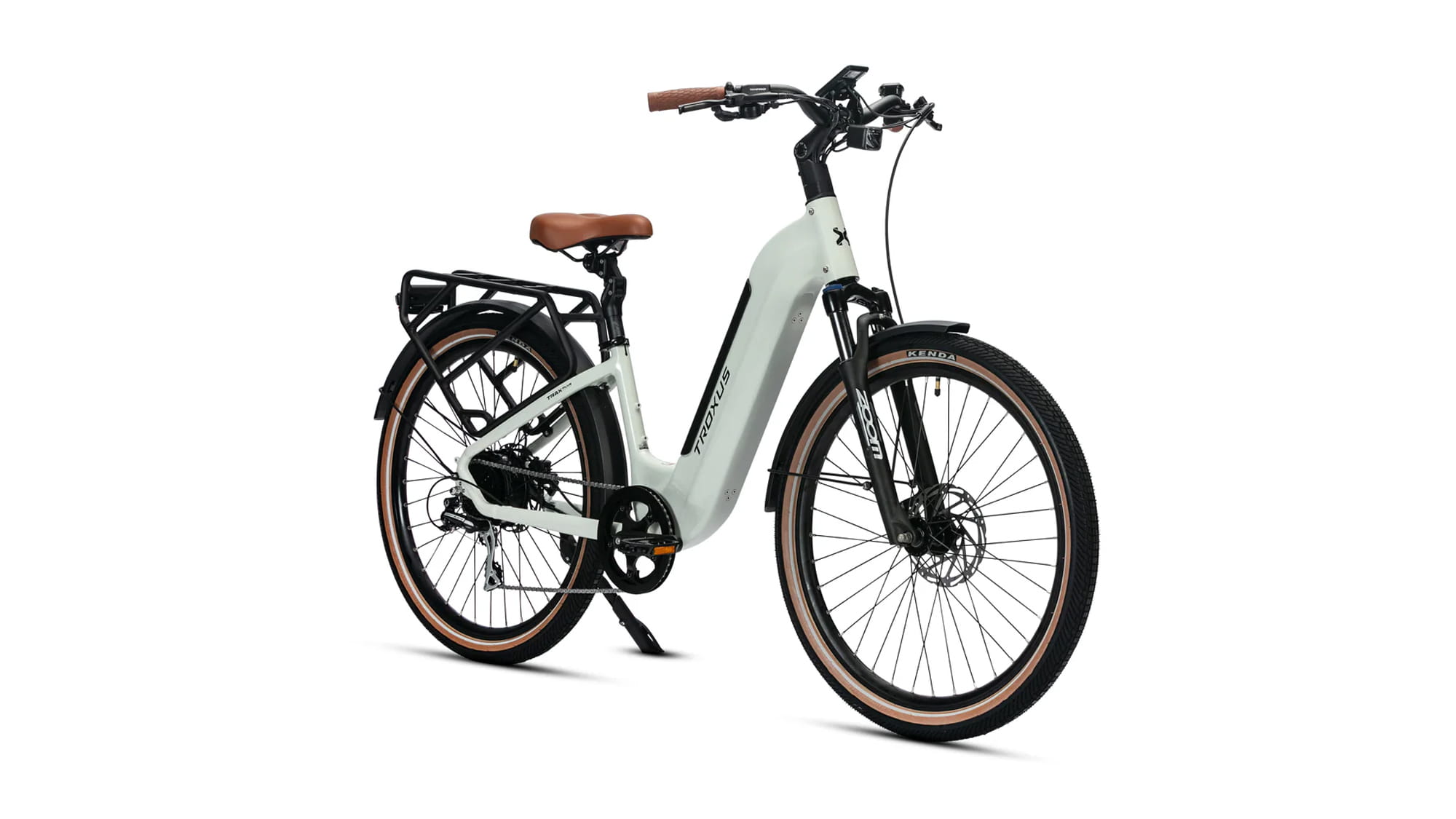

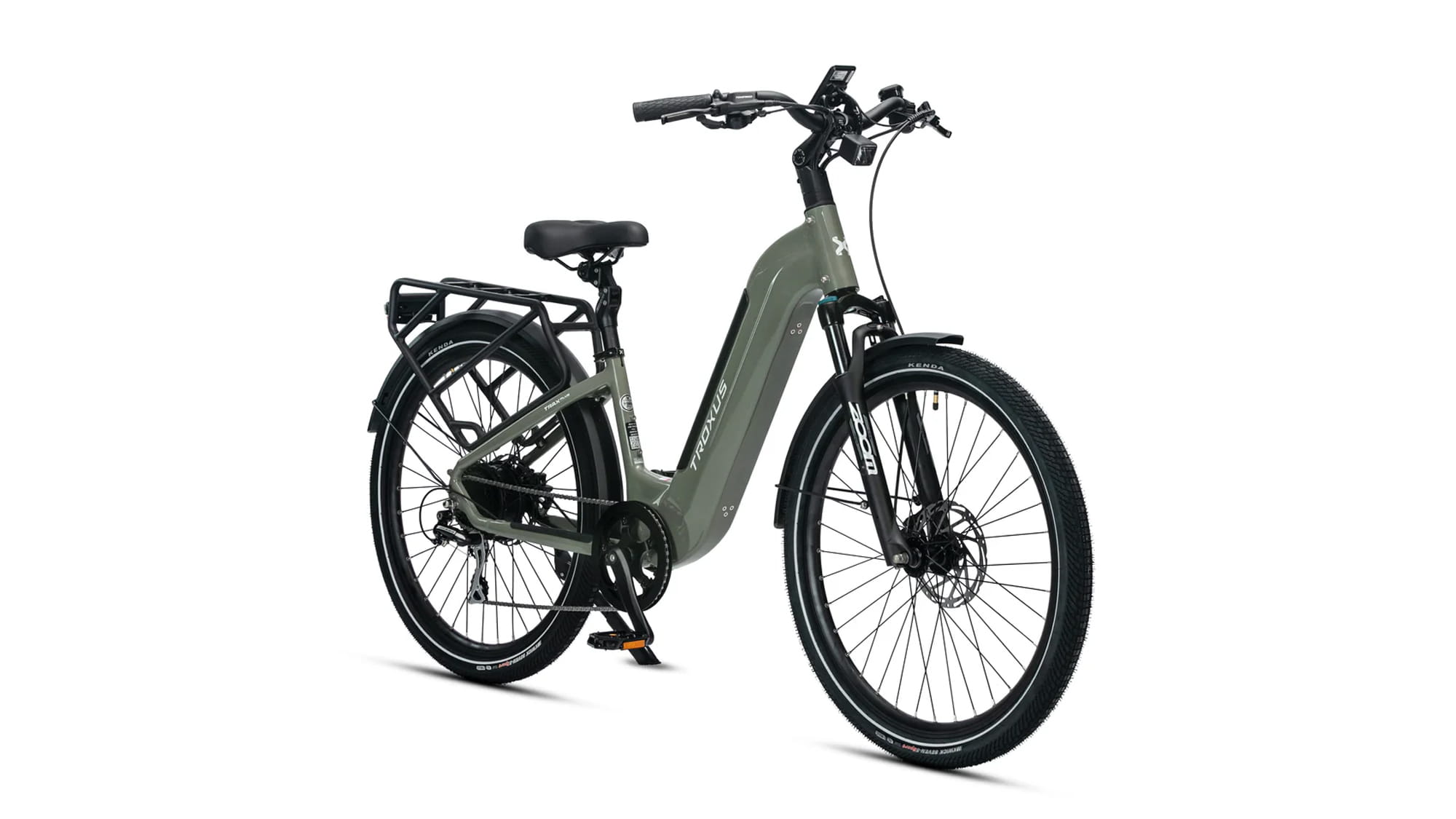

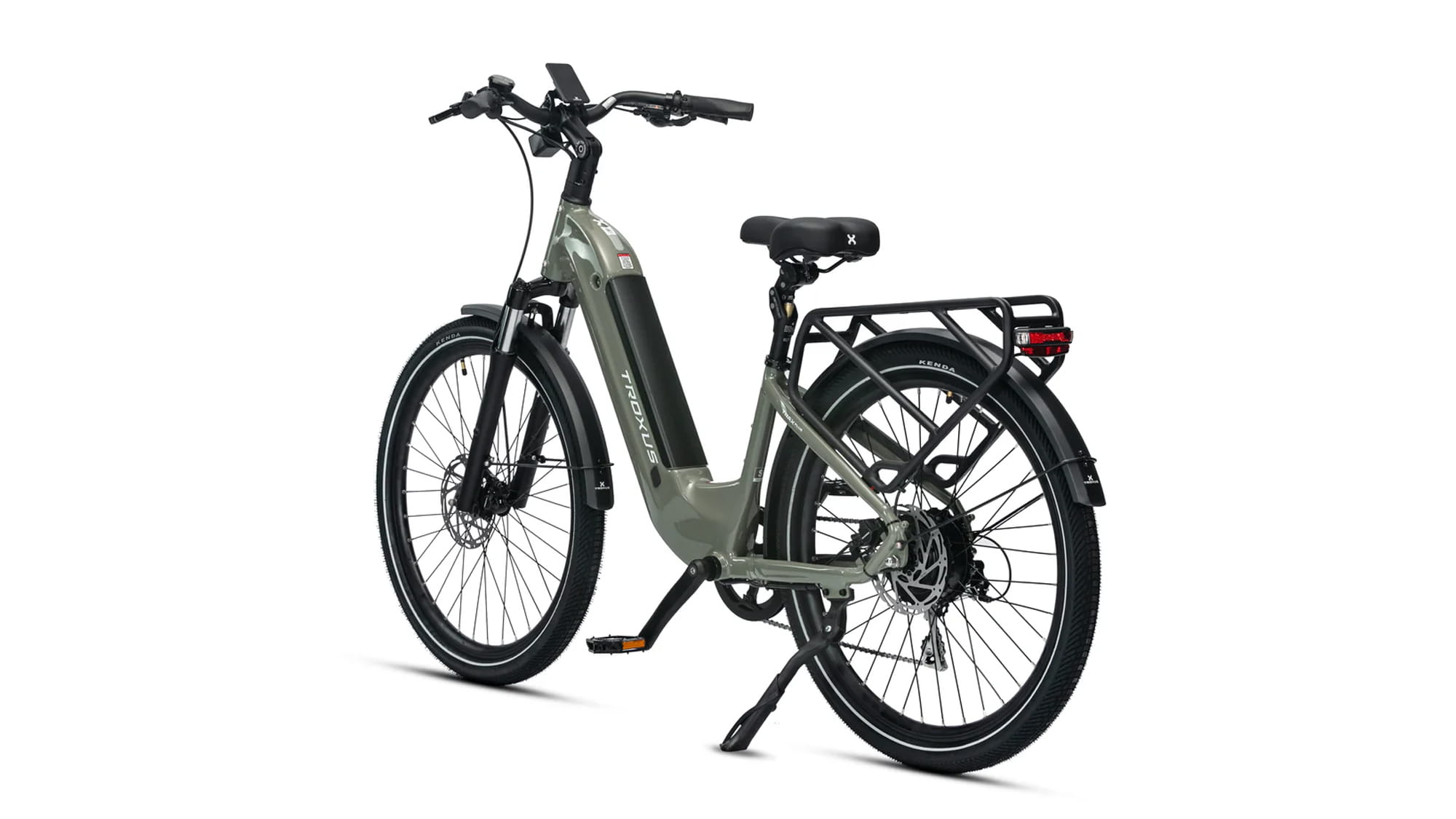

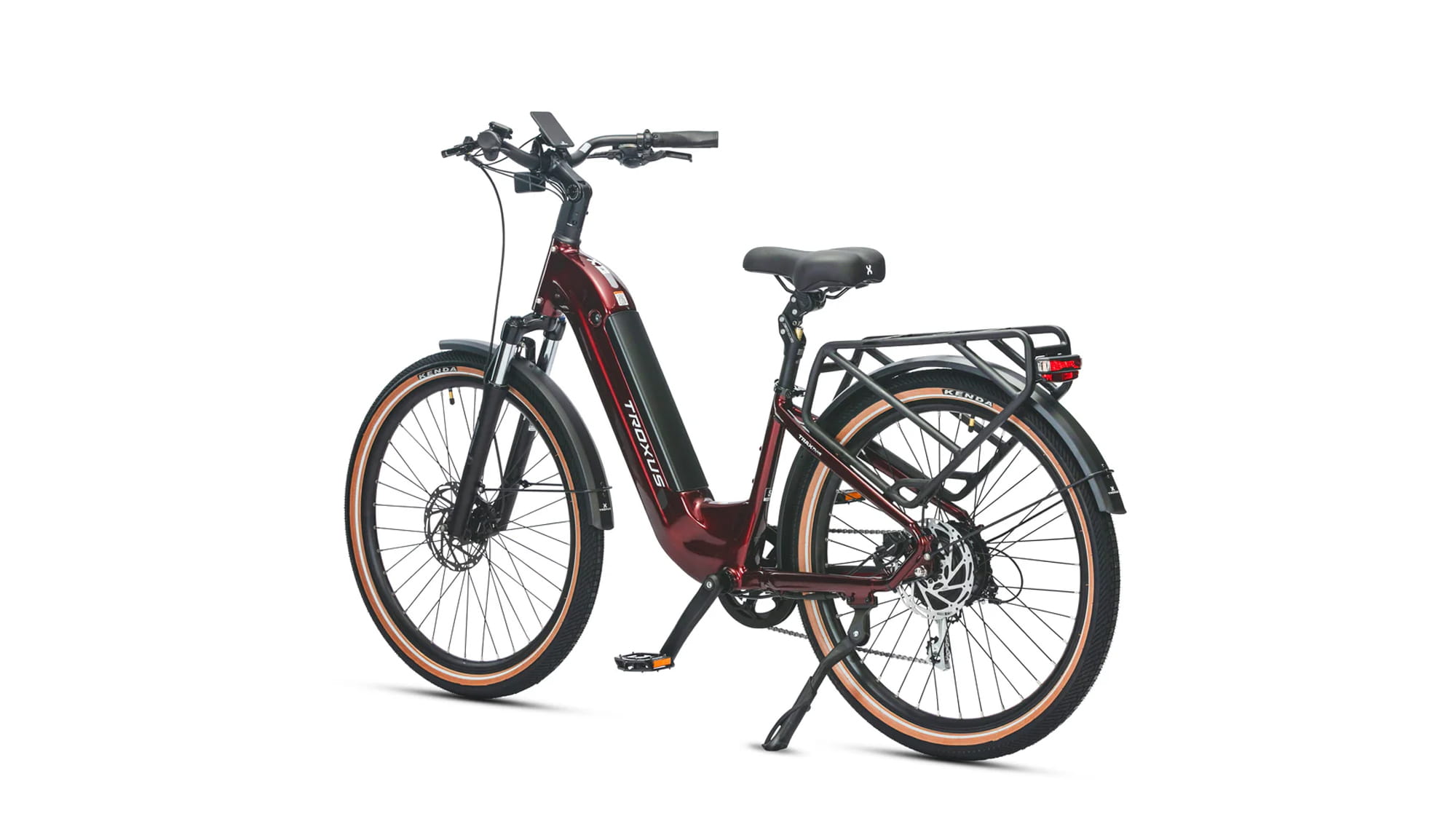

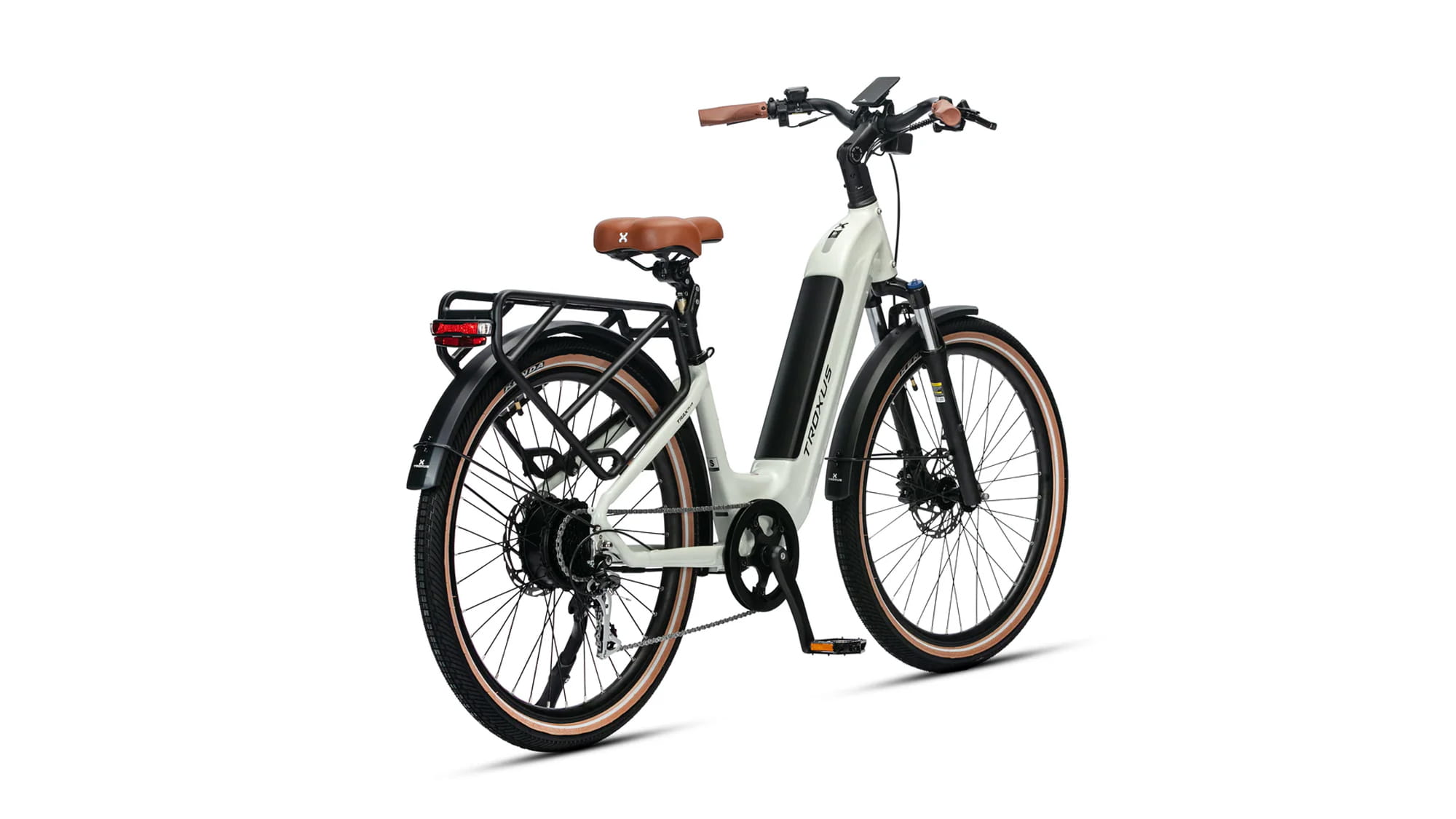

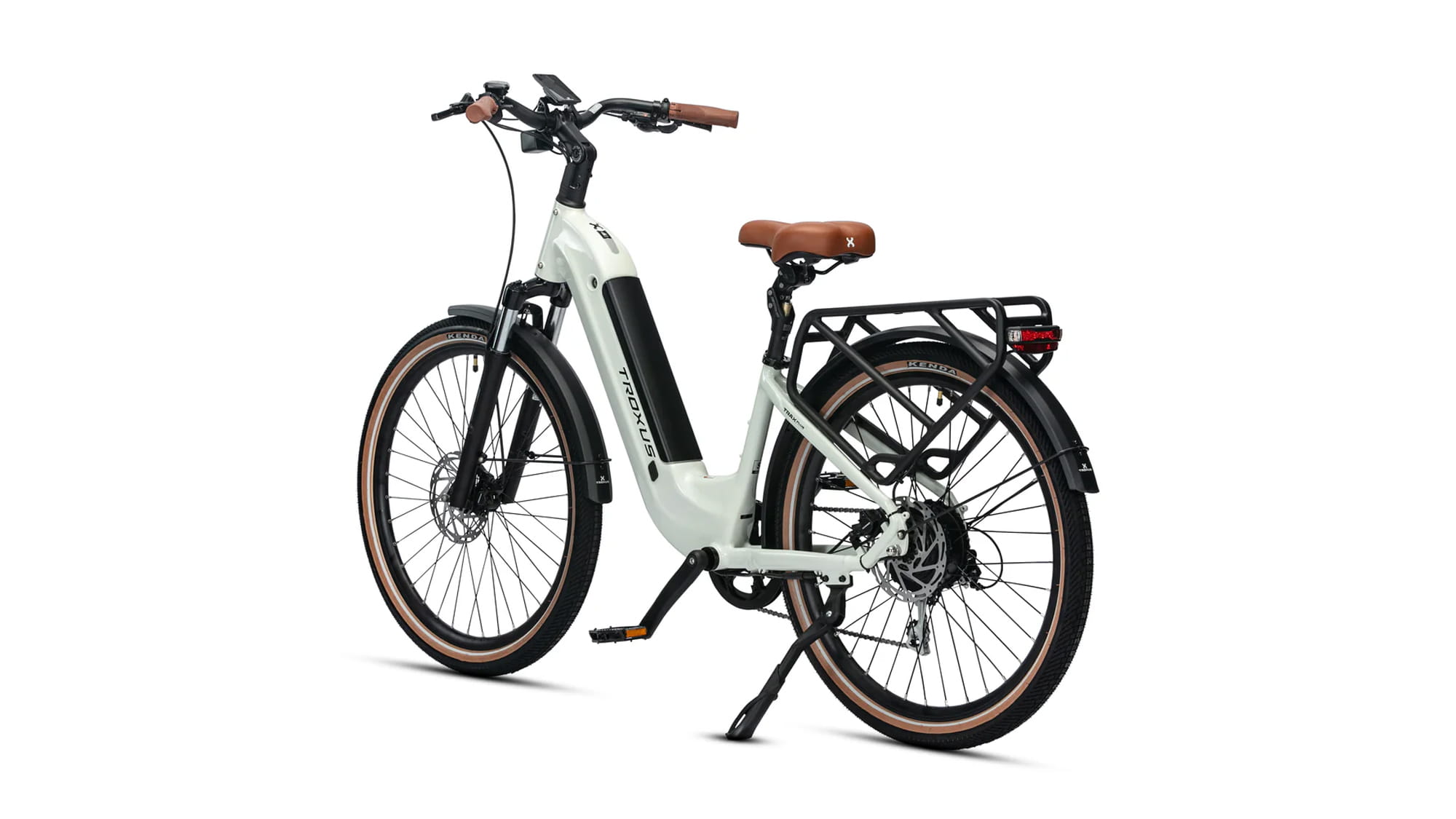

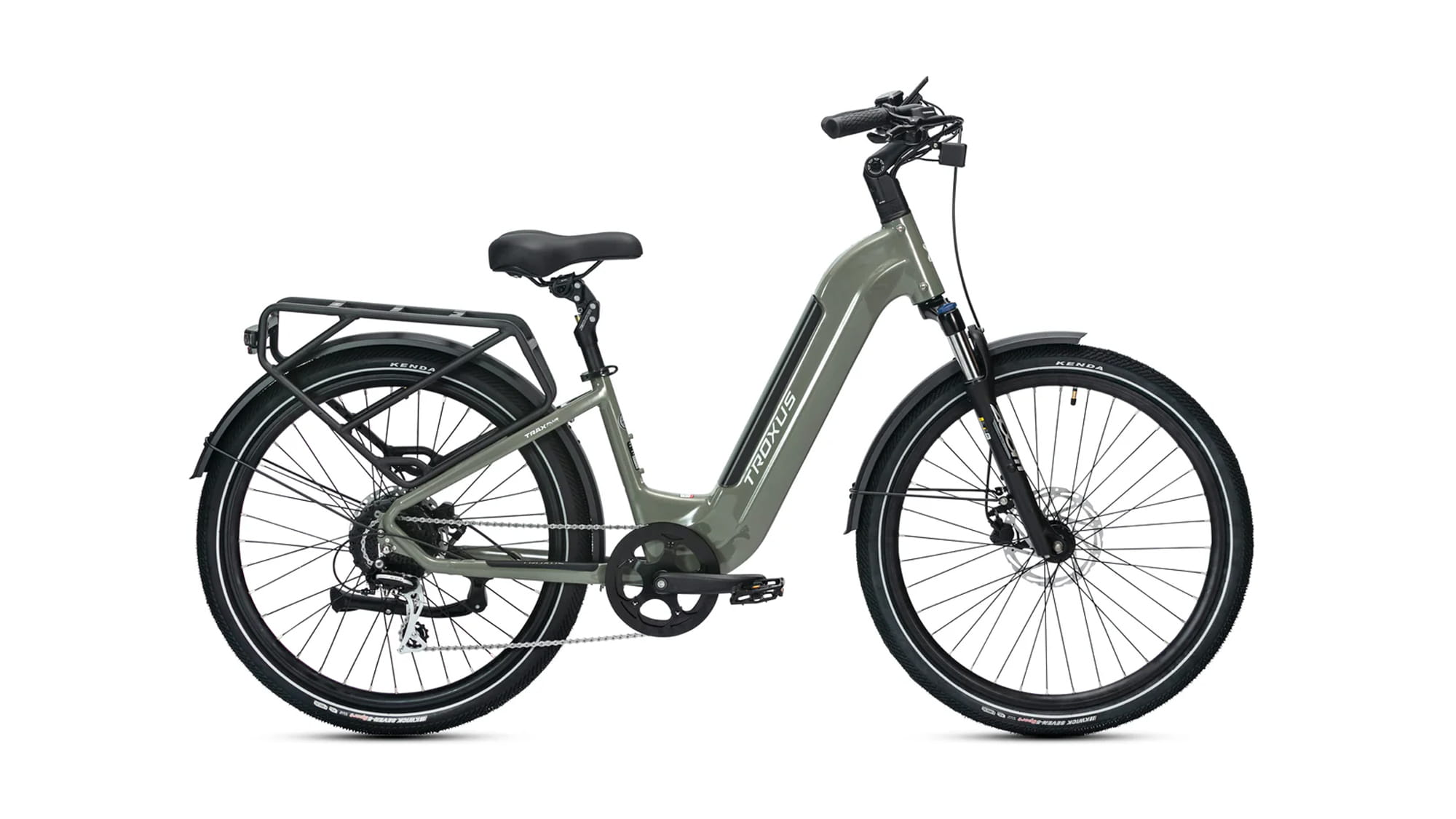

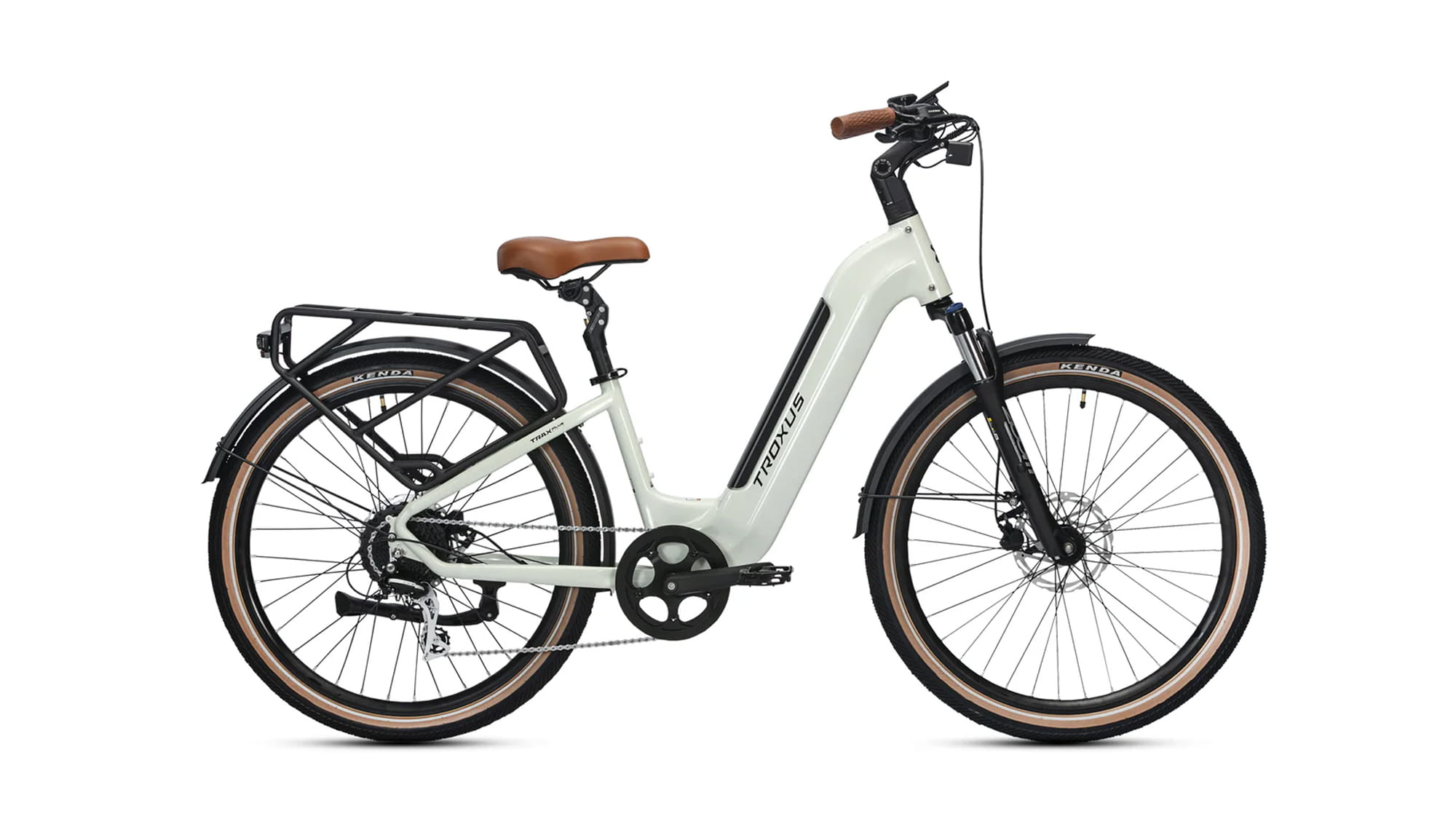

Trax Plus Commuter 500W/15Ah Plus
The Trax Plus Commuter 500W/15Ah Plus is built for riders who want stronger acceleration, longer range, and a premium commuting experience in a clean, modern package. Its powerful 500‑watt motor delivers confident takeoff and hill‑climbing performance, while the upgraded 15Ah battery provides extended mileage for daily rides, errands, and weekend exploring. With its comfortable geometry, smooth power delivery, and commuter‑ready features, the Trax Plus PLUS offers a refined, efficient ride that makes every trip feel effortless.
Max Speed
Per Charge
Hub Motor
SAMSUNG® Cells
Payload Capacity
Switchable Torque And Cadence Sensor Modes
E-SYSTEM
- Motor: Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
- Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells

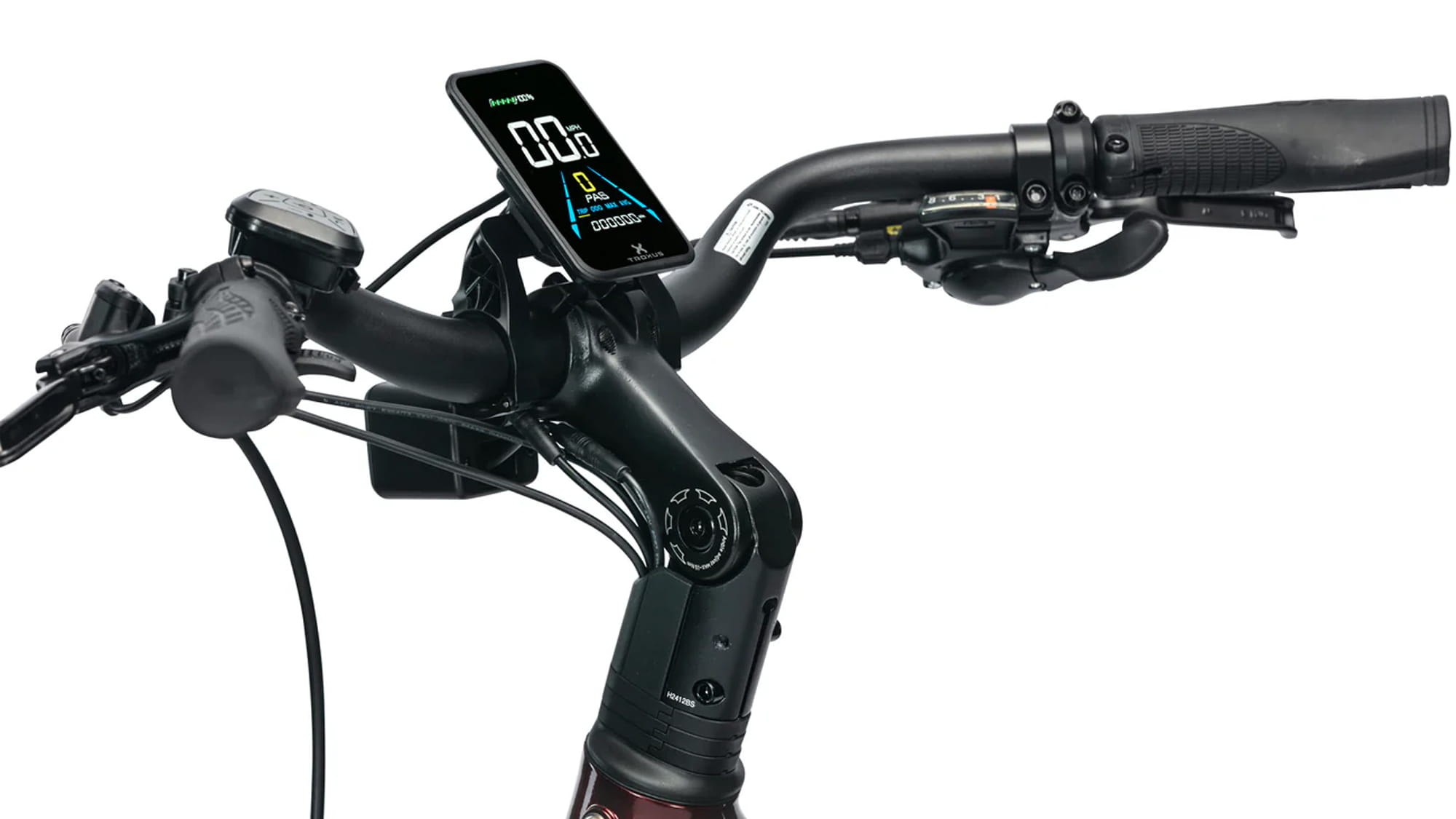

- Display: Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
- Throttle: Thumb Throttle on Handlebar
- Sensor: Switchable Torque And Cadence Sensor Modes
- Pedal Assist: 0~5 Level Pedal Assist
- Charger: 2A / 100-240V Input / 54.6V Output
- Lights: 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
- Controller: 48Vx18A/12V
COMPONENTS
- Frame: Hydroformed Aluminum Frame
- Fork: Zoom® Front Suspension Fork, 65mm Travel
- Chain: KMC® 1/2″x3/32″
- Crankset: Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm

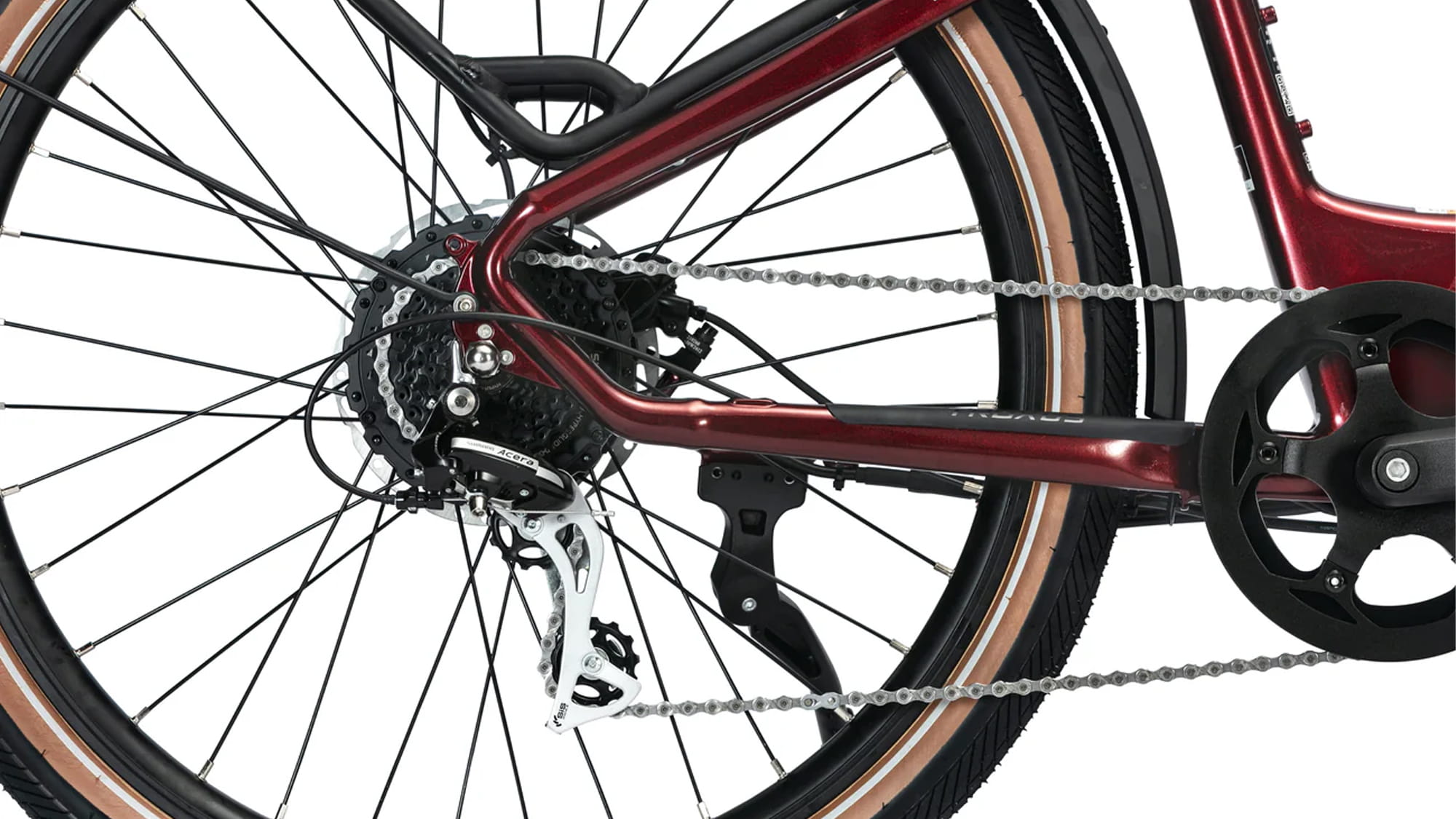

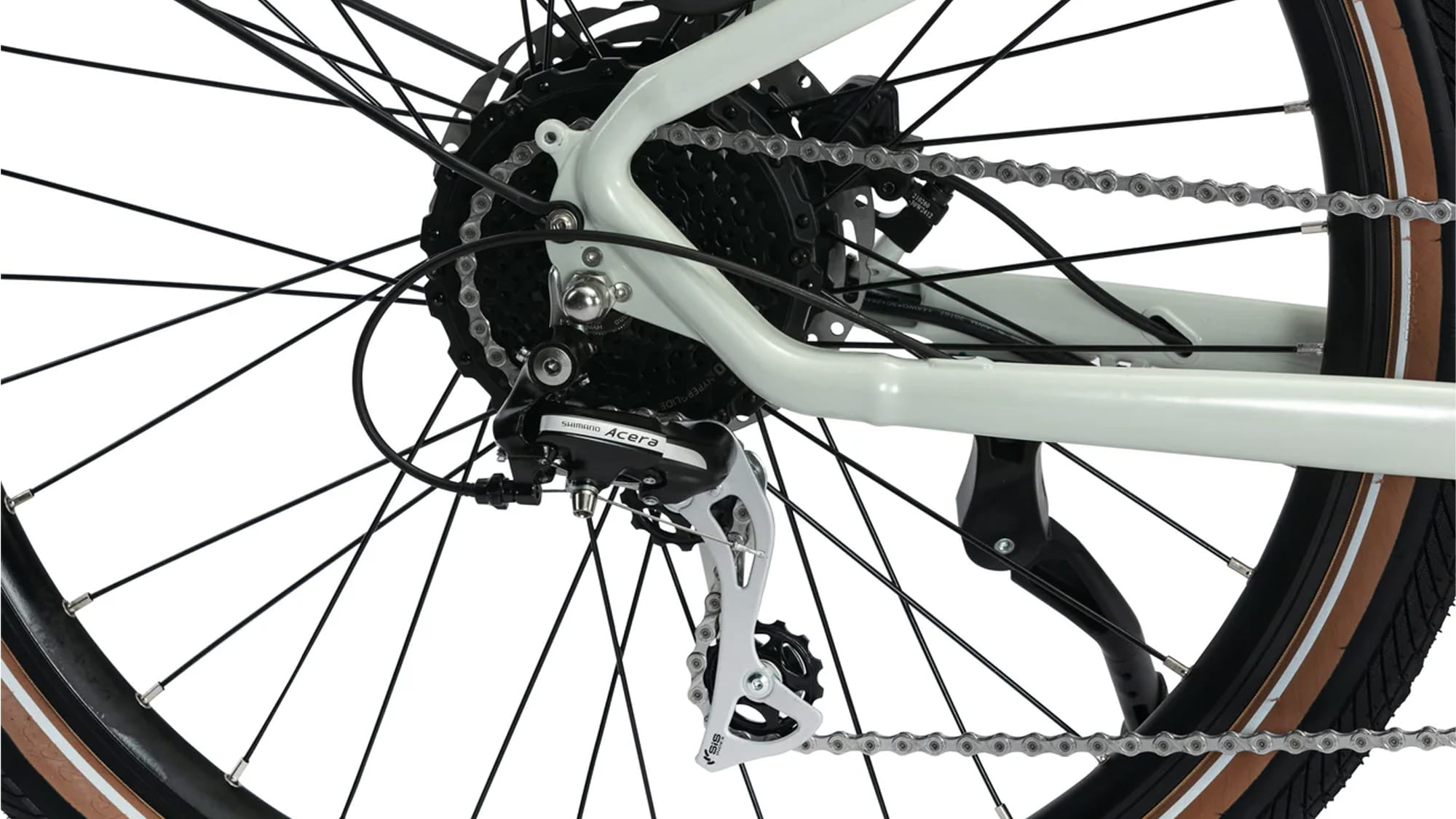

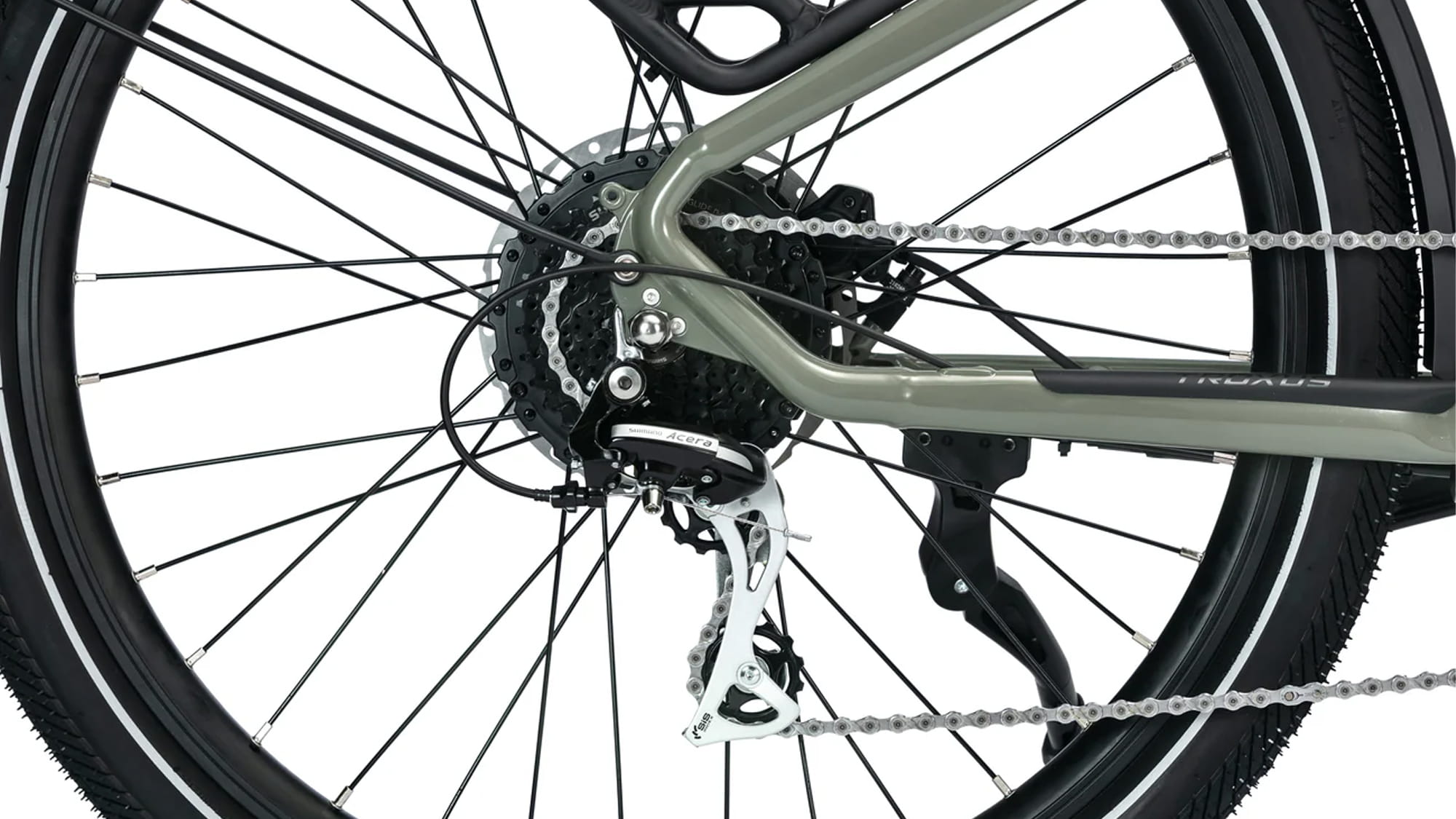

- Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
- Cassette: Shimano 8-Speed, 12-32T
- Shifter: Shimano® 8-Speed
- Bottom Bracket Set: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
- Tires: KENDA® 27.5″x2.2″, w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
- Front Hub: Alloy, 36H, 100mm, 3/8″Axle w/ Nuts

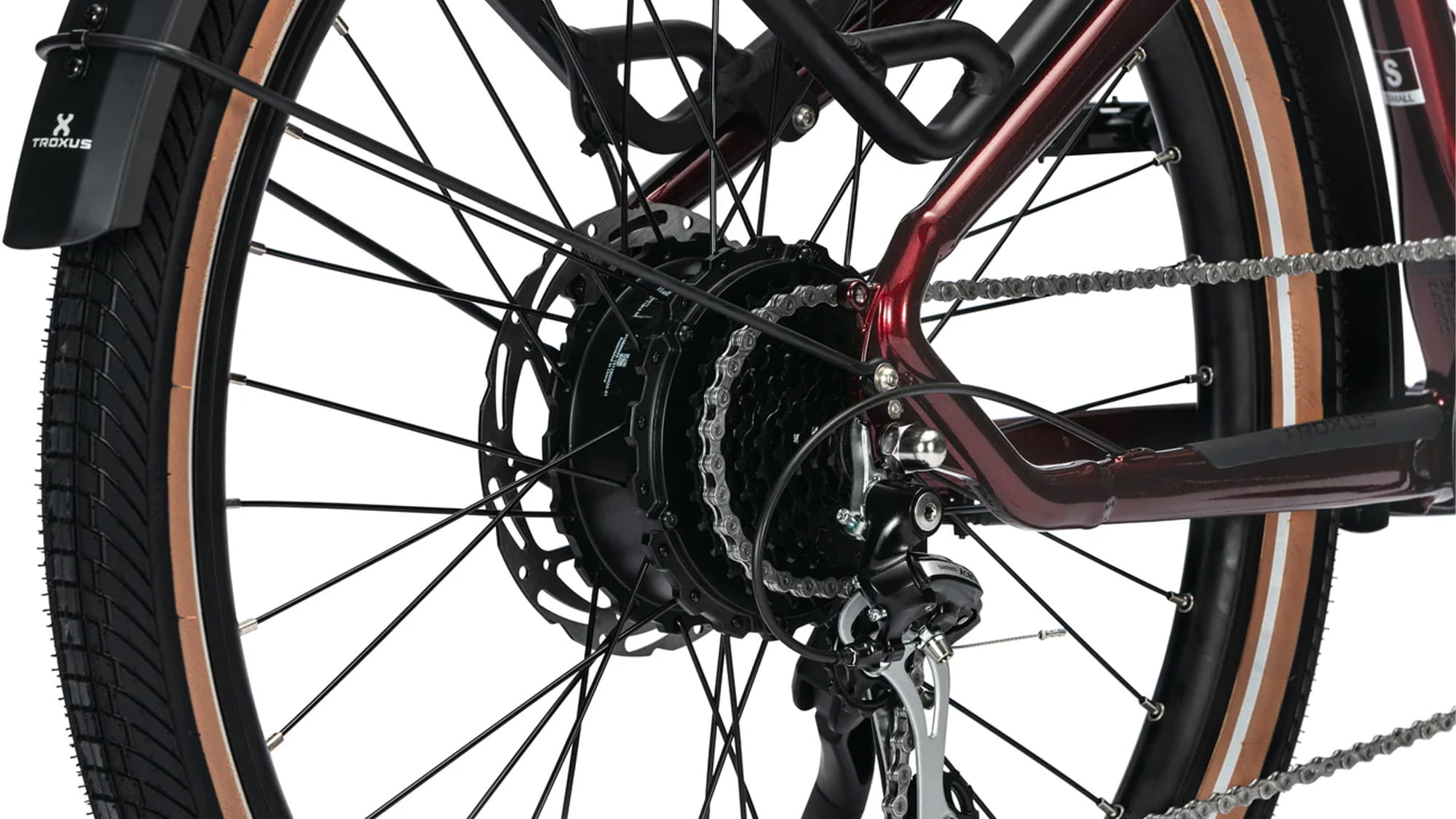

- Rear Hub: 48V 500W/ 28 MPH. 65Nm
- Rims: Alloy Single Wall Front / Double Wall Rear, 36H, 27.5″x2.2″, w/ Eyelets
- Spokes: Stainless 13G. Front / 12G. Rear
- Brakes: Tektro® Hydraulic, w/ Brake Sensors

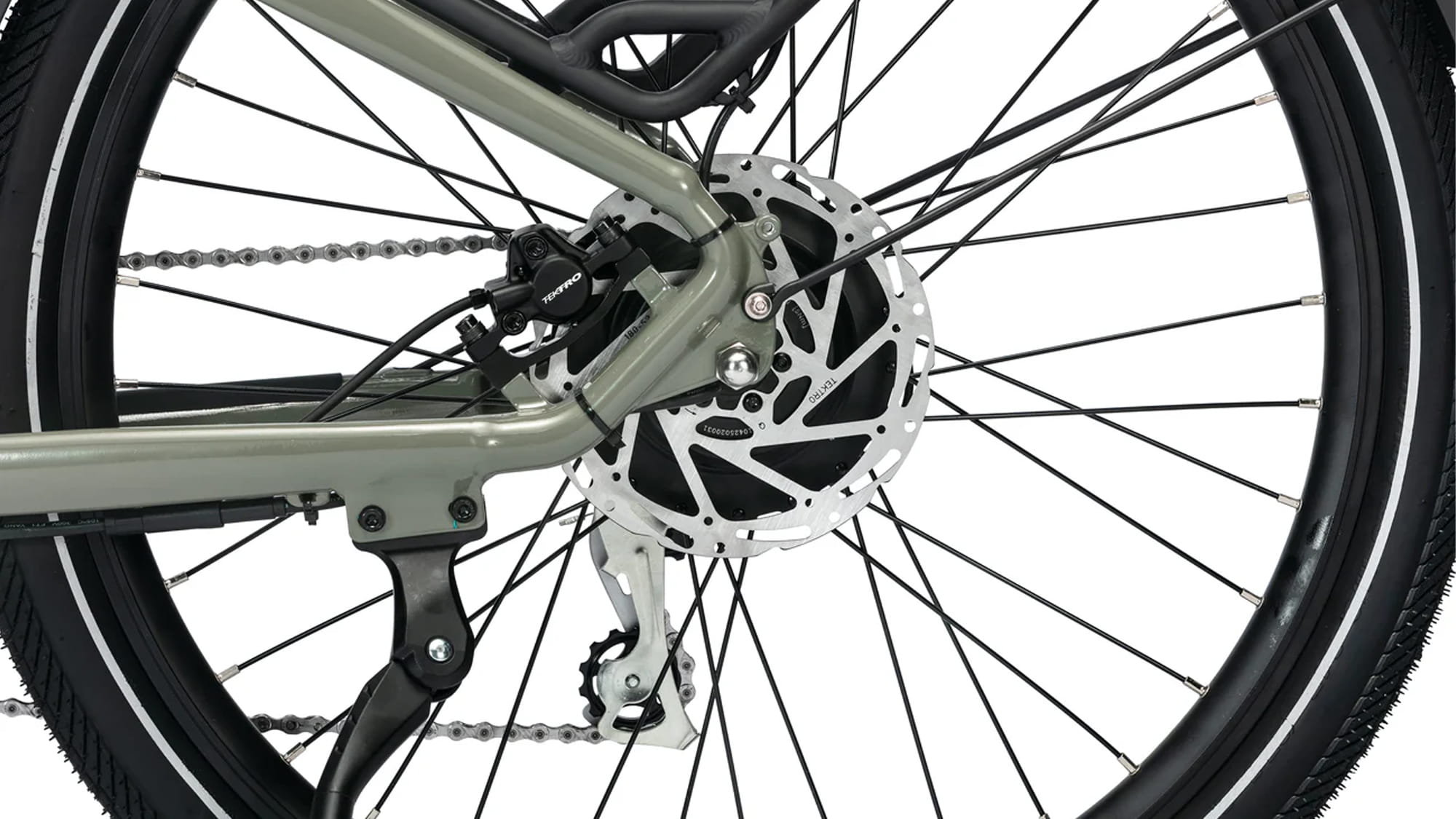

- Rotors: 180mm / 180mm

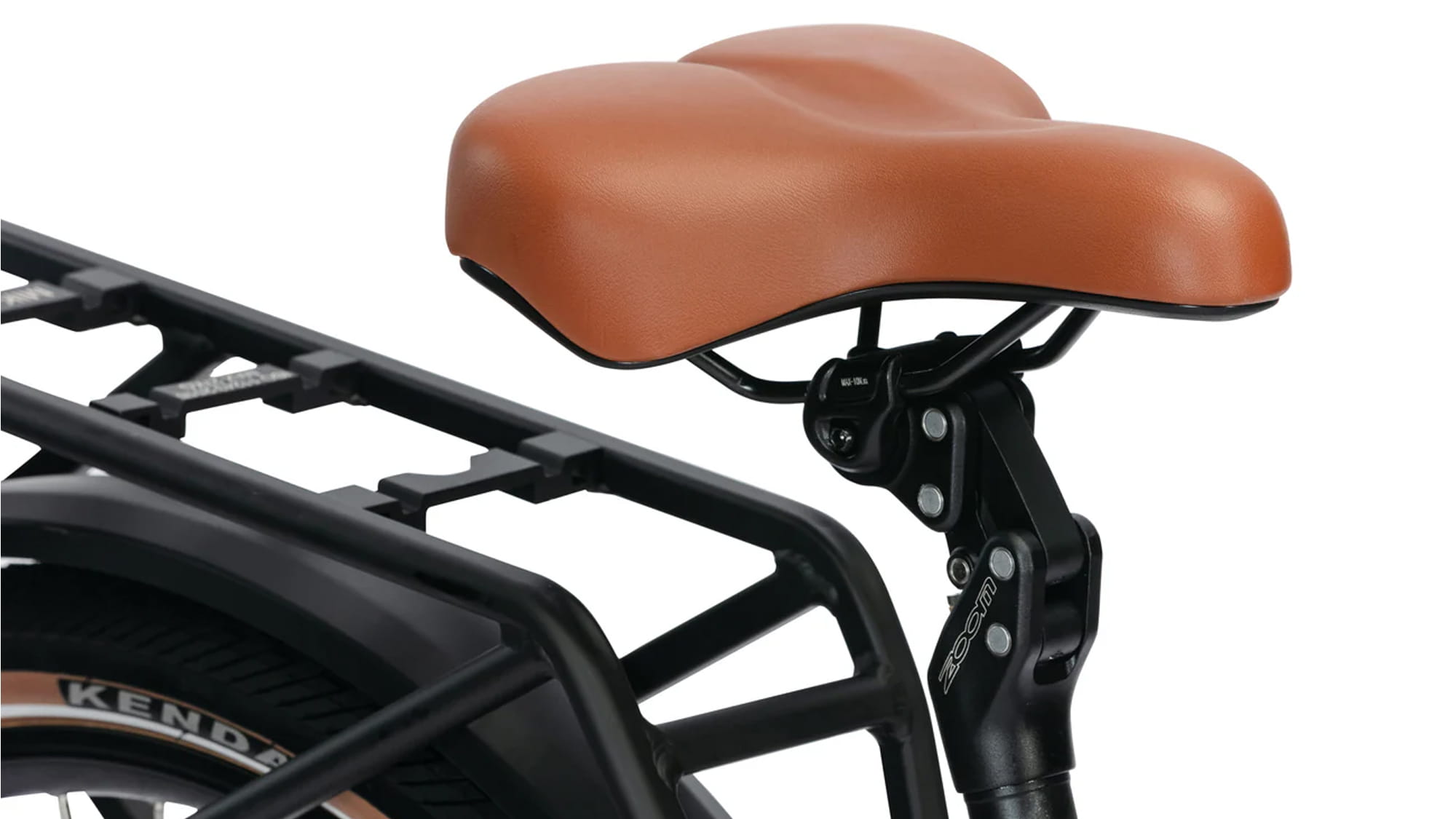

- Saddle: DDK DE-430 Comfort / 200mm Wide
- Seat Post: Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable
- Seat-Post Clamp: Alloy, 35mm w/ Quick Release

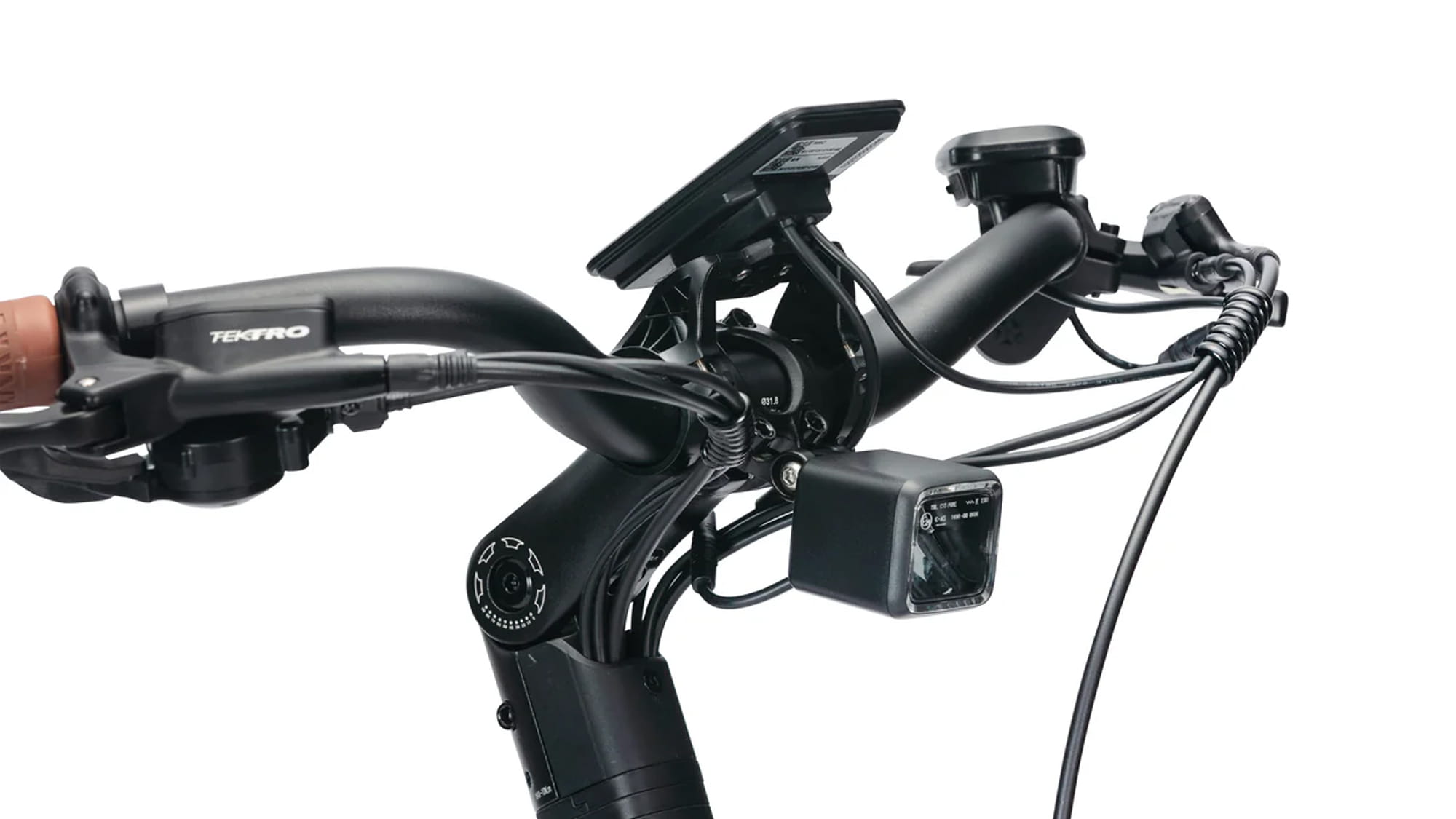

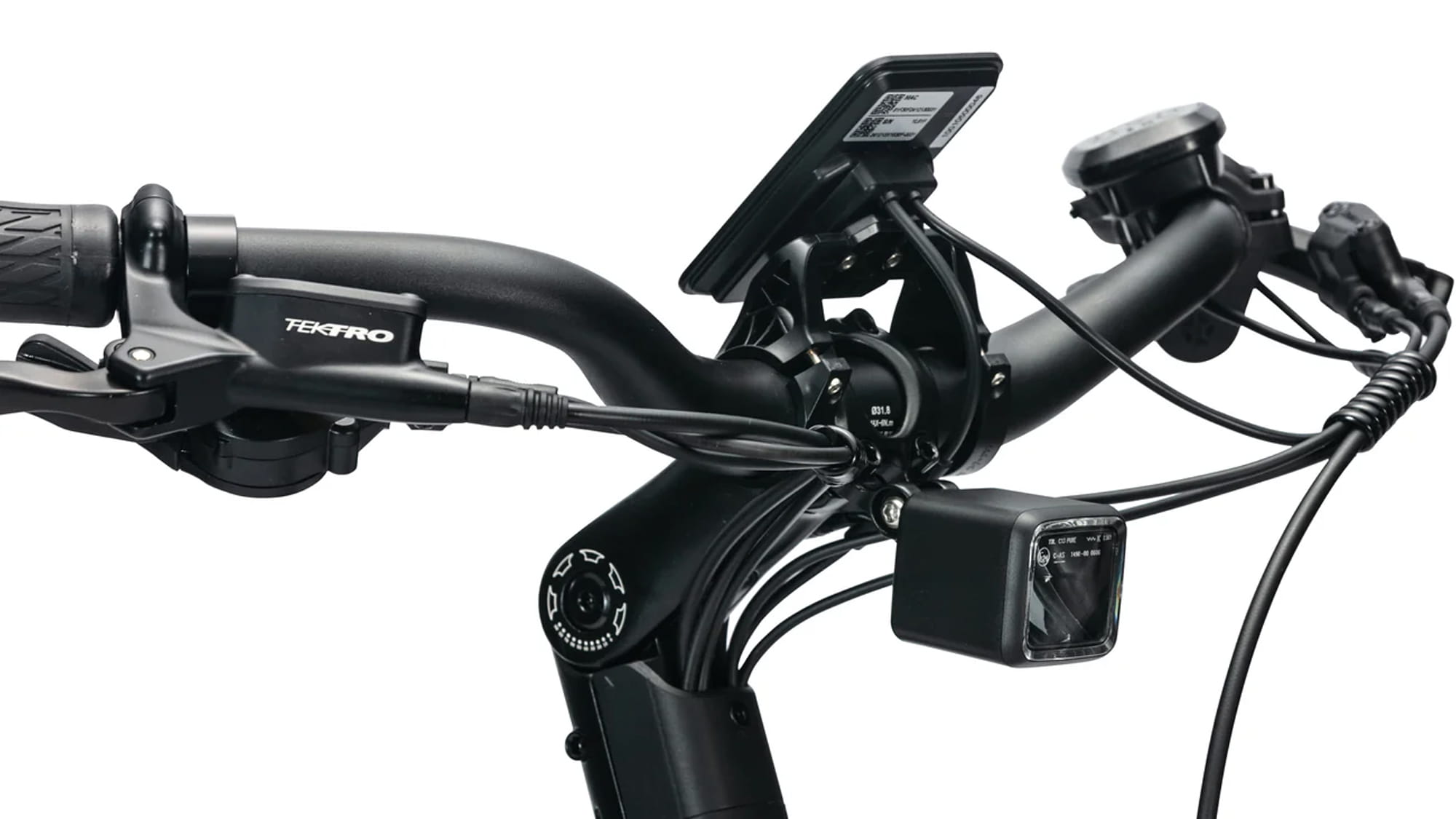

- Stem: Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
- Handlebar: Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
- Grips: Ergonomic Comfort
- Pedals: Alloy, 9/16″axles, w/ BS reflectors
- Headset: Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
SPEED, RANGE, WEIGHT & SUPPORT
- Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
- Range: Up To 70 Miles Per Charge
- Weight Limit: Maximum Load: 383 lbs
- Net Weight: 68.5 lbs

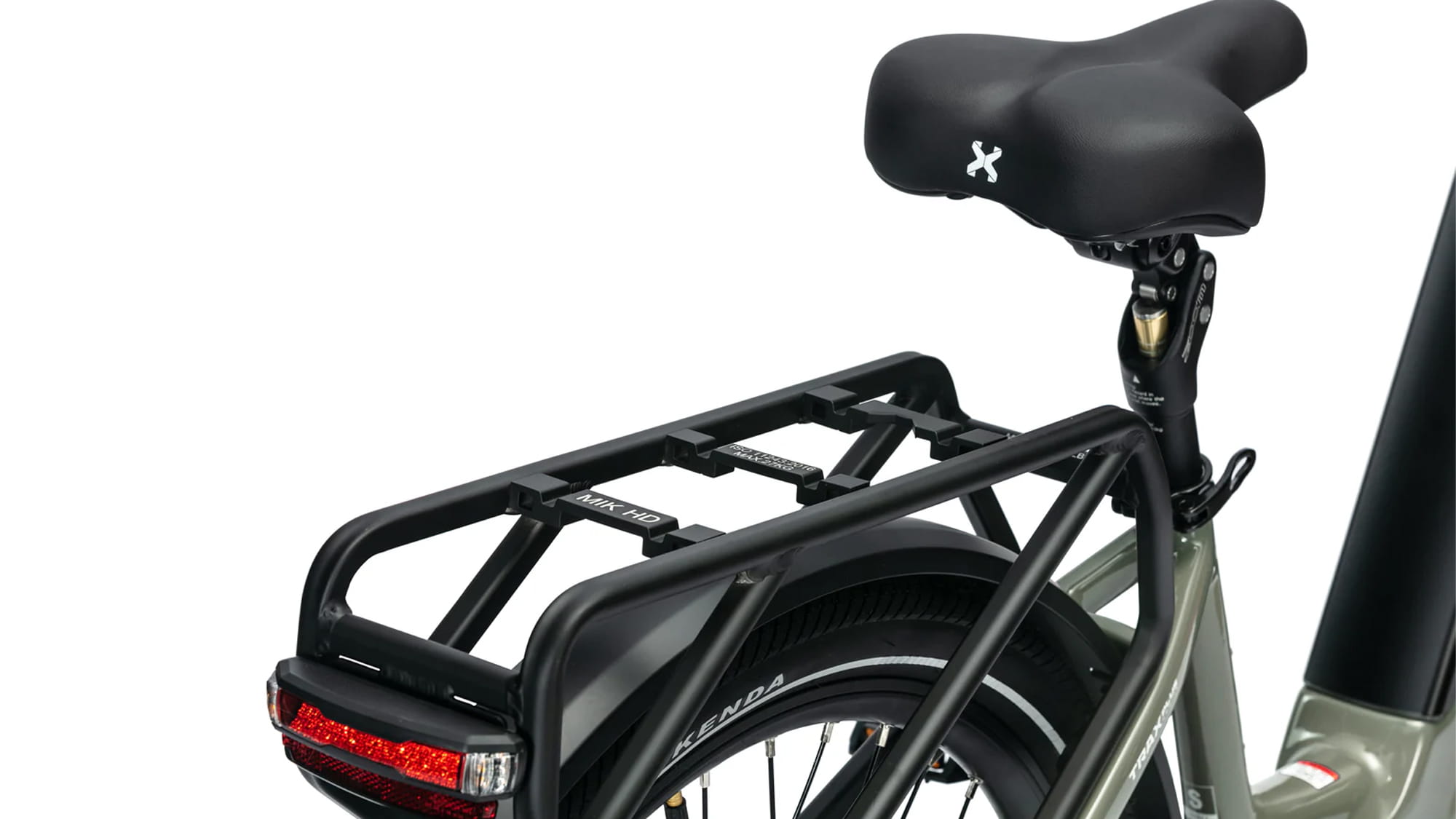

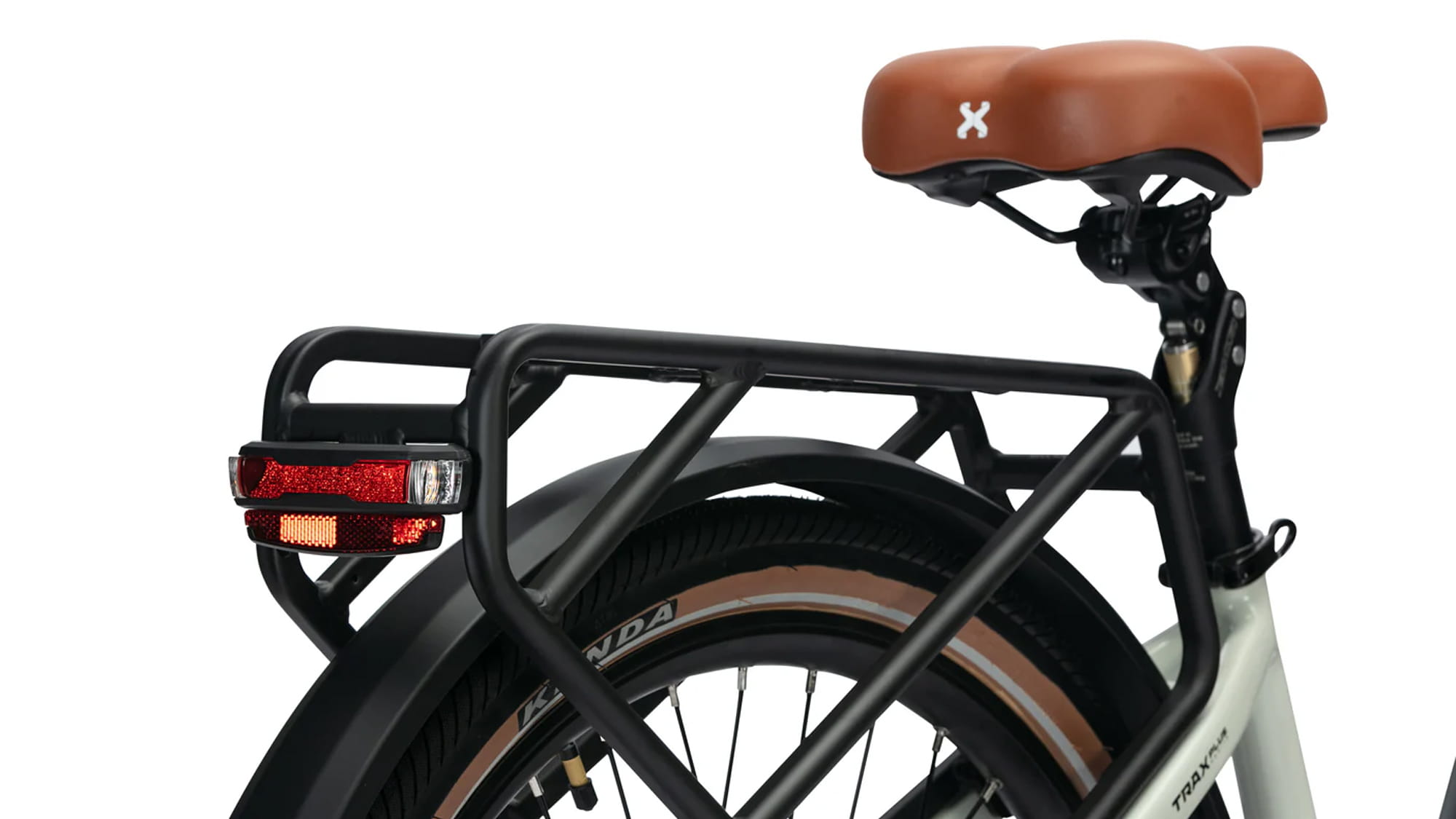

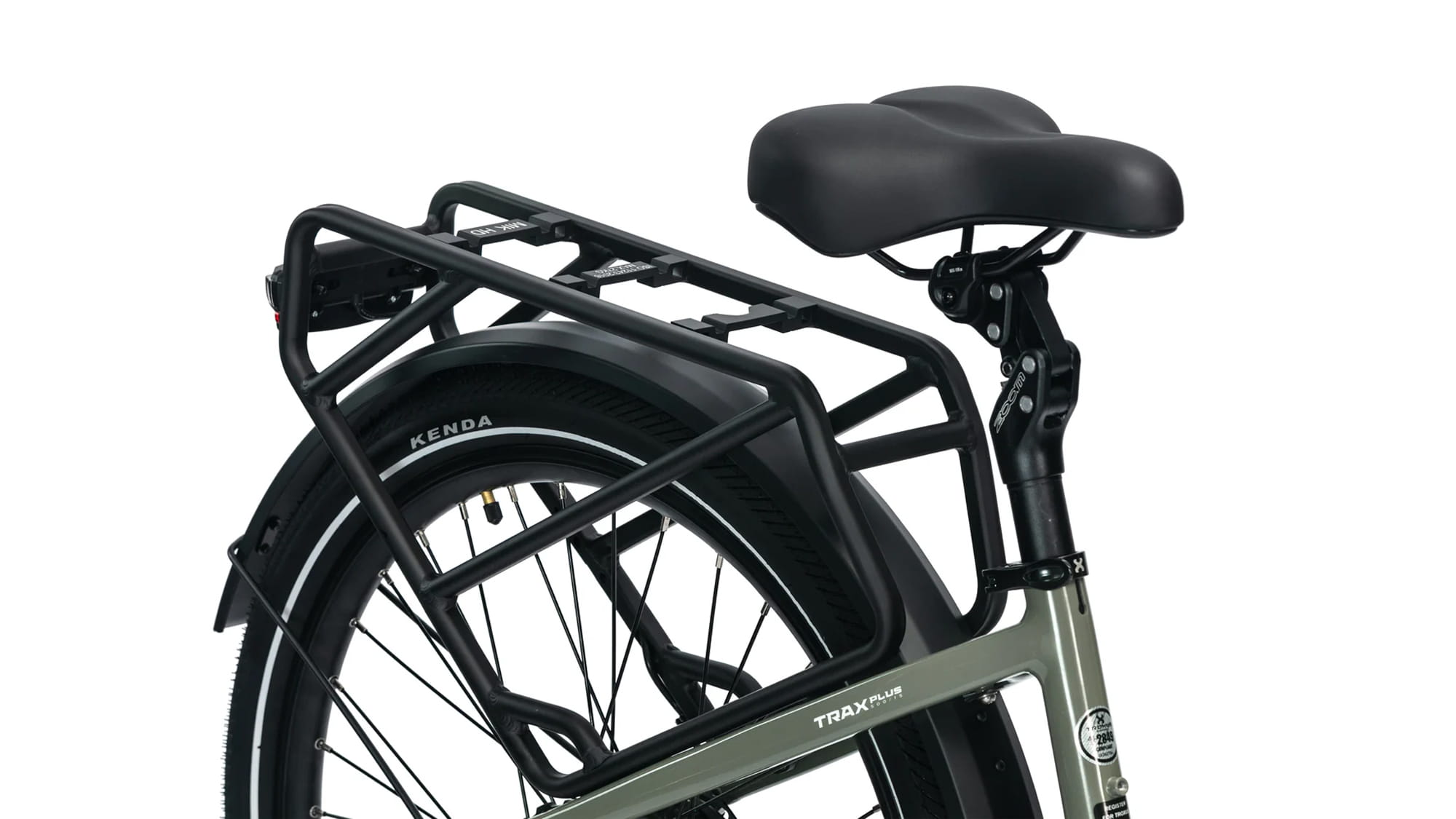

- Rack: Alloy Rear Model/ MIK-Compatible Rear Rack
- Fenders: Alloy, 27.5″, Full coverage
- Kickstand: Adjustable Side Kickstand
- Packaged: Above All Accessories Are Included.
RECOMMENDED HEIGHT
Small: 5’0″ – 5’7″ (153 – 171 cms)
Medium: 5’6″ – 6’2″ (168 – 185 cms)
GEOMETRY
*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
