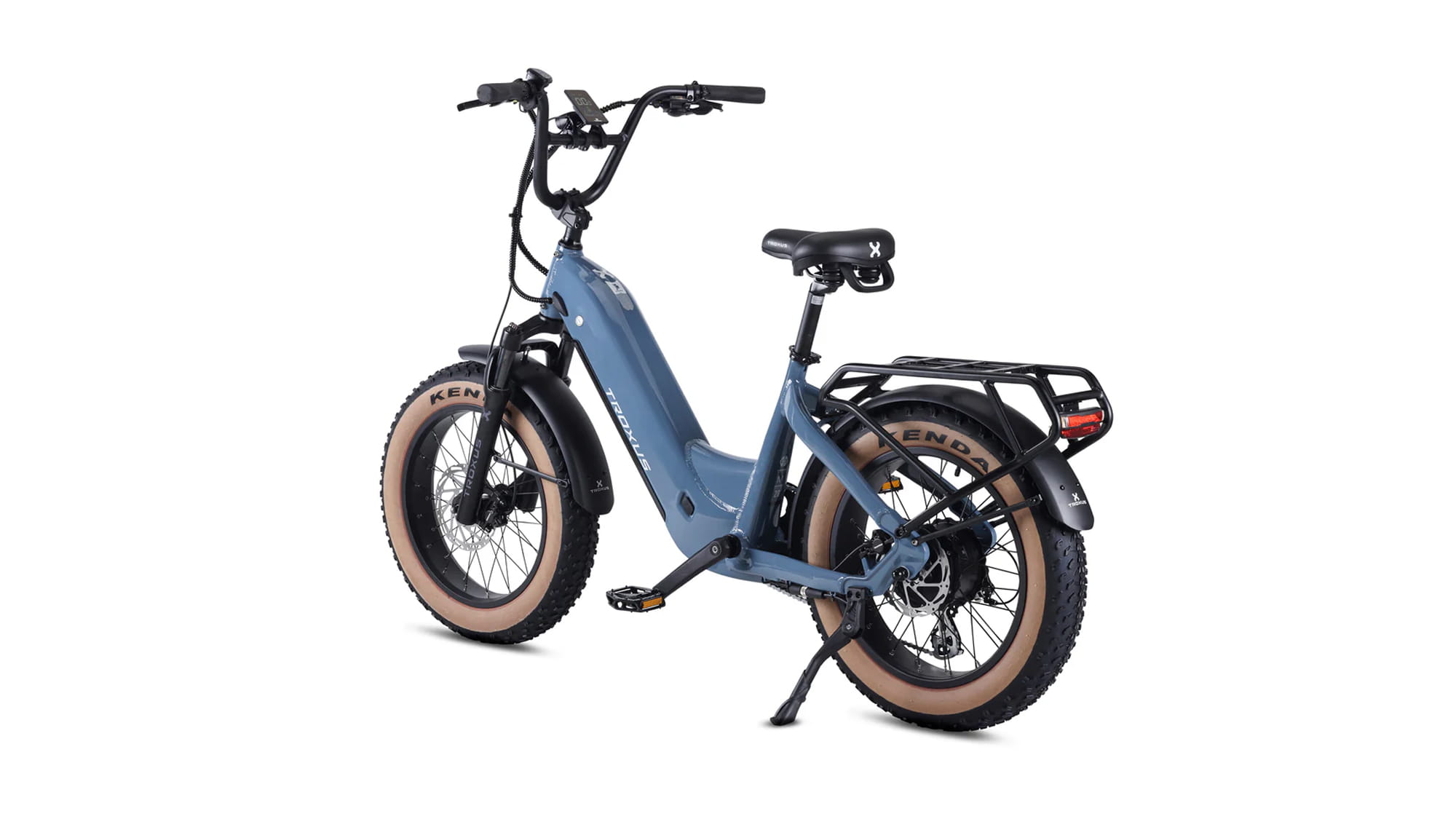

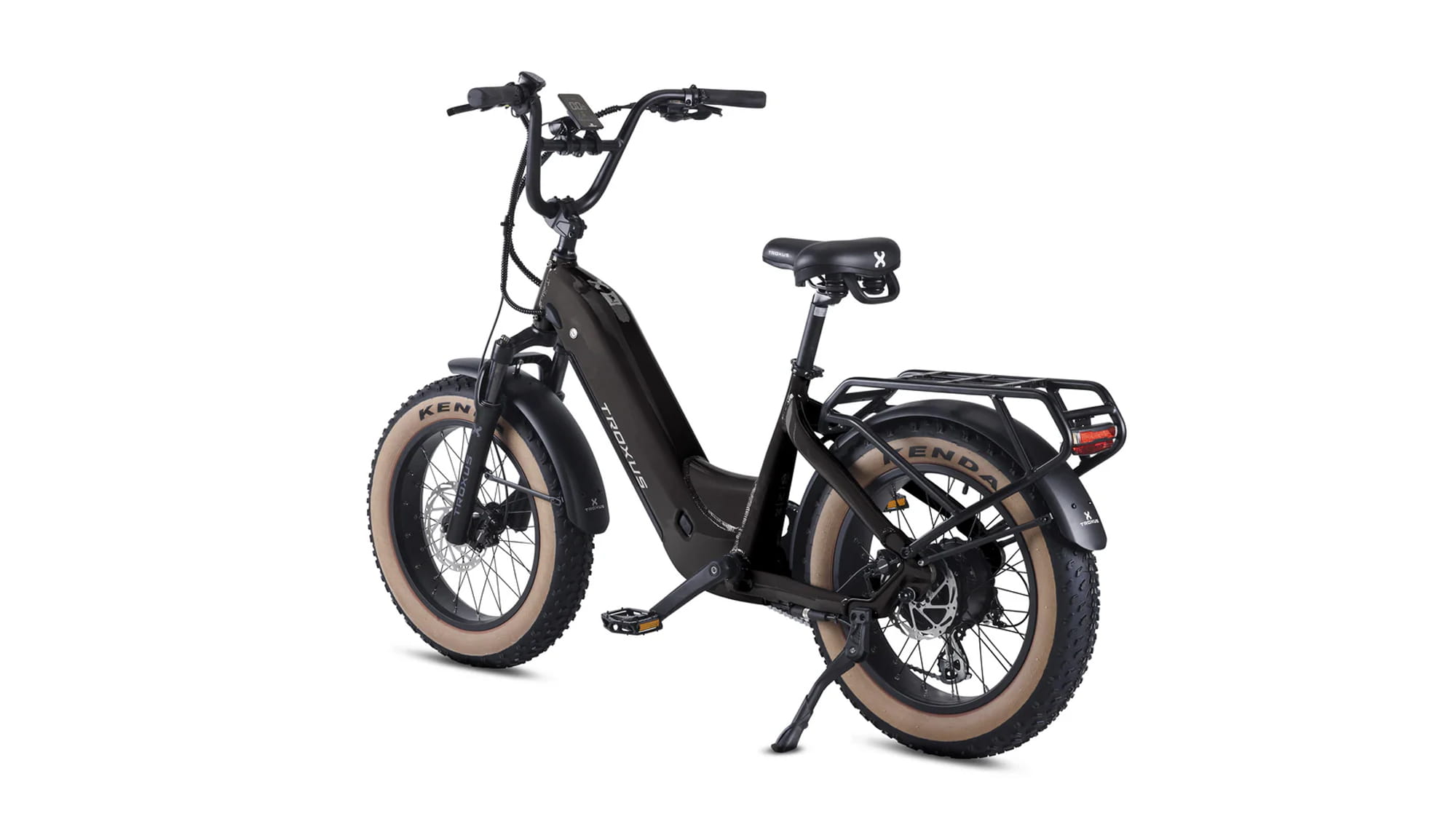

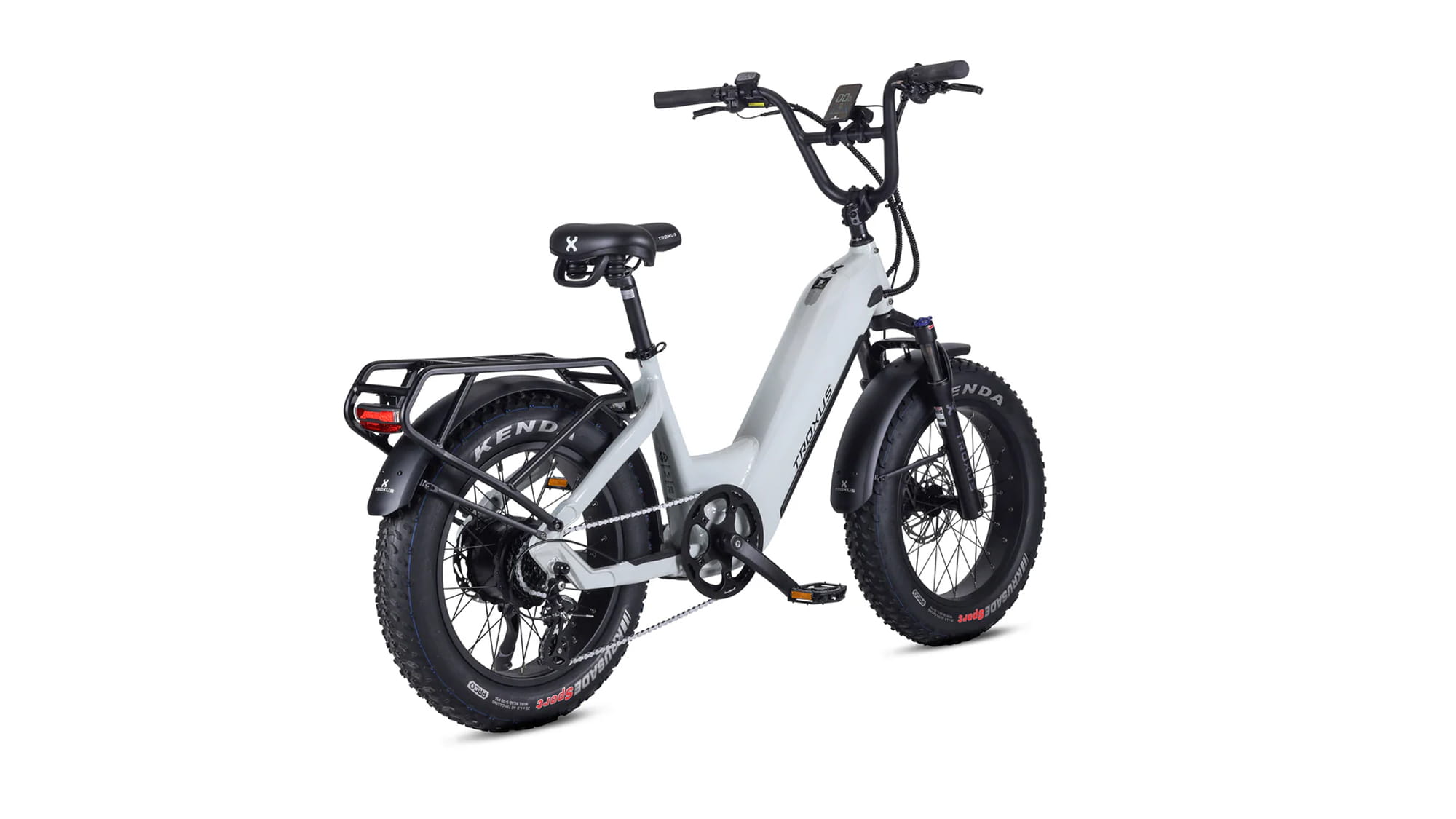

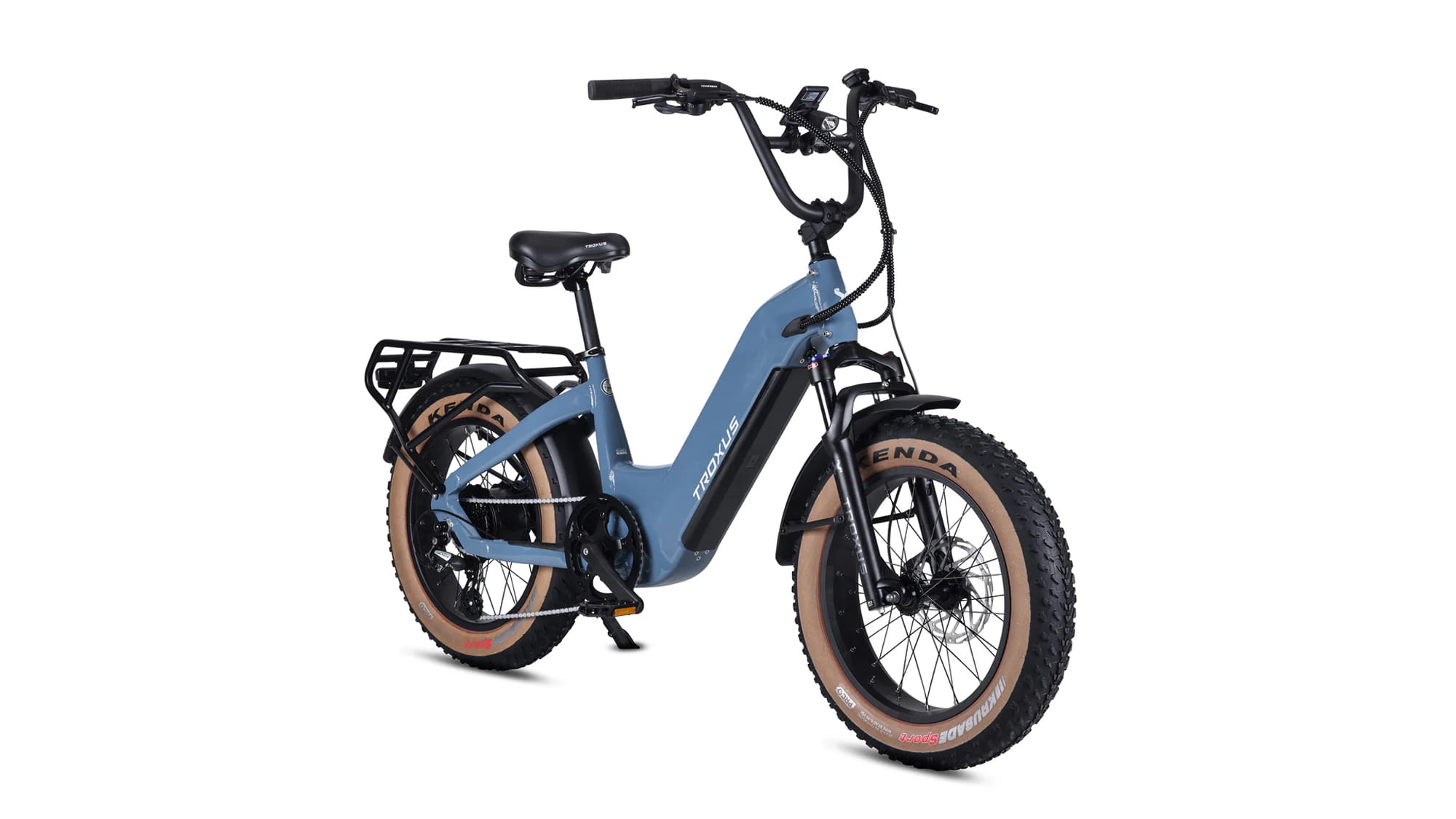

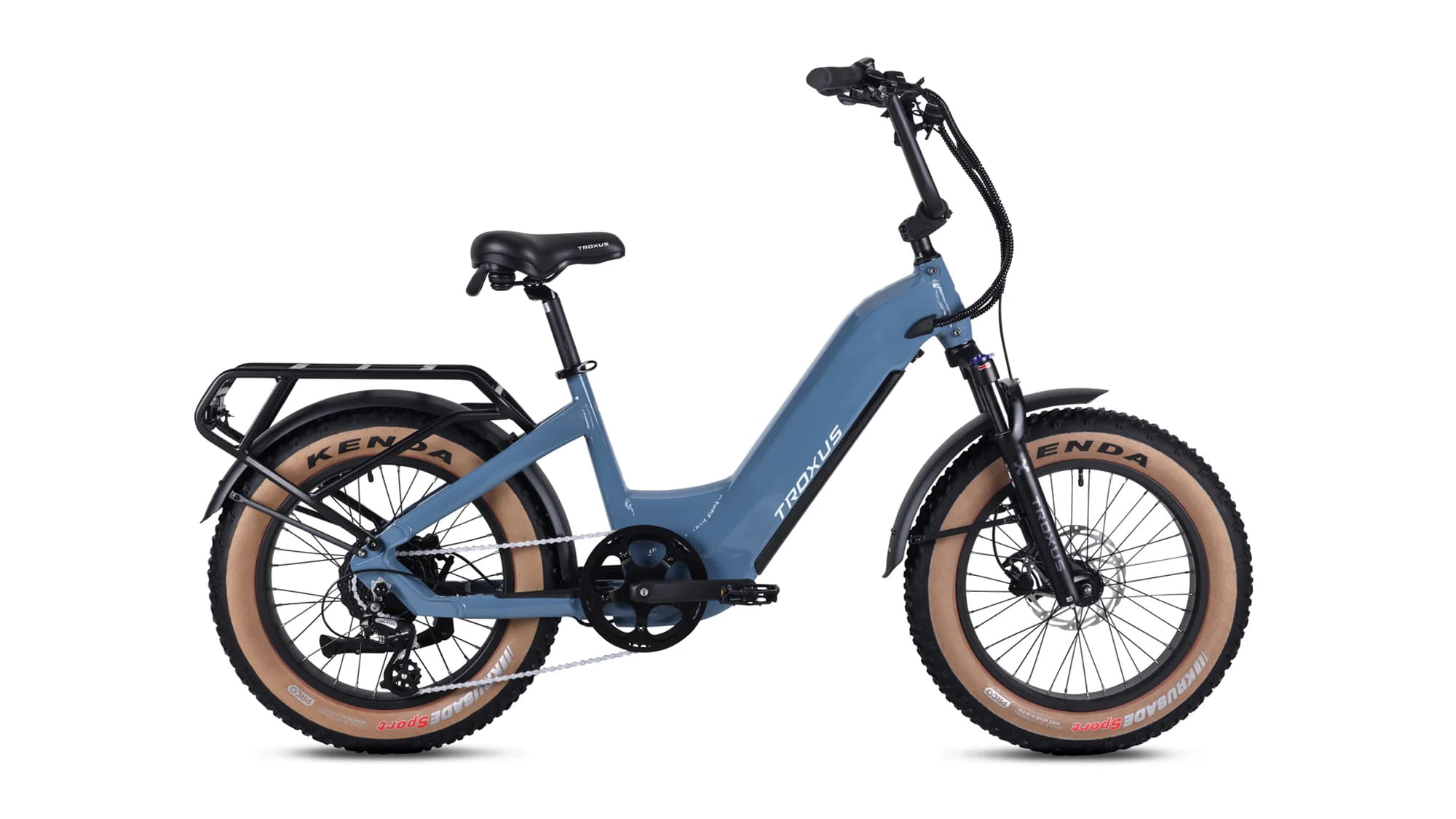

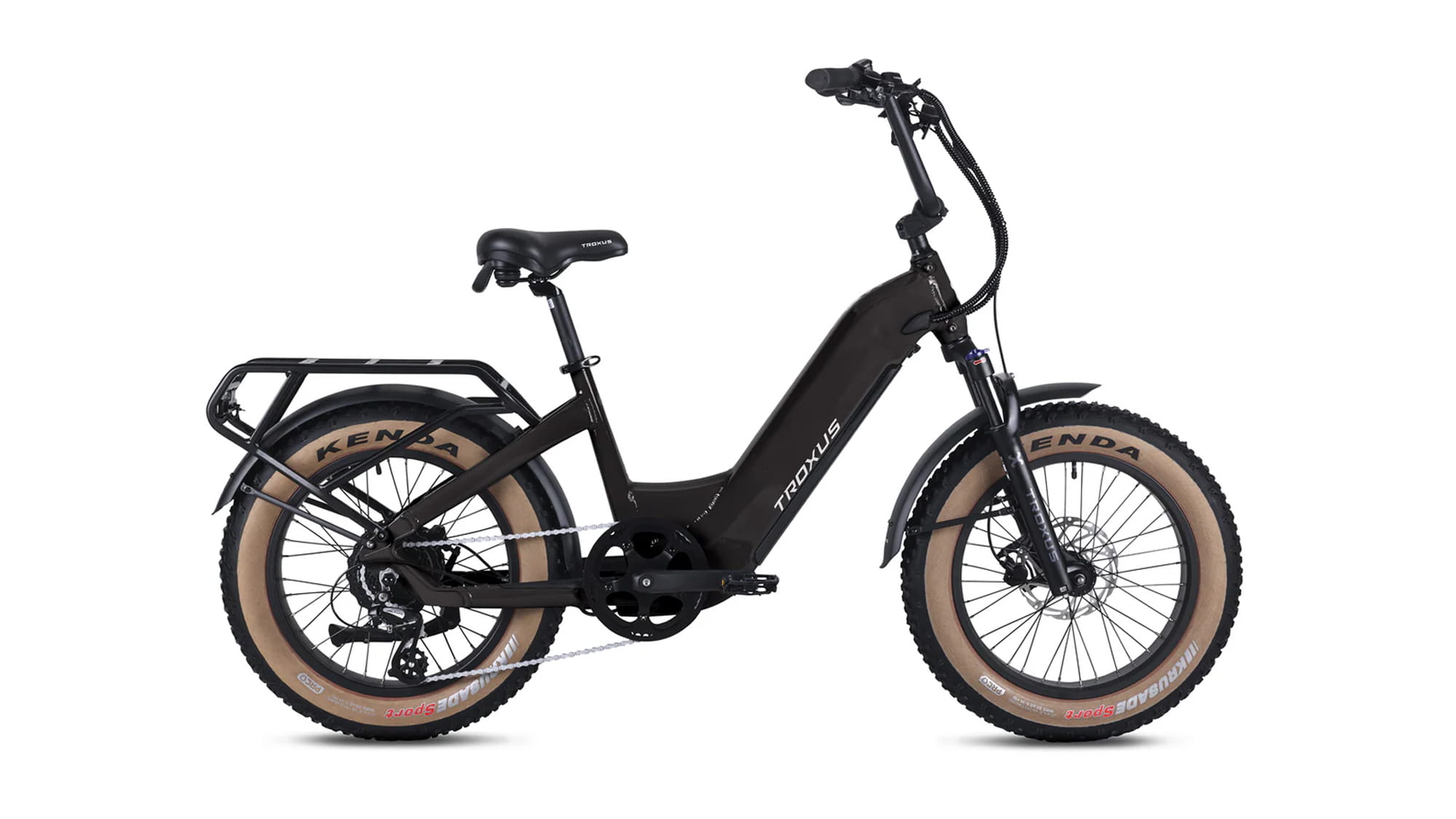

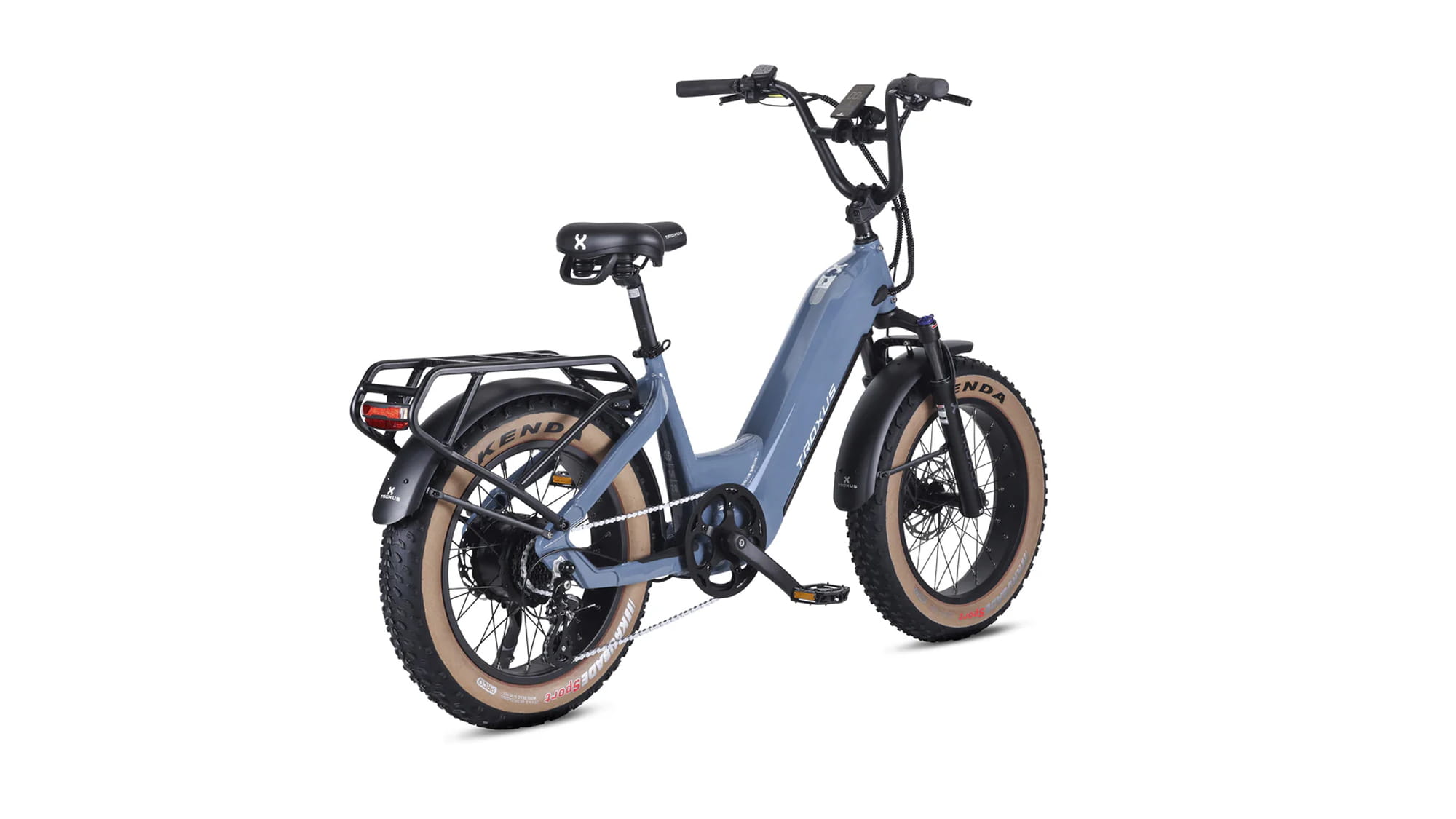

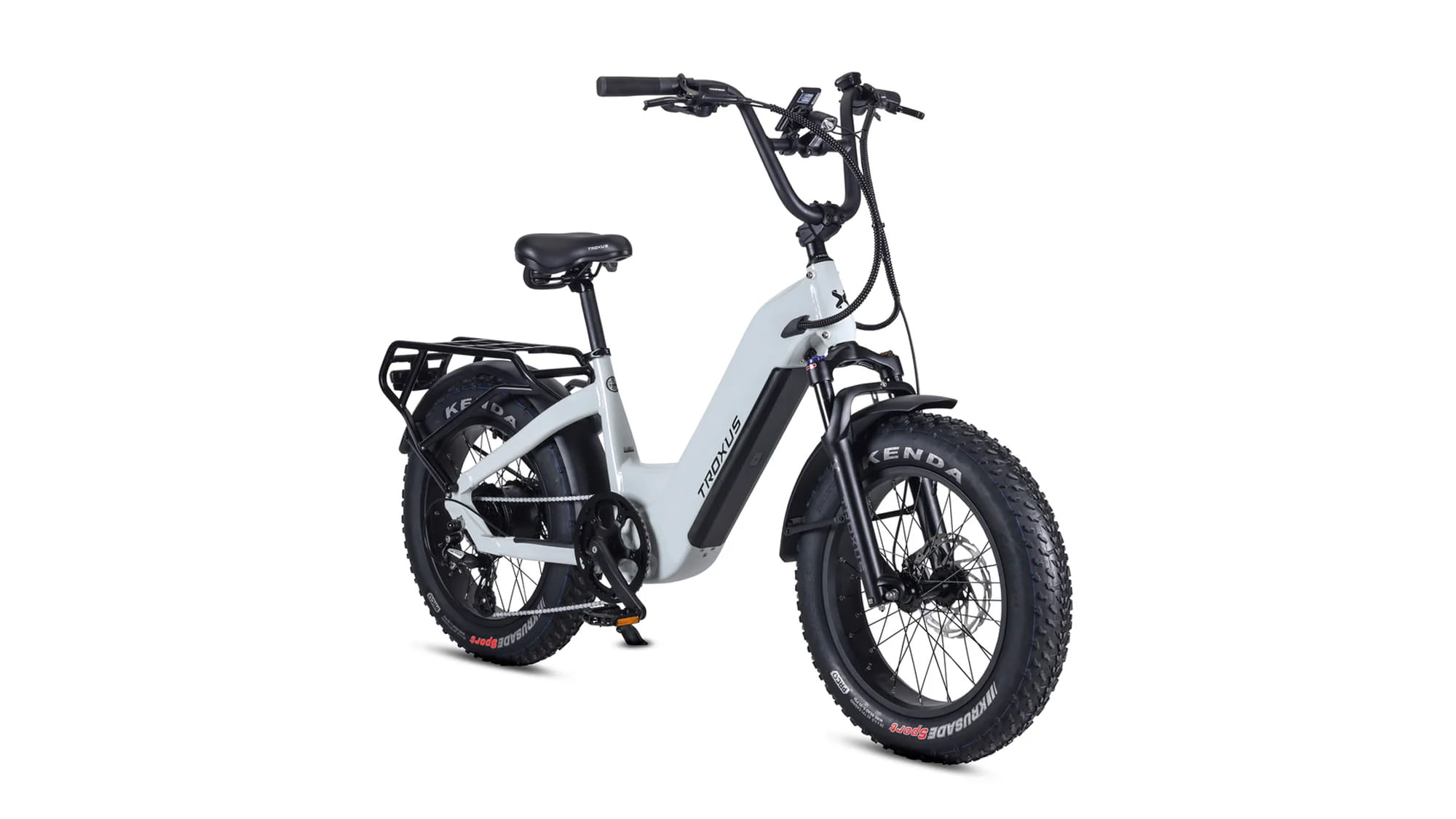

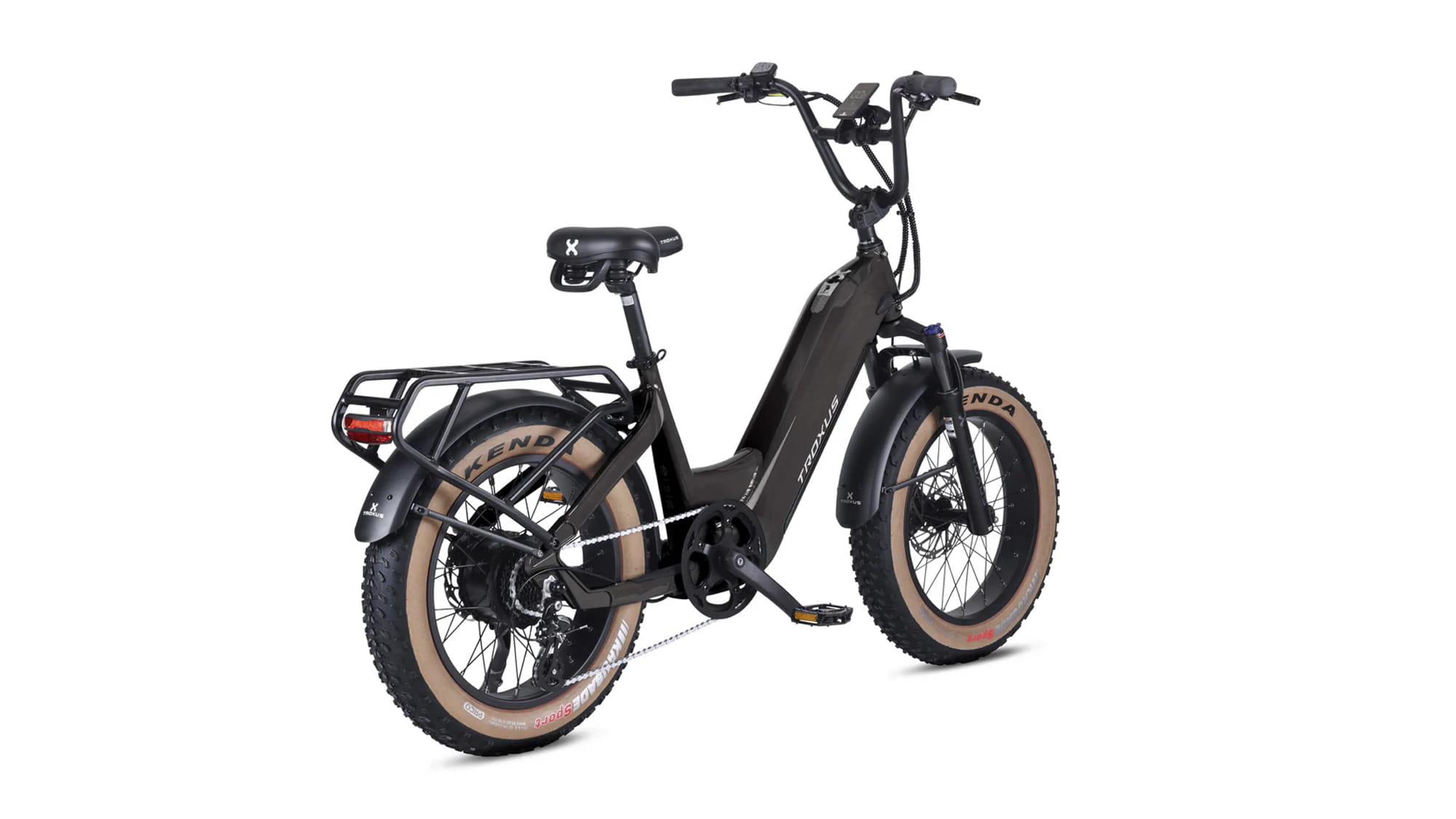

Lynx Plus iQ Compact Electric Bike
The Lynx Plus iQ compact electric bike combines utility features with smart
Ride iQ connectivity for safer and more convenient daily riding. Its compact
frame, long-range battery, and high cargo capacity make it ideal for commuting,
errands, and everyday riding.
THE ONLY eBIKE WITH PARENTAL CONTROL
28 MPH
Max Speed
Max Speed
UP TO 90 MILES
Per Charge
Per Charge
750W / 86Nm
Ananda Hub-Drive Motor
Ananda Hub-Drive Motor
48V 20Ah / 960Wh
Samsung® Cells
Samsung® Cells
400 LBS
Maximum Payload
Maximum Payload
CLASS 1 / 2 / 3
eBike as Sold
eBike as Sold
RIDE iQ SMART TECHNOLOGY
- Connectivity:
Remote access with proximity unlock - Security:
Real-time GPS tracking and geofencing alerts - Ride Intelligence:
Smoother, customizable power delivery - Energy Management:
Smarter trip planning and reduced range anxiety - Connected Features:
4G connectivity, ride monitoring, security alerts, and real-time ride information
E-SYSTEMS
- Motor:
Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque - Battery:
UL-2271 Certified / Internal / Removable / Lithium Ion,
48V/20Ah (960Wh) with Samsung® Cells - Display:
Color Display, Bluetooth, w/ Turn Light Signals,
w/ Multi-Function Remote, w/ USB Charging - Sensor:
Switchable Torque and Cadence Sensor Modes - Pedal Assist:
0–5 Level Pedal Assist - Charger:
3A / 100–240V Input / 54.6V Output - Lights:
Front Light & Rear Light - Controller:
48V × 22A / 12V
COMPONENTS
- Frame:
6061-T6 Aluminum Step-Thru Frame - Fork:
Front Suspension Fork, 80mm Travel - Chain:
KMC® 1/2″ × 3/32″ - Crankset:
Aluminum, 48T, w/ Single Alloy Chainguard,
Square Taper, 165mm - Rear Derailleur:
Shimano® RD-M310-L, Altus, 8-Speed - Cassette:
Shimano® 8-Speed, 12-32T - Shifter:
Shimano® 8-Speed - Bottom Bracket:
Square Taper Sealed Bearings, Torque & Cadence Sensors Included - Tires:
KENDA® KRUSADE Sport 20″ × 4.0″,
w/ Anti-Puncture K-Shield - Front Hub:
Alloy, 36H, 110mm, 3/8″ Axle - Rear Hub:

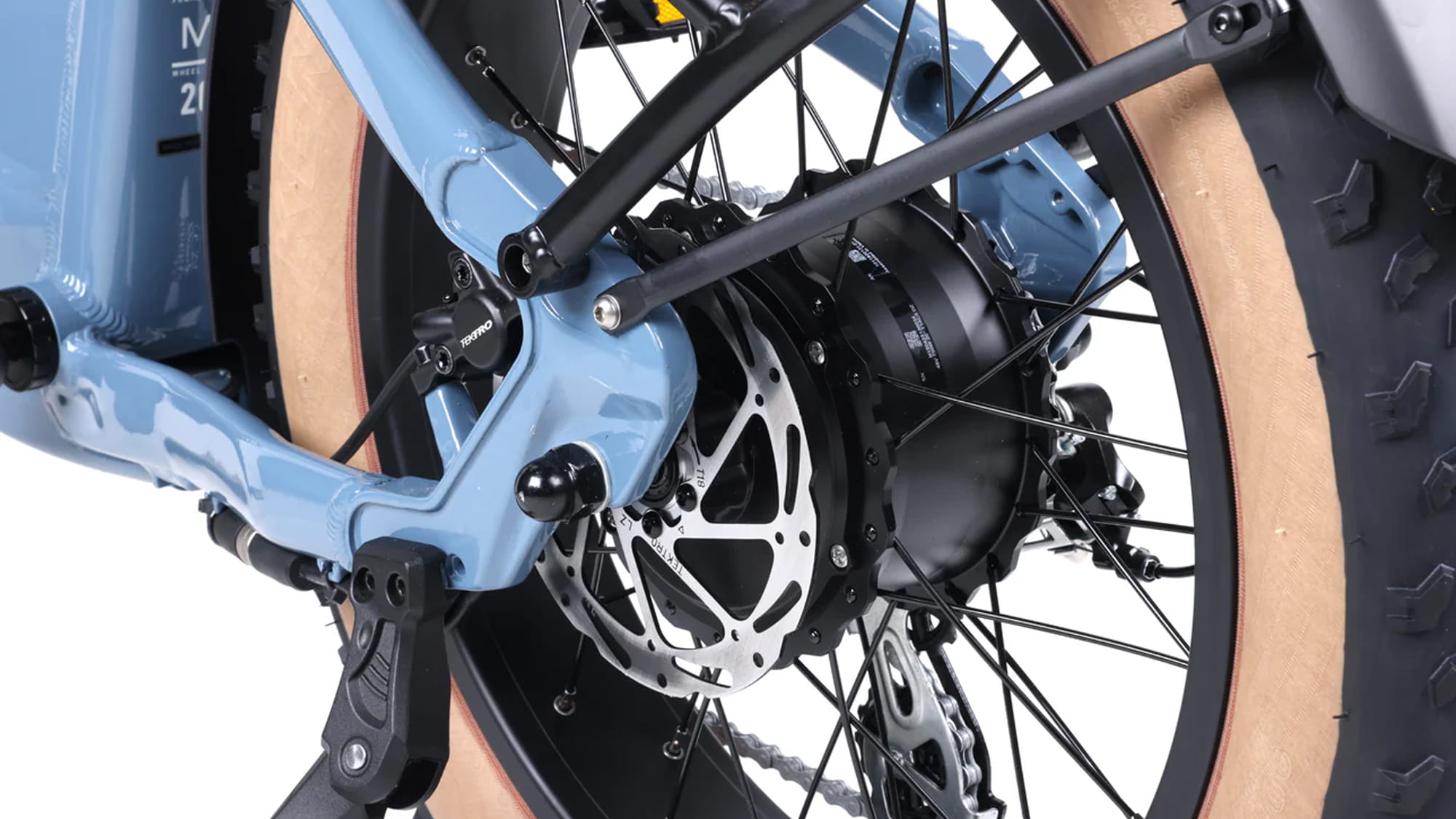

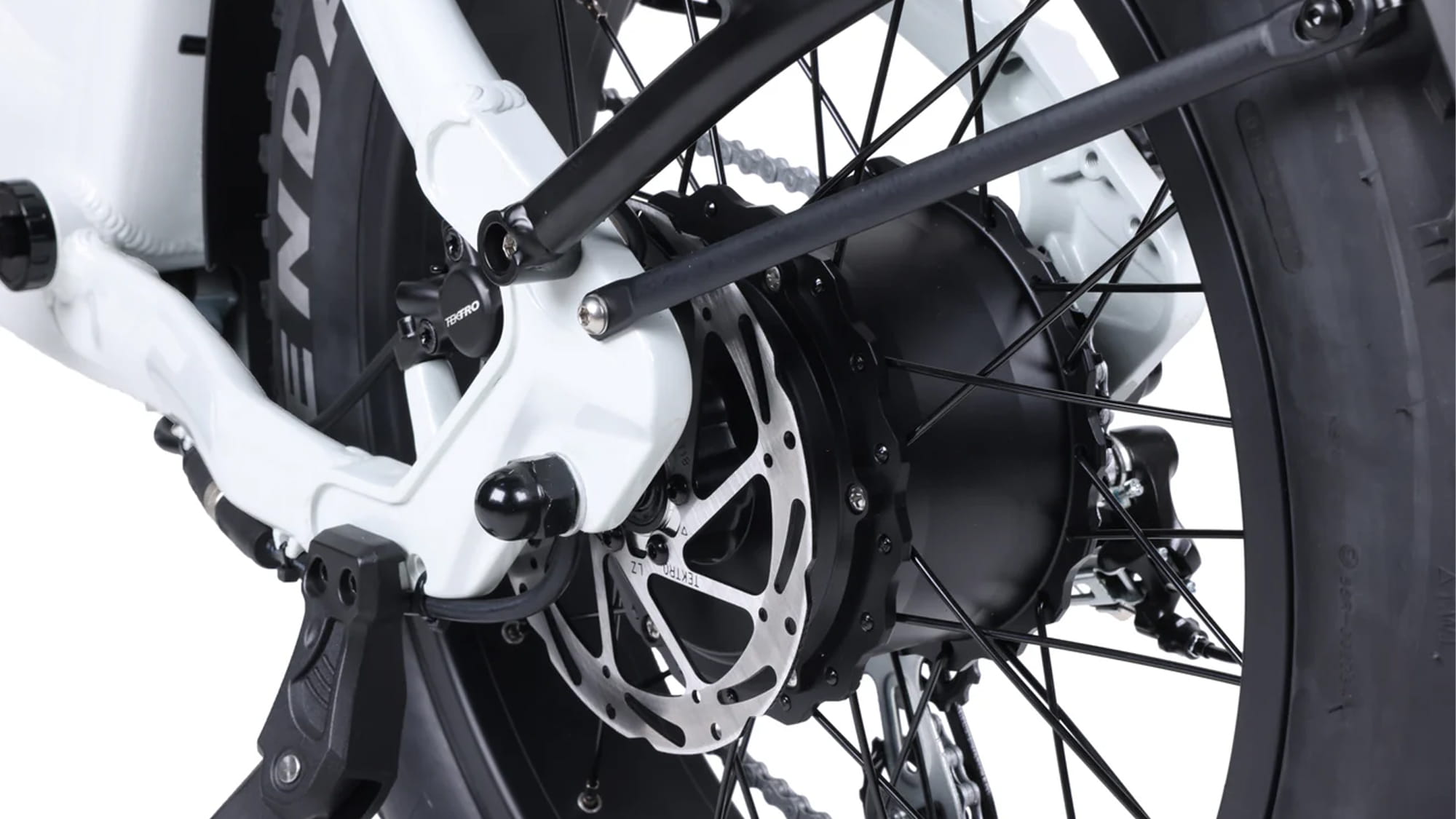

Bafang® 48V 750W / 28 MPH, 86Nm - Rims:
Alloy Double Wall, 20″ × 4.0″ w/ Eyelets - Spokes:
Stainless 13G Front / 12G Rear - Brakes:

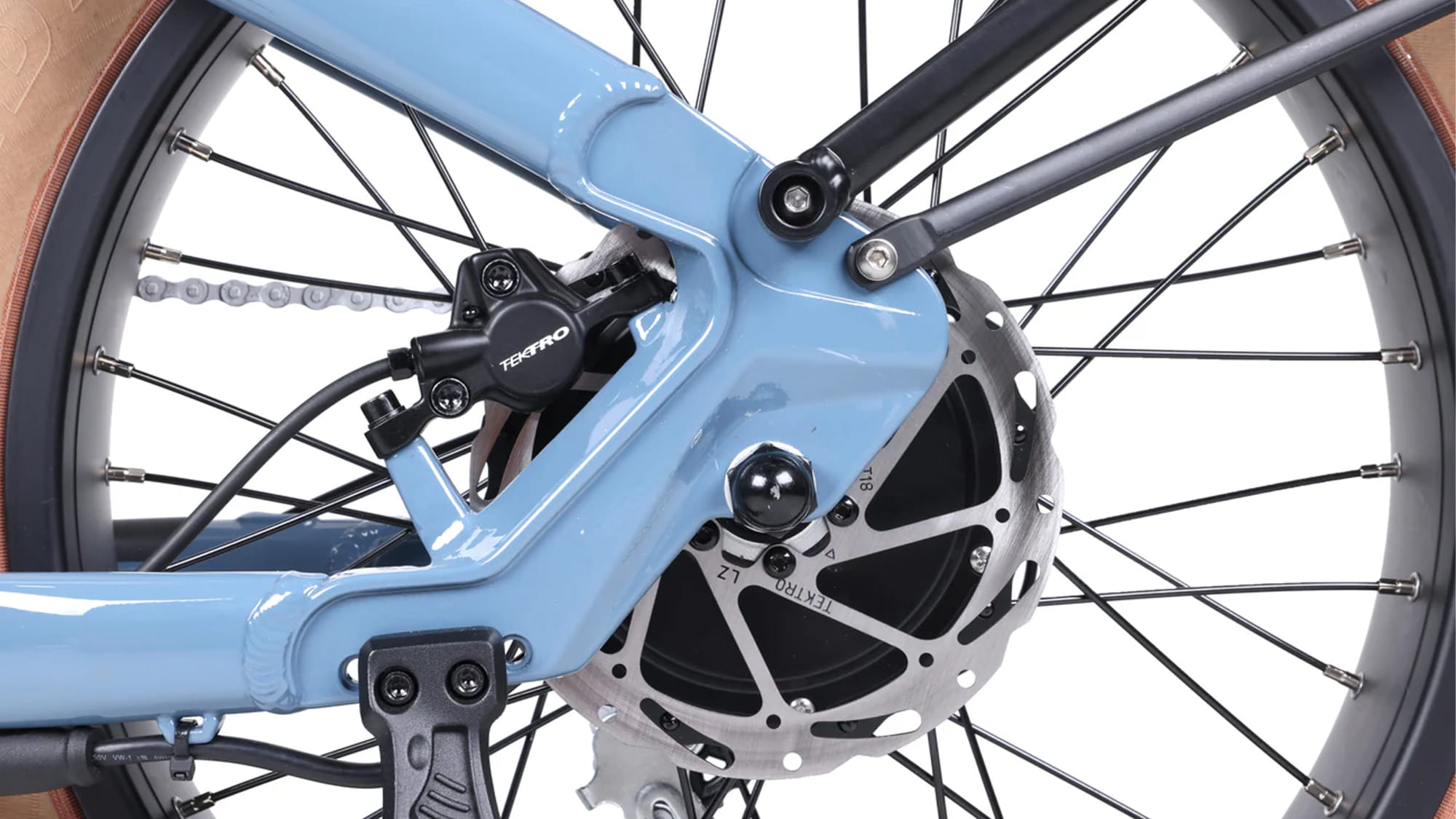

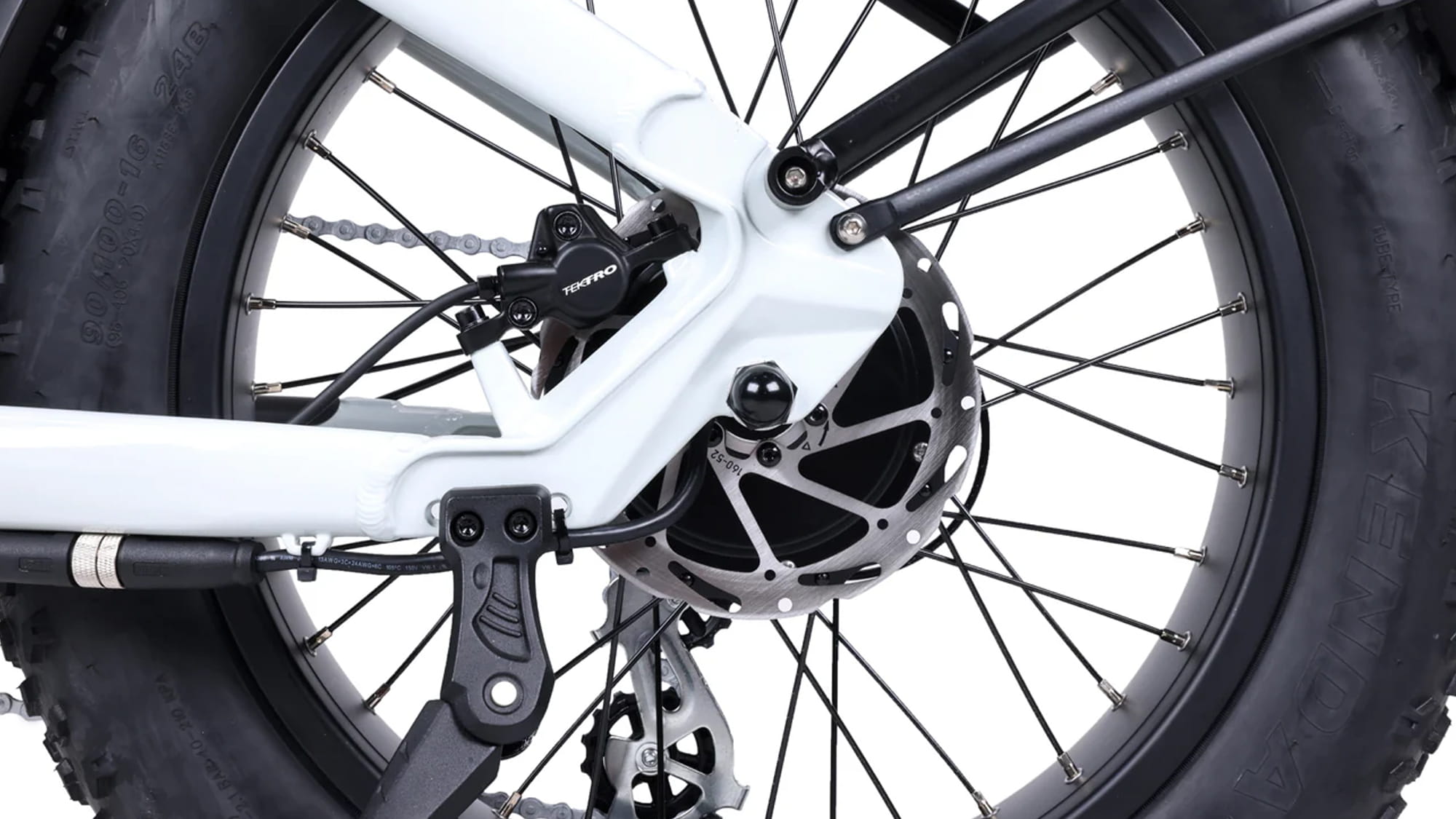

Tektro® Hydraulic, w/ Brake Sensors - Rotors:
180mm / 160mm - Saddle:

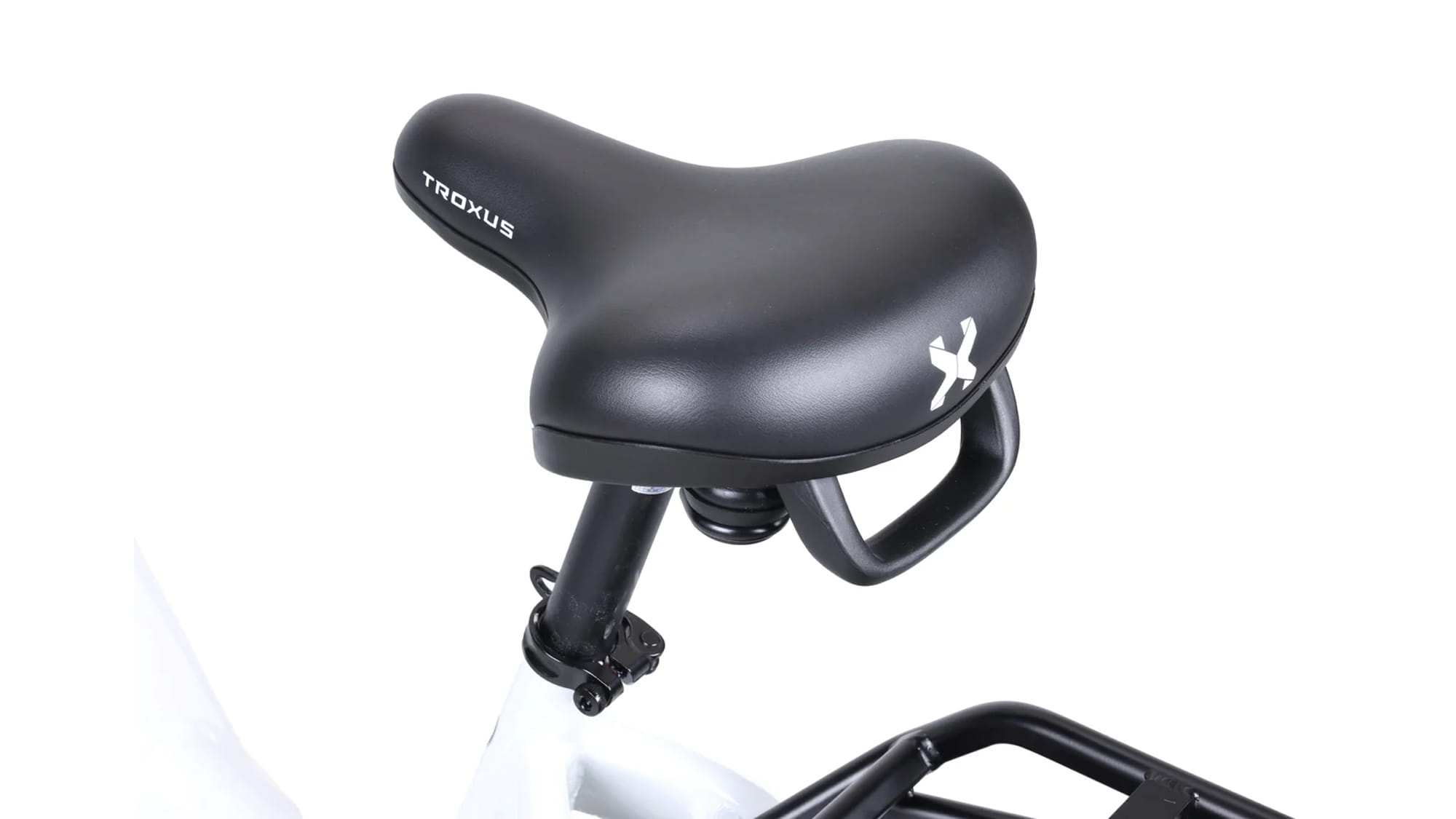

Troxus Comfort w/ Back Handle - Seat Post:
Alloy, 30.9 × 400mm, Adjustable - Seat Post Clamp:
Alloy, 35mm w/ Quick Release - Stem:
Alloy, BMX Style, Top-Load, 30-Degree Angle,
50mm Extension - Handlebar:
Alloy 6061-T6, 31.8mm × 680mm Wide, 261mm Rise - Grips:
Ergonomic Comfort - Pedals:
9/16″ Alloy Platform with Reflectors - Headset:
Threadless, Locking Internal 1-1/8″ - Rear Shocks:

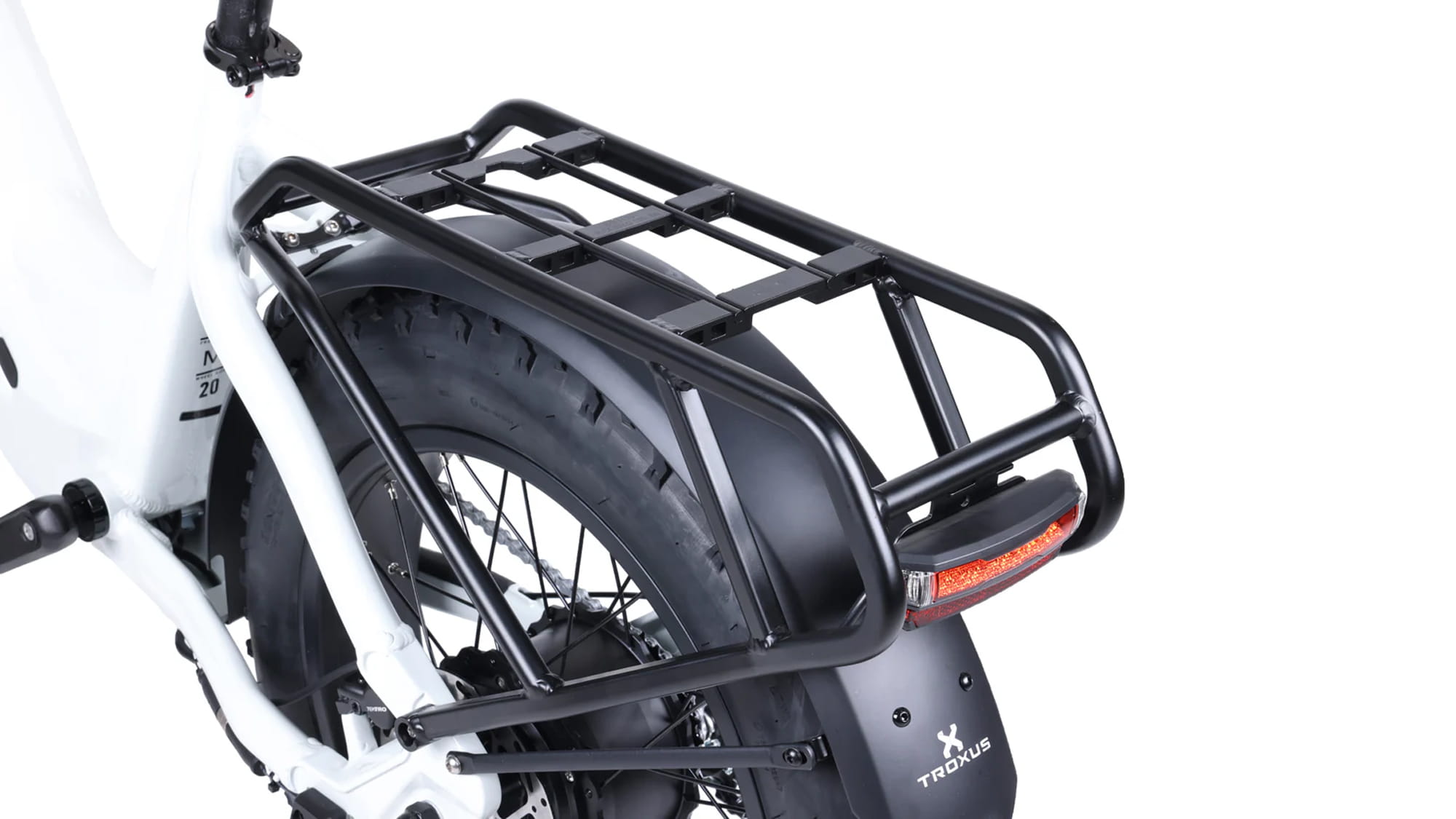

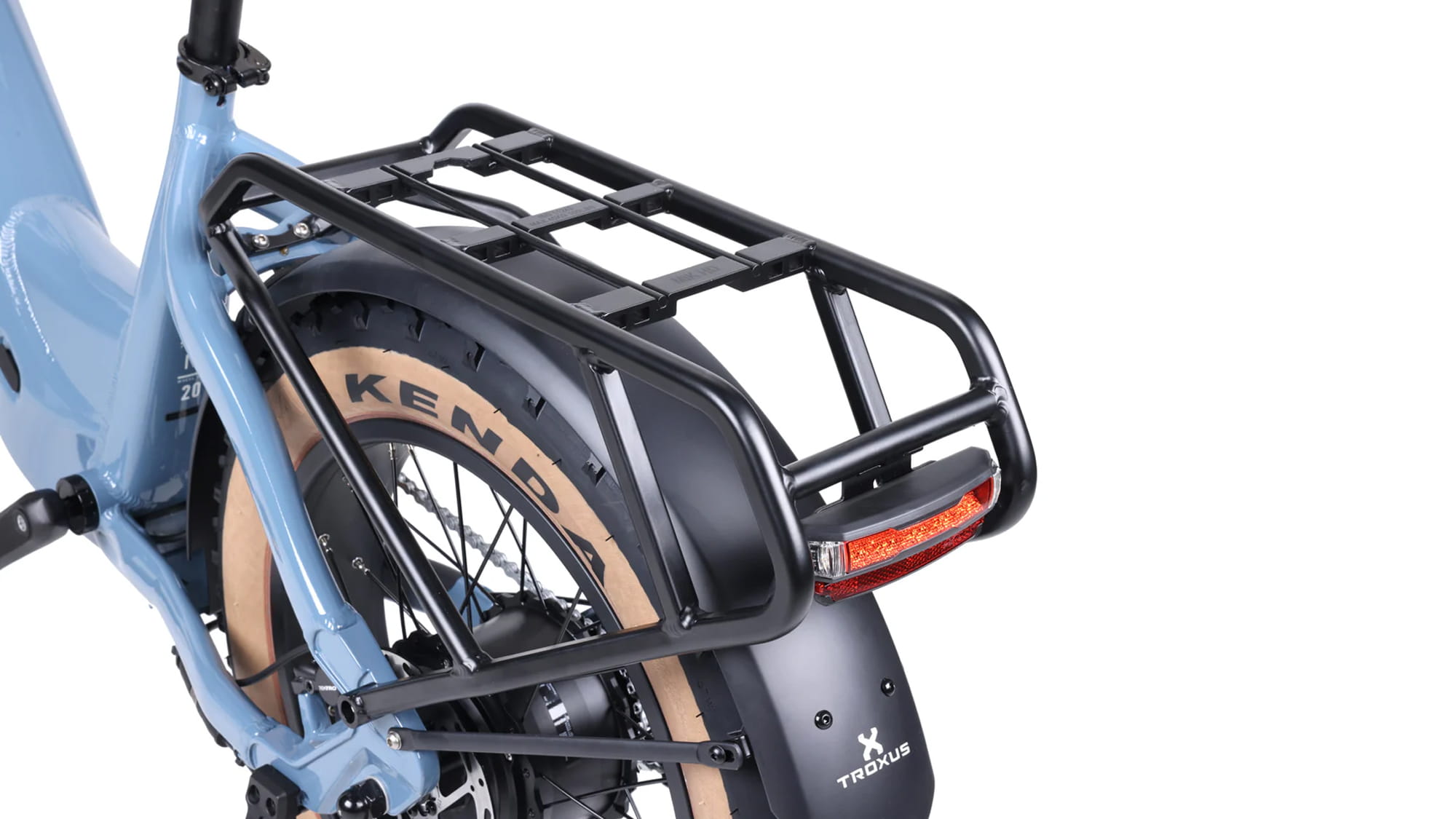

N/A - Rack:
Semi-Integrated Alloy Rear Model /
MIK-Compatible Rear Rack - Fender:
Alloy, 20″ × 4.0″ w/ Alloy Hardware - Kickstand:
Adjustable Side Kickstand
SPEED, RANGE & WEIGHT
- Max Speed:
Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist - Range:
Up To 90 Miles Per Charge - Weight Limit:
Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs - Net Weight:
77.2 lbs

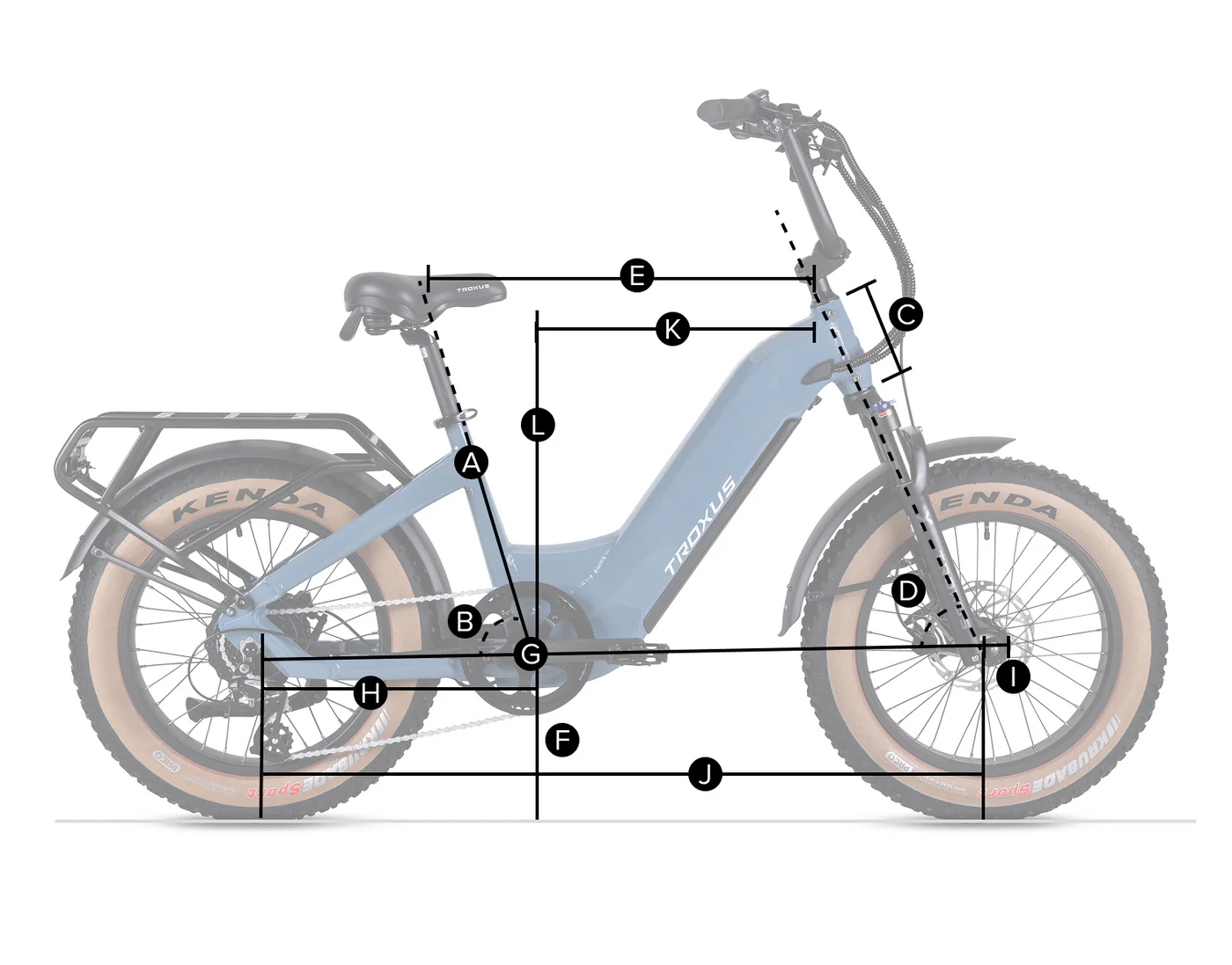

SIZE & GEOMETRY
Frame Size
Universal
Wheel Size
20″ × 4.0″
A – Seat Tube Length
375
B – Seat Tube Angle
71°
C – Head Tube Length
145
D – Head Tube Angle
68°
E – Effective Top Tube Length
645
F – Bottom Bracket Height
285
G – Bottom Bracket Drop
10
H – Chainstay Length
425
I – Fork Offset
46
J – Wheelbase
1148
K – Frame Reach
460
L – Frame Stack
538
Fork Travel
80
Fork Height
440
*Prop 65 Warning: This product contains a chemical known to the State
of California to cause cancer, birth defects, or other reproductive harm.
*All specifications are subject to change without notice.
