Explorer Plus Step Thru E-Bike – MIK Version
Easy to mount and fully equipped, the Explorer Plus Step‑Thru MIK blends comfort with versatility for riders of all experience levels. Its low‑step frame, smooth power delivery, and MIK‑compatible rear rack make it perfect for commuting, errands, or scenic rides. With a stable feel and premium features, it’s a dependable companion for everyday adventures.
UP TO 28 MPH
Max Speed
Max Speed
UP TO 90 Miles
Per Charge
Per Charge
750W
Bafang® Hub Motor
Bafang® Hub Motor
48V 20Ah (960Wh)
SAMSUNG® Cells
SAMSUNG® Cells
26″x4.0″
KENDA® Fat Tires
KENDA® Fat Tires
SENSOR
Switchable Torque And Cadence Sensor Modes
Switchable Torque And Cadence Sensor Modes
E-SYSTEM
- Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
- Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
- Display: Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
- Throttle: Thumb Throttle on Handlebar
- Sensor: Switchable Torque And Cadence Sensor Modes
- Pedal Assist: 0~5 Level Pedal Assist
- Charger: 3A / 100-240V Input / 54.6V Output
- Lights: 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
- Controller: 48Vx22A/6V
COMPONENTS
- Frame: 6061-T6 Aluminum Step-Thru Frame
- Fork: Front Suspension Fork, 90mm Travel
- Chain: KMC® 1/2″x3/32″
- Crankset: Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm

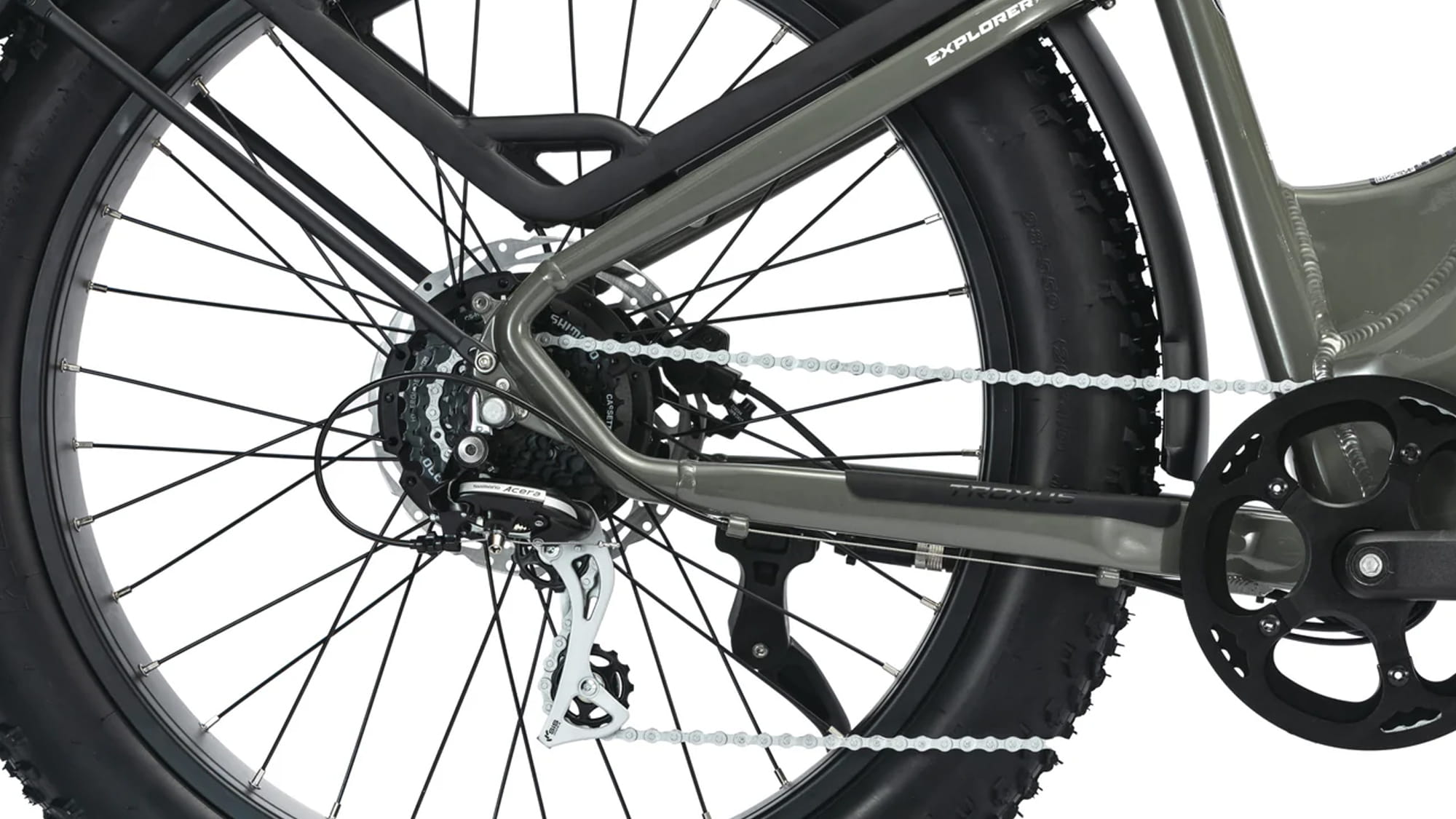

- Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
- Cassette: Shimano® 8-Speed, 12-32T
- Shifter: Shimano® 8-Speed
- Bottom Bracket Set: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
- Tires: KENDA® 26″x4.0″, w/ Anti-Puncture K-Shield
- Front Hub: Alloy, 36H, 135mm, 3/8″ Axle
- Rear Hub: Bafang® 48V 750W/ 28 MPH. 86Nm
- Rims: Alloy Single Wall Front / Double Wall Rear, 36H, 26″x4.0″, w/ Eyelets
- Spokes: Stainless 13G. Front / 12G. Rear

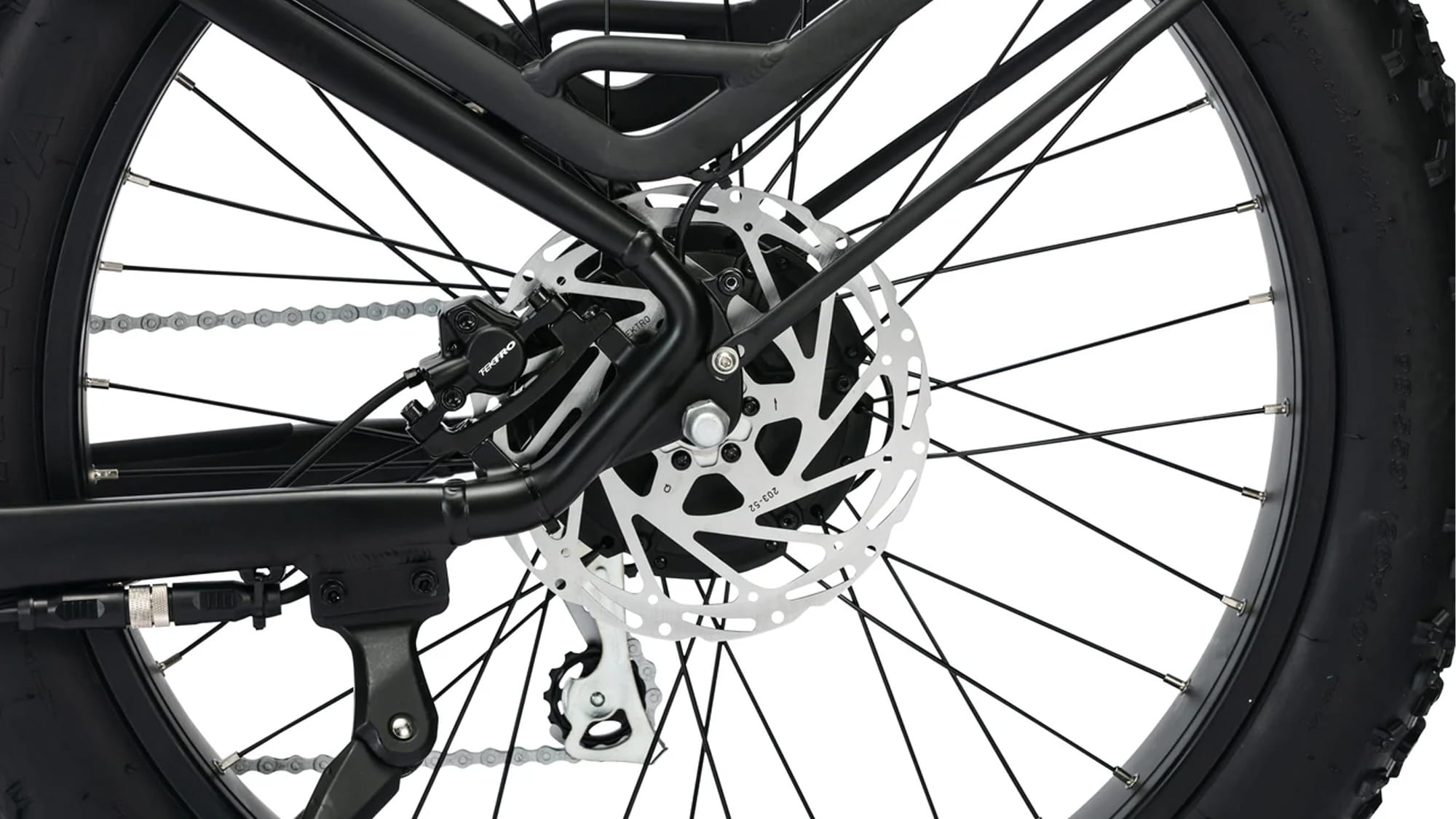

- Brakes: Tektro® Hydraulic, w/ Brake Sensors
- Rotors: 203mm / 203mm
- Saddle: Troxus Comfort
- Seat Post: Zoom® Alloy, 30.9x350mm, Adjustable
- Seat-Post Clamp: Alloy, 35mm w/ Quick Release
- Stem: Zoom® Alloy, Threadless, 1-1/8″, Ext. 75mm, 28.6mm, 7-Degree Rise
- Handlebar: Zoom® Alloy 31.8mmx700mm Wide
- Grips: Ergonomic Comfort
- Pedals: 9/16″ Alloy Platform
- Headset: Threadless, Locking Internal 1-1/8″
SPEED, RANGE, WEIGHT & SUPPORT
- Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
- Range: Up To 90 Miles Per Charge
- Weight Limit: Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
- Net Weight: 83.8 lbs

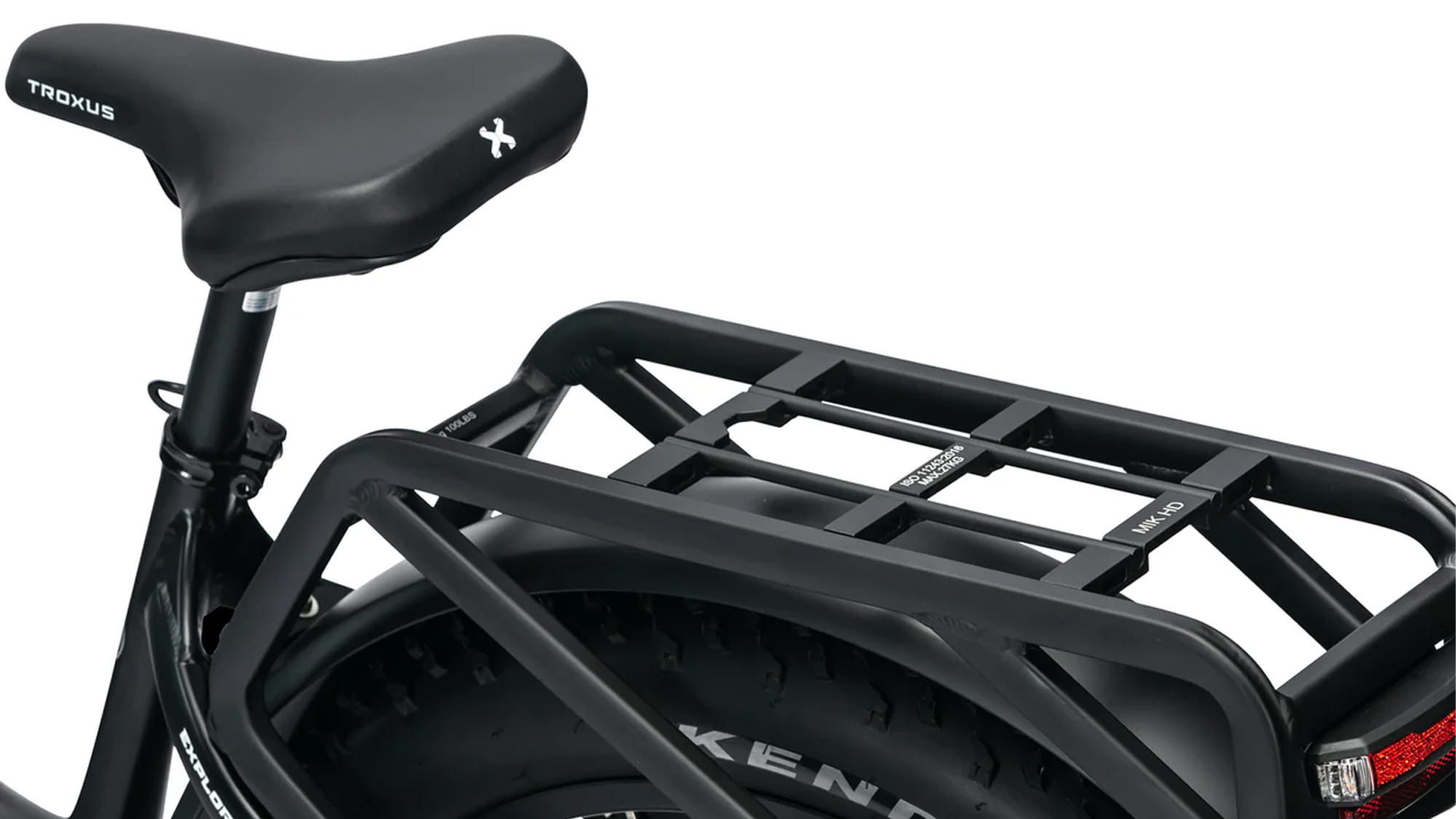

- Rack: Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack
- Fenders: Alloy, 27.5″x4.0″, Full coverage
- Kickstand: Adjustable Side Kickstand
- Packaged: Above All Accessories Are Included.
RECOMMENDED HEIGHT
Small: 5’0″ – 5’5″
Medium: 5’5″ – 5’10”
GEOMETRY
Model
Step-Thru
Frame Size
Small / 16.5″ & Medium / 18.0″
Wheel Size
26×4.0″
A – Seat Tube Length
Small: 419 mm / Medium: 457 mm
B – Seat Tube Angle
Small: 71.5° / Medium: 71°
C – Head Tube Length
145 mm
D – Head Tube Angle
68°
E – Effective Top Tube Length
Small: 609 mm / Medium: 625 mm
F – Bottom Bracket Height
305 mm
G – Bottom Bracket Drop
70 mm
H – Chainstay Length
490 mm
I – Fork Offset
46 mm
J – Wheelbase
Small: 1163 mm / Medium: 1171 mm
K – Frame Reach
Small: 383 mm / Medium: 392 mm
L – Frame Stack
677 mm / 677.0 mm
Fork Travel
90 mm
Fork Height
525 mm
*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
