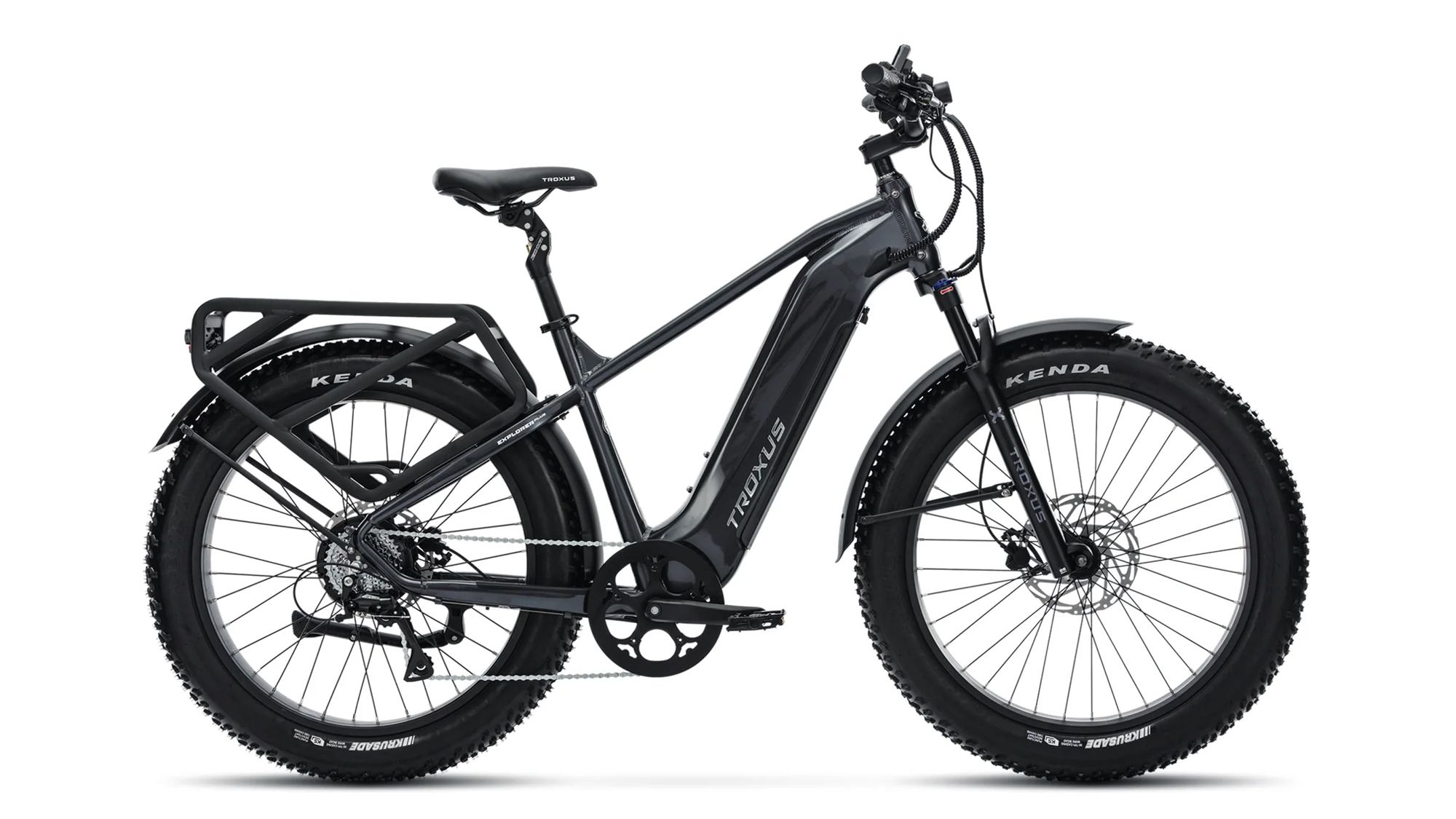

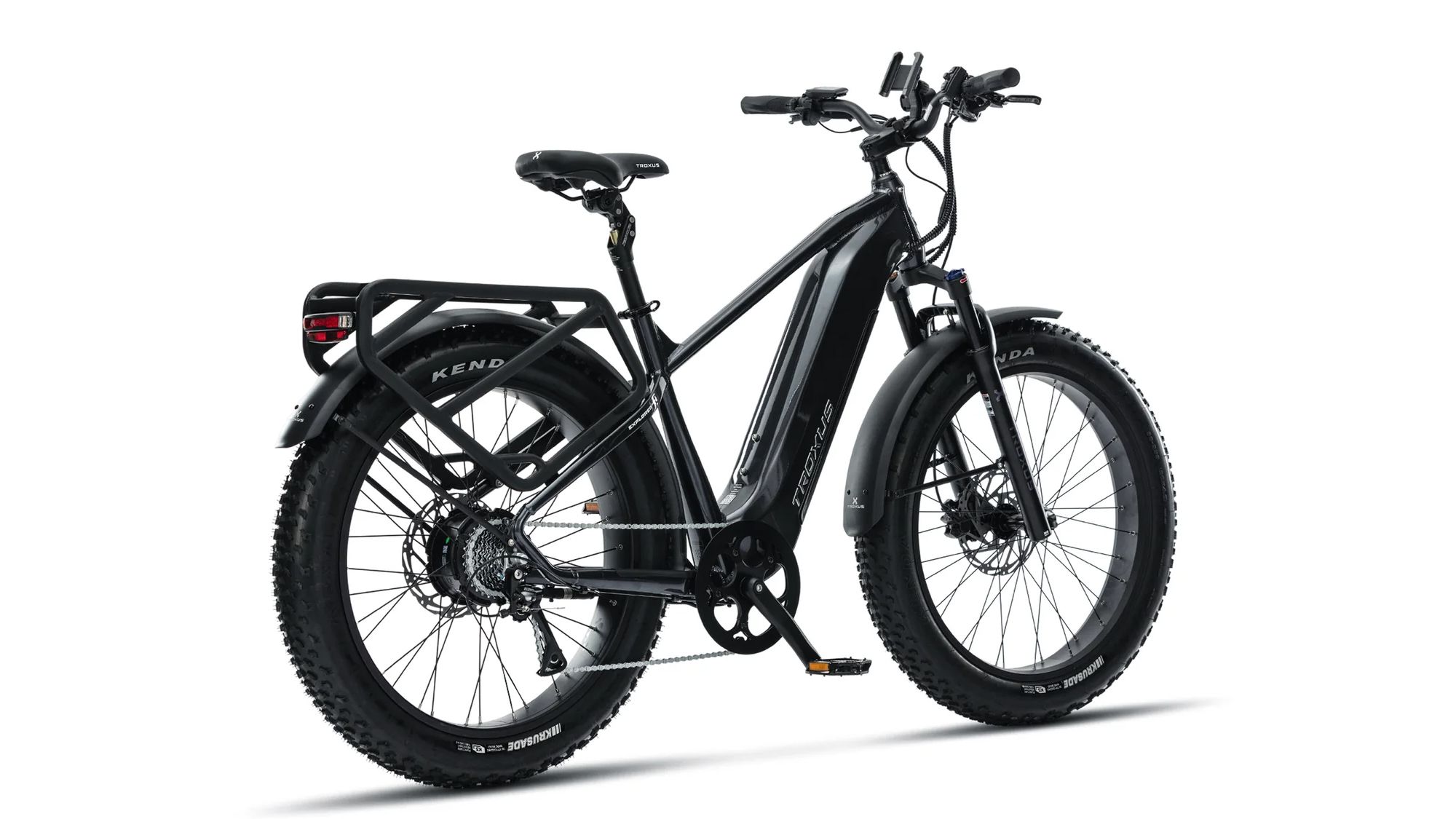

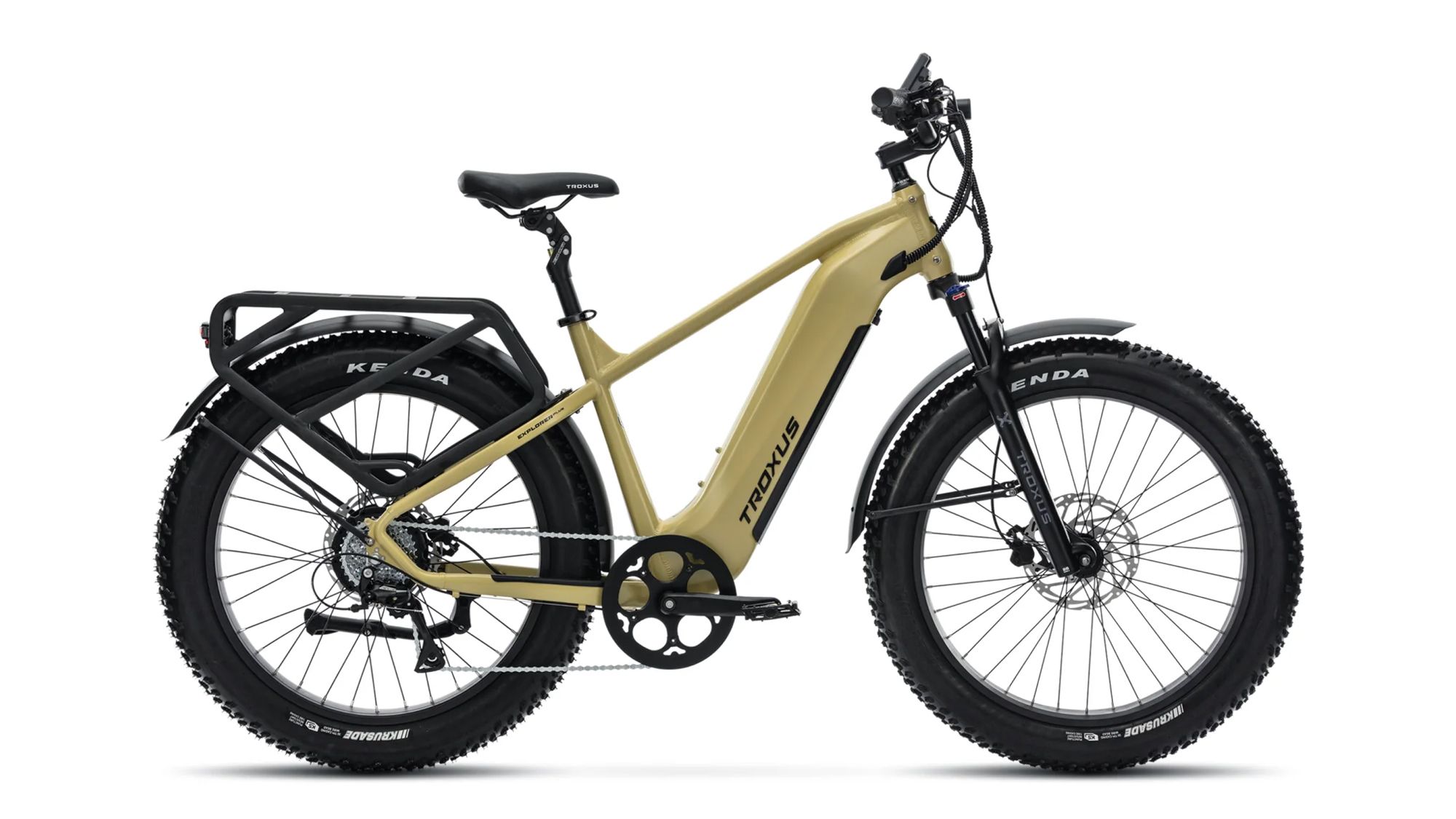

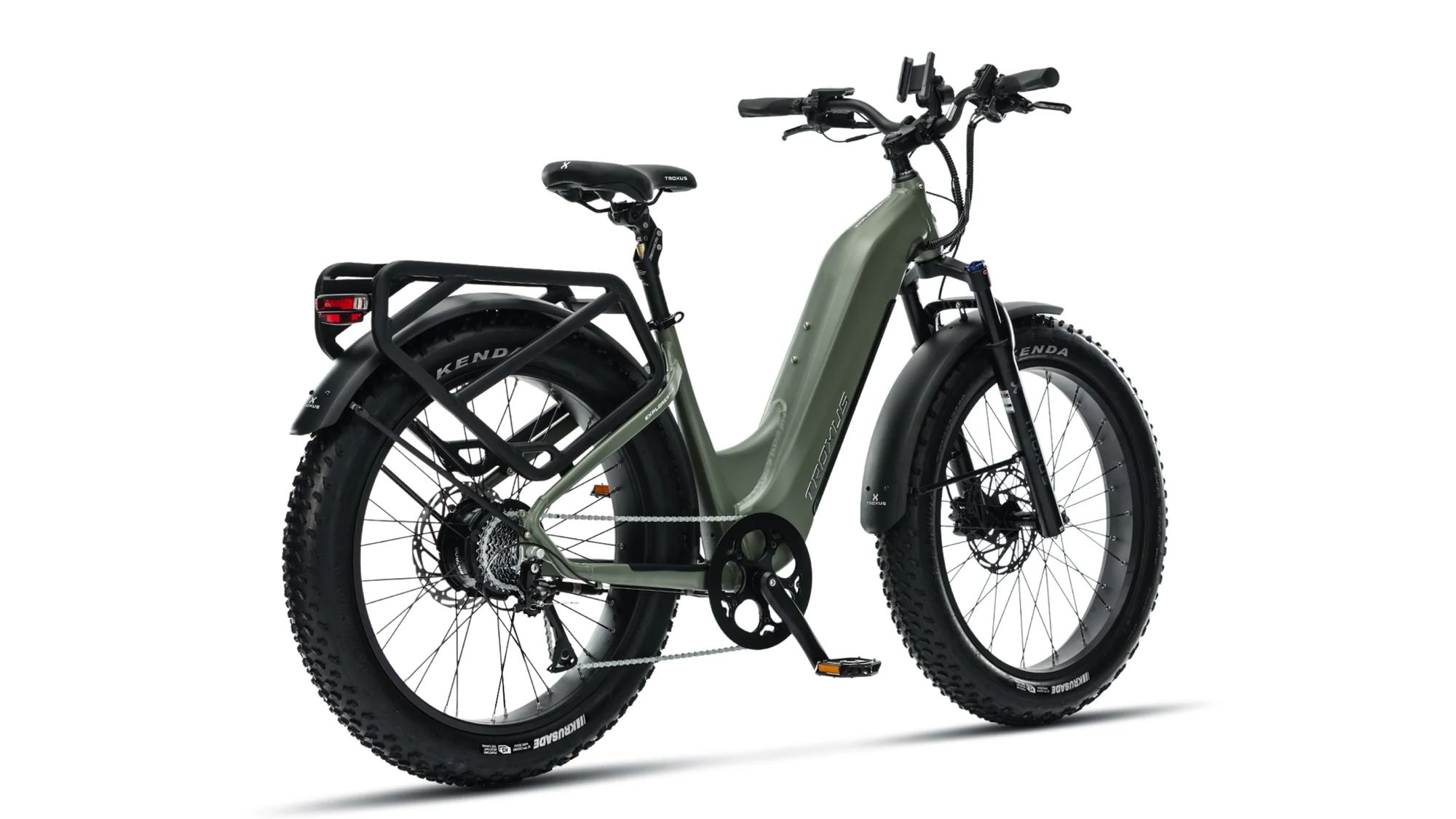

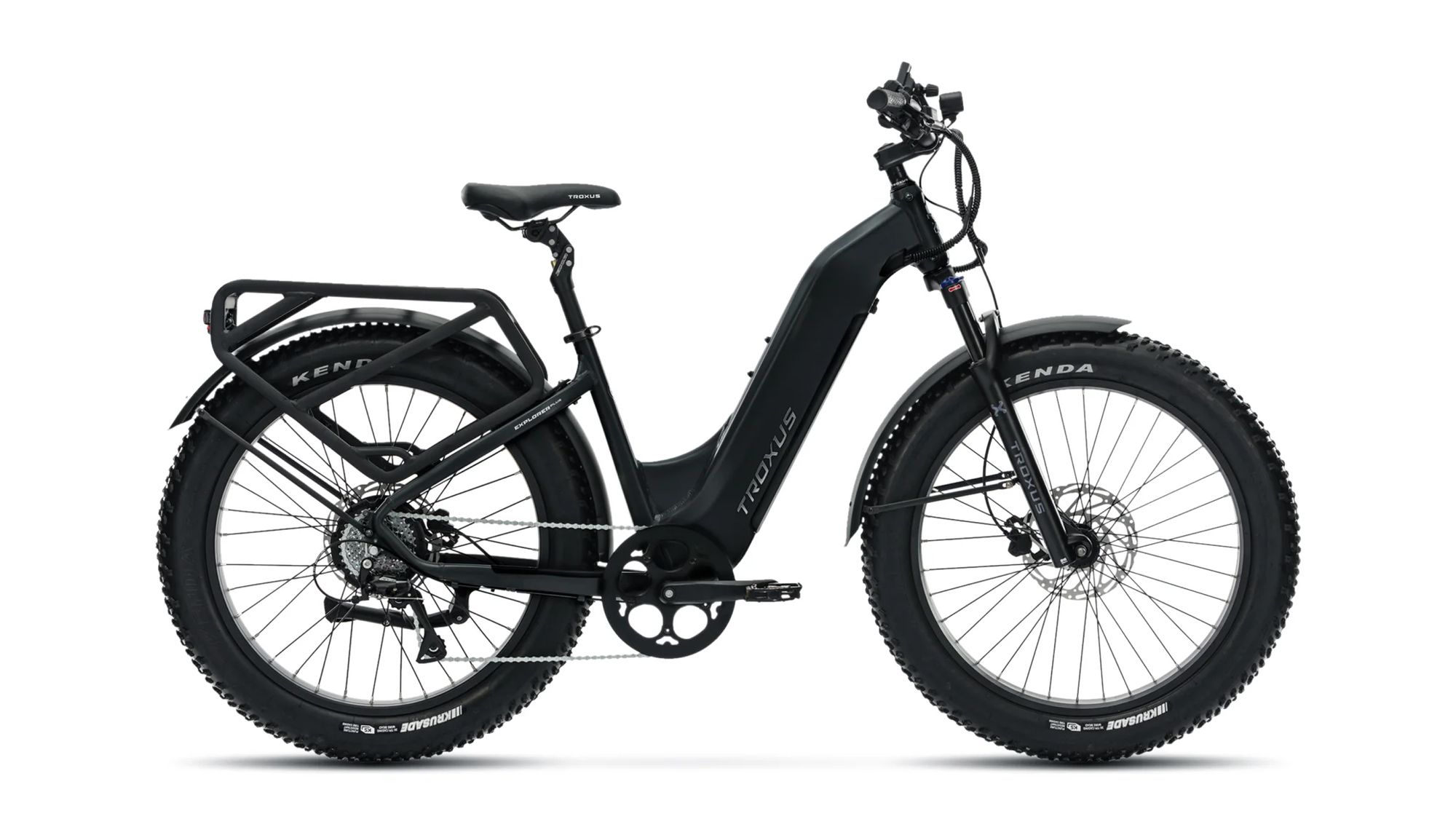

Troxus Explorer Plus iQ
The Troxus Explorer Plus iQ is a long-range, fat-tire electric bike built for adventure, stability, and confident control across a variety of terrain. Its powerful 750W Bafang® motor, high-capacity 960Wh battery, 4-inch fat tires, hydraulic disc brakes, and 90mm front suspension make it equally capable on pavement, gravel, dirt, and uneven surfaces.
Ride iQ adds next-generation connected technology, including GPS tracking, geofencing alerts, proximity unlock, real-time ride monitoring, customizable power delivery, and smart energy management.
UP TO 28 MPH
Max Speed
Max Speed
UP TO 90 MILES
Per Charge
Per Charge
750W / 86Nm
Bafang® Hub Motor
Bafang® Hub Motor
48V 20Ah (960Wh)
Samsung® Cells
Samsung® Cells
26″ x 4.0″
KENDA® KRUSADE Fat Tires
KENDA® KRUSADE Fat Tires
DUAL SENSOR
Torque & Cadence Modes
Torque & Cadence Modes
RIDE iQ SMART TECHNOLOGY
- Connectivity: Remote access with proximity unlock
- Security: Real-time GPS tracking and geofencing alerts
- Ride Monitoring: Connected ride information and real-time monitoring
- Ride Intelligence: Smooth, customizable power delivery
- Energy Management: Smart trip planning and energy management designed to reduce range anxiety
- Security Alerts: Motion and anti-theft notifications through the Ride iQ connected system
E-SYSTEM
- Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

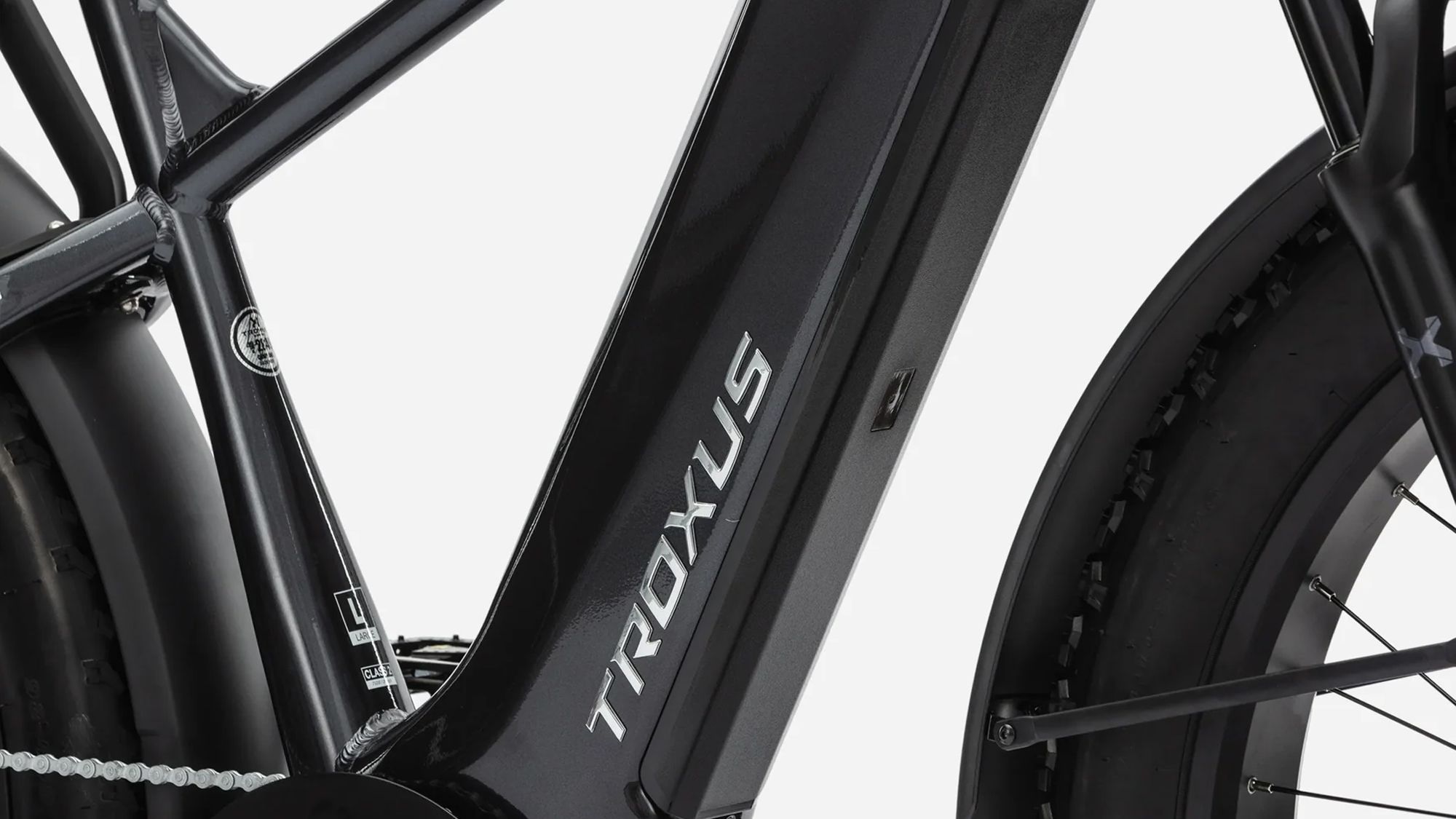

- Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
- Display: Color Display, Bluetooth, Turn Light Signals, Multi-Function Remote, and USB Charging
- Sensor: Switchable Torque and Cadence Sensor Modes
- Pedal Assist: 0-5 Level Pedal Assist
- Charger: 3A / 100-240V Input / 54.6V Output
- Lights: Integrated Front and Rear Lights
- Controller: 48V x 22A / 6V
COMPONENTS
- Frame: 6061-T6 Aluminum Frame
- Fork: Front Suspension Fork, 90mm Travel
- Chain: KMC® 1/2″ x 3/32″
- Crankset: Aluminum, 46T, with Single Alloy Chainguard, Square Taper, 170mm

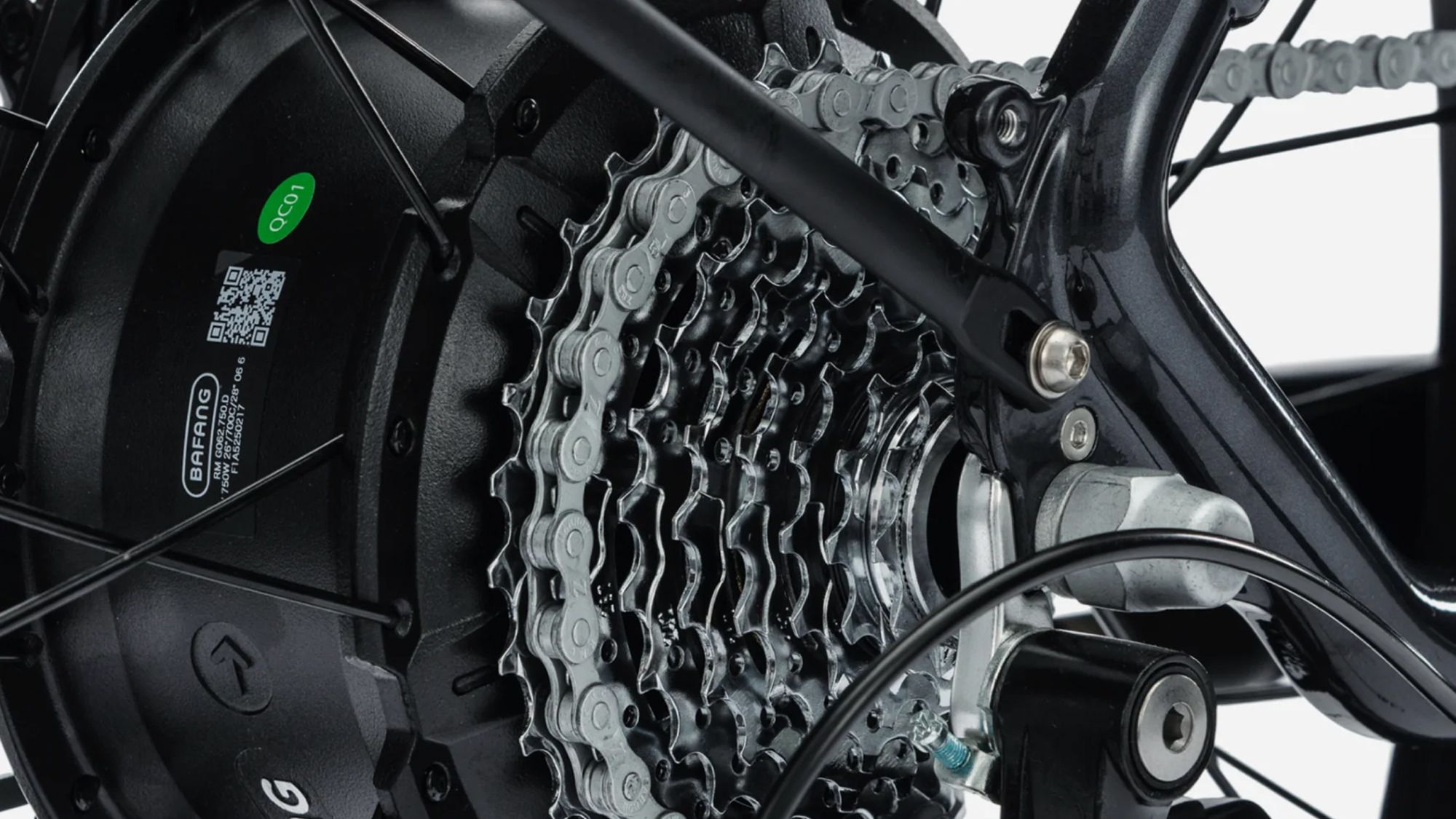

- Rear Derailleur: Shimano® RD-M310-L Altus, 8-Speed
- Cassette: Shimano® 8-Speed, 12-32T
- Shifter: Shimano® 8-Speed
- Bottom Bracket: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
- Tires: KENDA® KRUSADE 26″ x 4.0″, with Anti-Puncture K-Shield
- Front Hub: Alloy, 36H, 135mm, 3/8″ Axle
- Rear Hub: Bafang® 48V 750W / 28 MPH / 86Nm
- Rims: Alloy Single Wall Front / Double Wall Rear, 36H, 26″ x 4.0″, with Eyelets
- Spokes: Stainless 13G Front / 12G Rear
- Brakes: Tektro® Hydraulic Disc Brakes with Brake Sensors
- Rotors: 203mm Front / 203mm Rear
- Saddle: Troxus Comfort
- Seat Post: Zoom® Alloy, 30.9 x 350mm, Adjustable
- Seat Post Clamp: Alloy, 35mm with Quick Release
- Stem: Zoom® Alloy, Threadless, 1-1/8″, 75mm Extension, 28.6mm, 7-Degree Rise
- Handlebar: Zoom® Alloy, 31.8mm x 700mm Wide
- Grips: Ergonomic Comfort
- Pedals: 9/16″ Alloy Platform
- Headset: Threadless, Locking Internal 1-1/8″
- Rear Shock: N/A
SPEED, RANGE, WEIGHT & SUPPORT
- eBike Class: Class 1 / 2 / 3 eBike as sold
- Max Speed: Up to 20 MPH on Throttle / Up to 28 MPH on Pedal Assist
- Range: Up to 90 Miles Per Charge
- Maximum Load: 400 lbs
- Maximum Rear Rack Capacity: 100 lbs
- Net Weight: 83.8 lbs

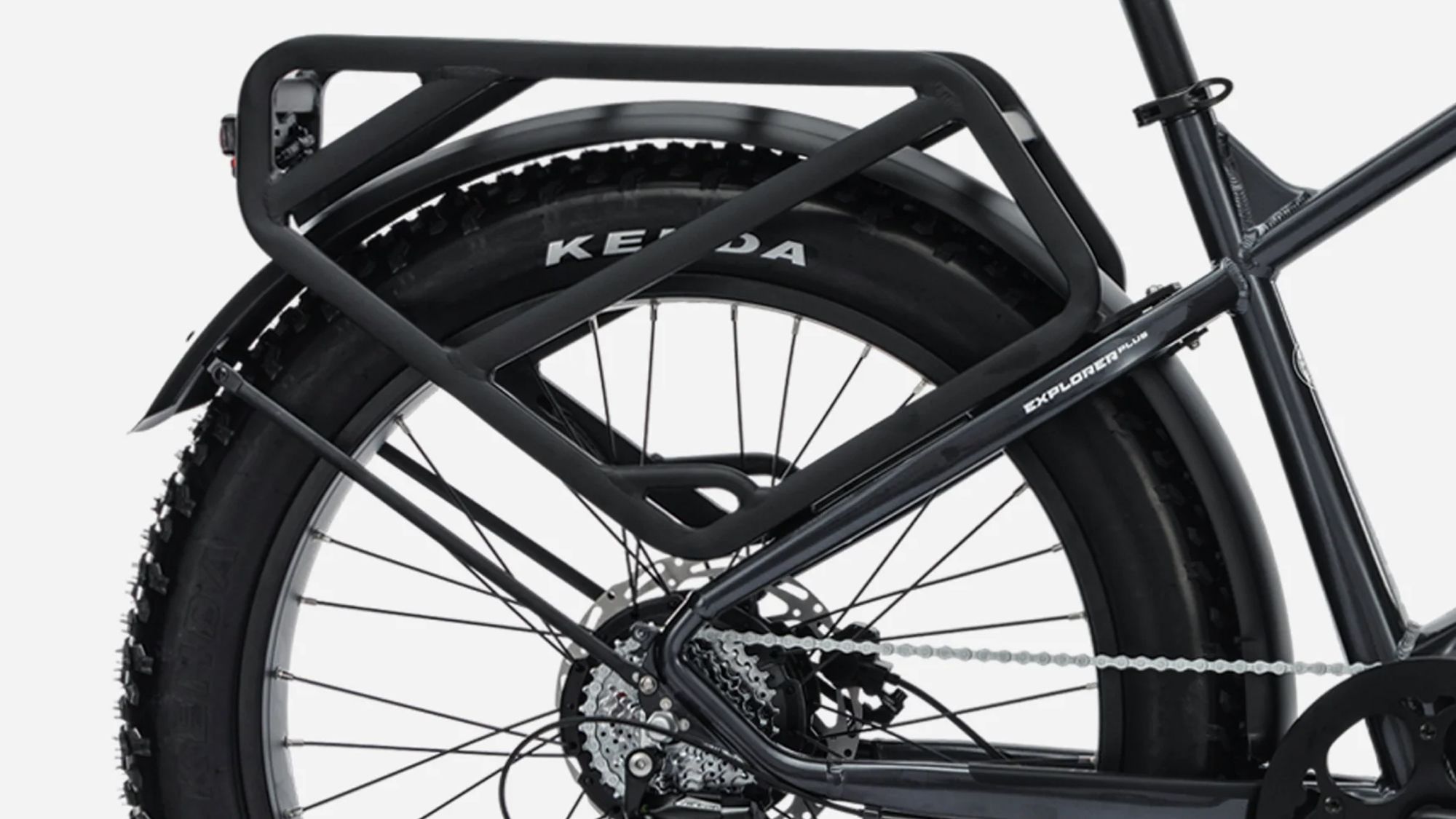

- Rack: Semi-Integrated Alloy, MIK-Compatible Rear Rack
- Fenders: Alloy, 27.5″ x 4.0″, Full Coverage
- Kickstand: Adjustable Side Kickstand
AVAILABLE FRAME SIZES

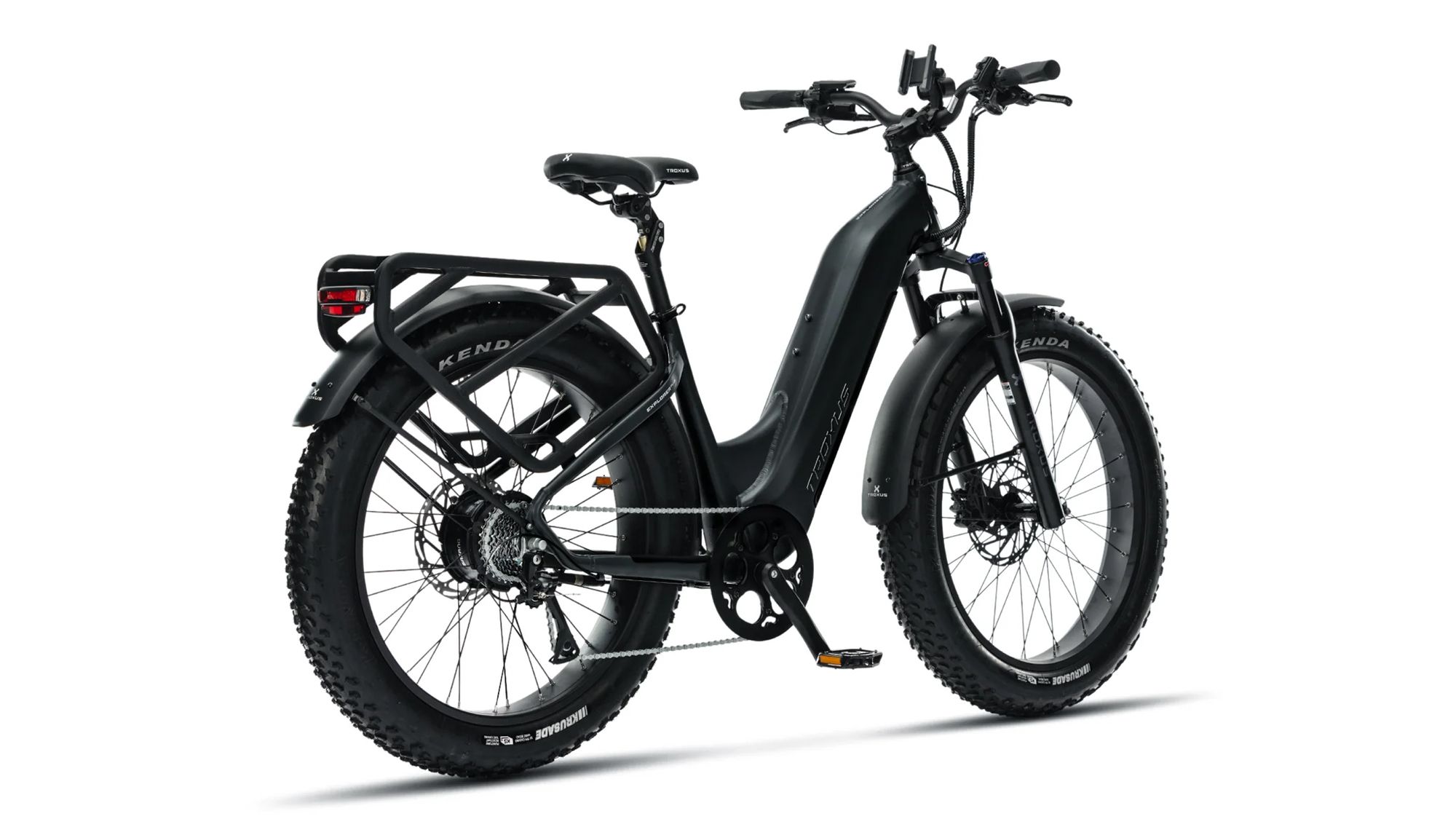

- Small: Step-Thru / 16.5″ Frame
- Medium: Step-Thru / 18.0″ Frame
- Large: Step-Over / 20″ Frame
- Wheel Size: 26″ x 4.0″ on all sizes
GEOMETRY — LARGE STEP-OVER
Model
Step-Over
Frame Size
Large / 20″
Wheel Size
26″ x 4.0″
A – Seat Tube Length
500mm
B – Seat Tube Angle
71.0°
C – Head Tube Length
160mm
D – Head Tube Angle
68°
E – Effective Top Tube Length
625mm
F – Bottom Bracket Height
305mm
G – Bottom Bracket Drop
70mm
H – Chainstay Length
490mm
I – Fork Offset
46mm
J – Wheelbase
1173mm
K – Frame Reach
387mm
L – Frame Stack
691mm
Fork Travel
90mm
Fork Height
525mm
*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
*All specifications are subject to change without notice.
