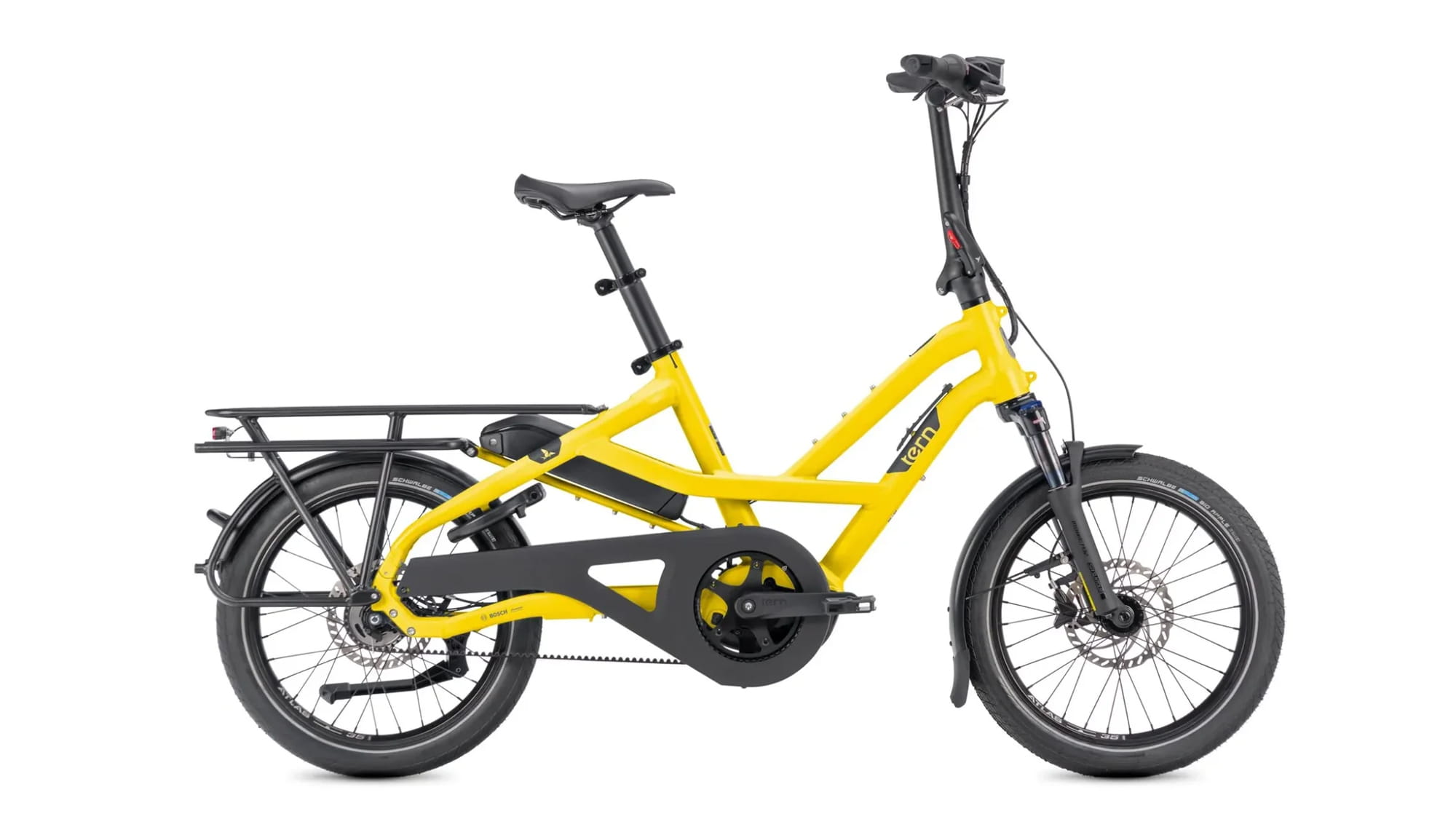

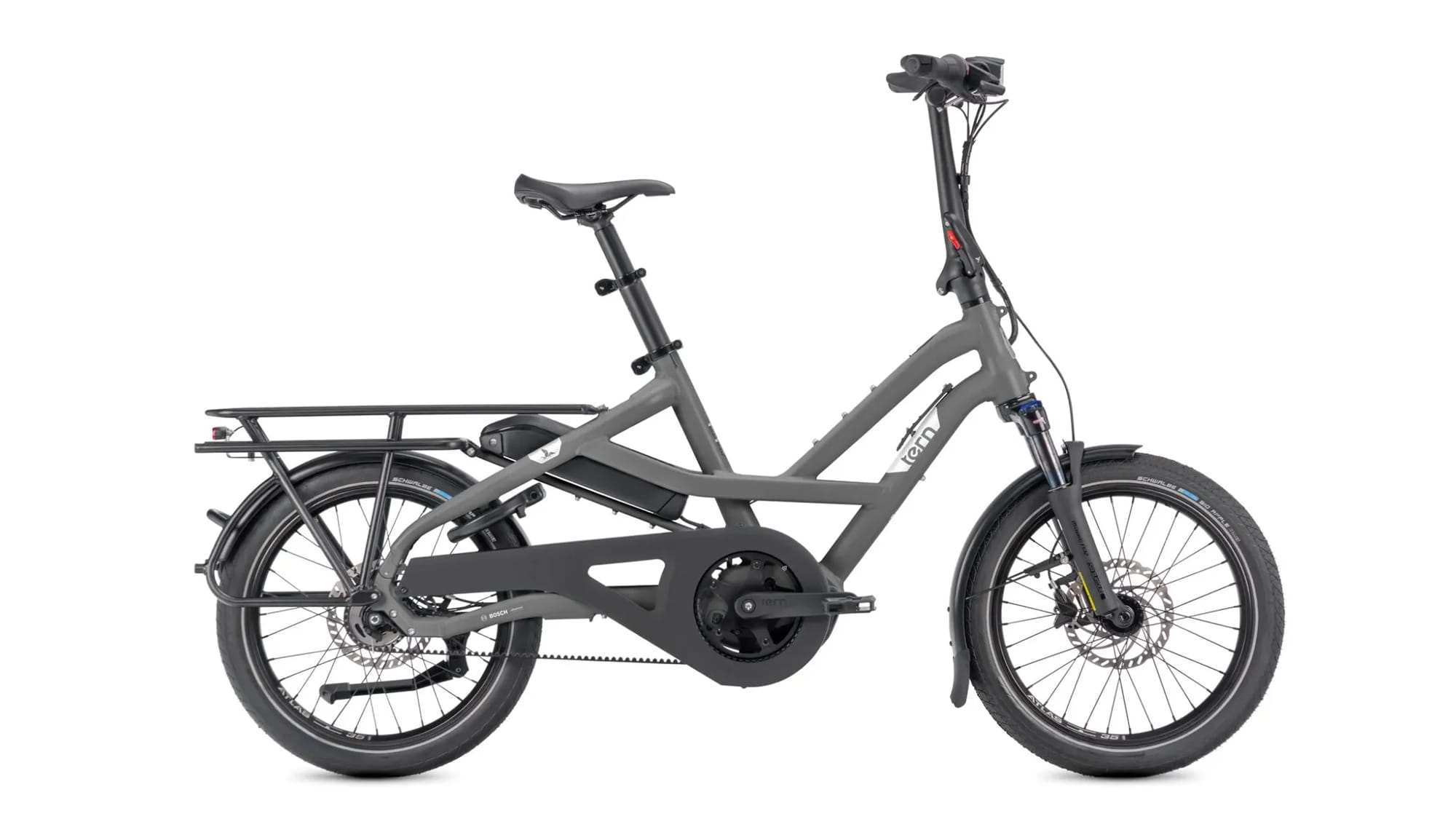

Tern HSD P5i Gen 3
The Tern HSD P5i Gen 3 is a compact electric cargo bike built for everyday transportation, passenger carrying, and heavy hauling with smooth Bosch assistance, a low-maintenance Gates Belt Drive, an internally geared Shimano Nexus hub, and a remarkably strong rear rack.
Full-size cargo capability without the full-size footprint.
The HSD P5i combines a stable low-center-of-gravity frame, Bosch Smart System power, a virtually maintenance-free belt drive, and a best-in-class rear rack in a compact bike that fits riders from 4’11” to 6’7″.
Bosch Smart System
Smooth Bosch assistance makes hills, cargo, and daily transportation easier while connected features add greater control and convenience.

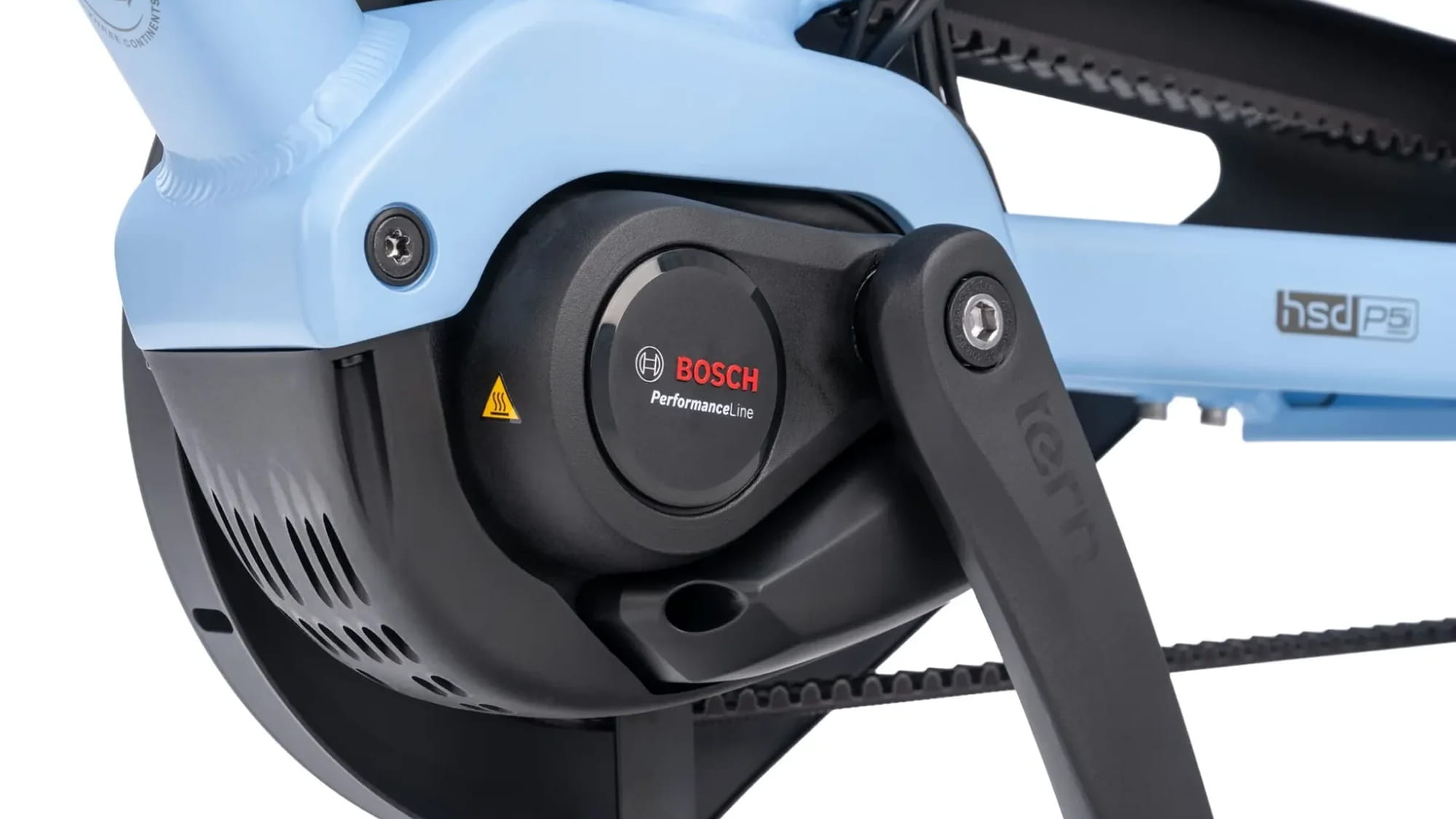

- Bosch Performance Line motor
- 75Nm of torque
- Up to 340% pedal assistance
- 20 mph maximum assisted speed
- Bosch eBike Flow app connectivity
- Electronic eBike Lock
Quiet Belt-Drive Performance

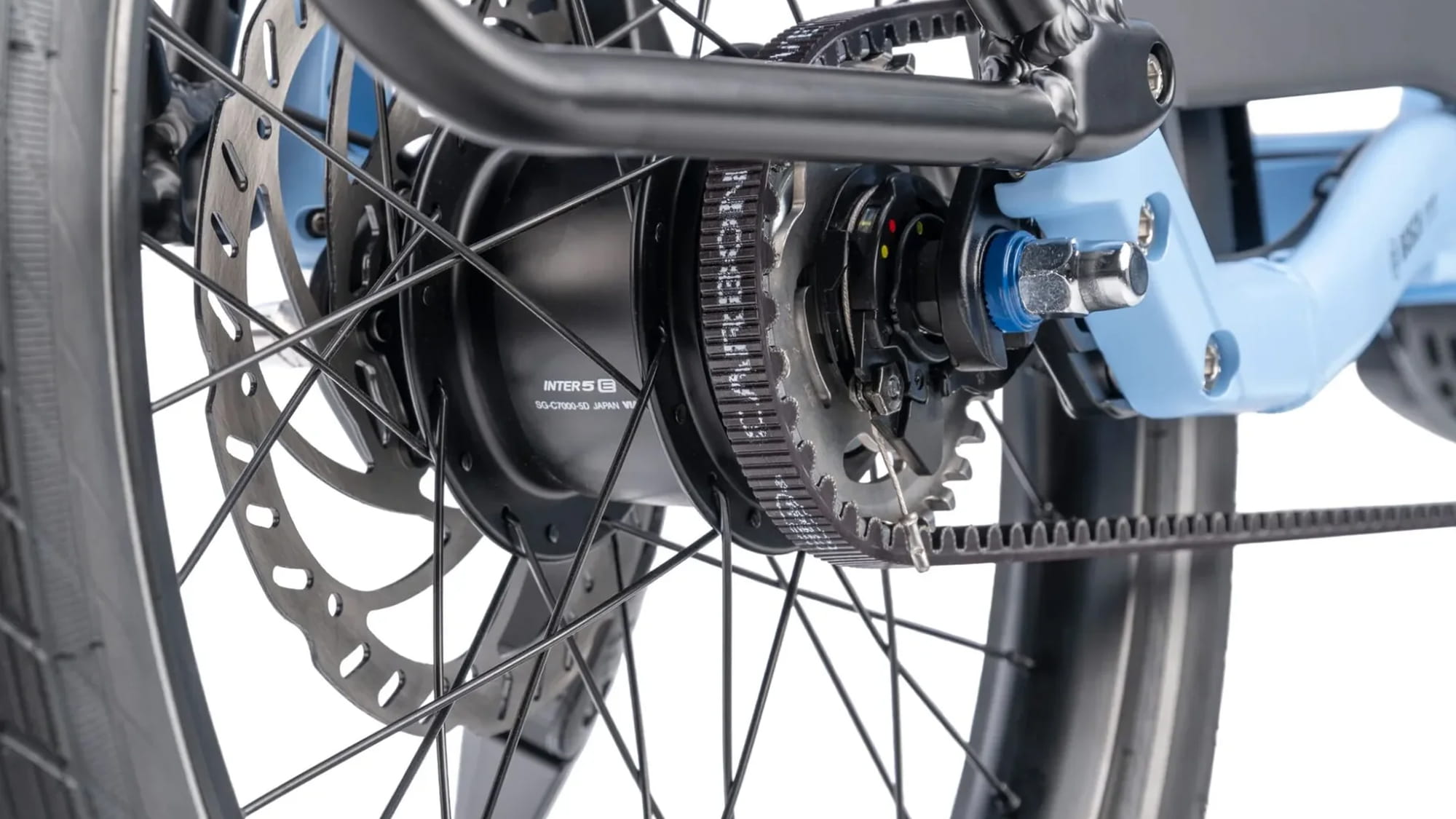

The Gates Carbon Drive and internal hub provide clean, quiet shifting with far less routine maintenance than a traditional chain drivetrain.
- Gates Carbon Drive CDX belt
- Shimano Nexus 5 internal hub
- 263% gear range
- Easy-to-use twist shifter
- No exposed derailleur
- Clean and low-maintenance operation

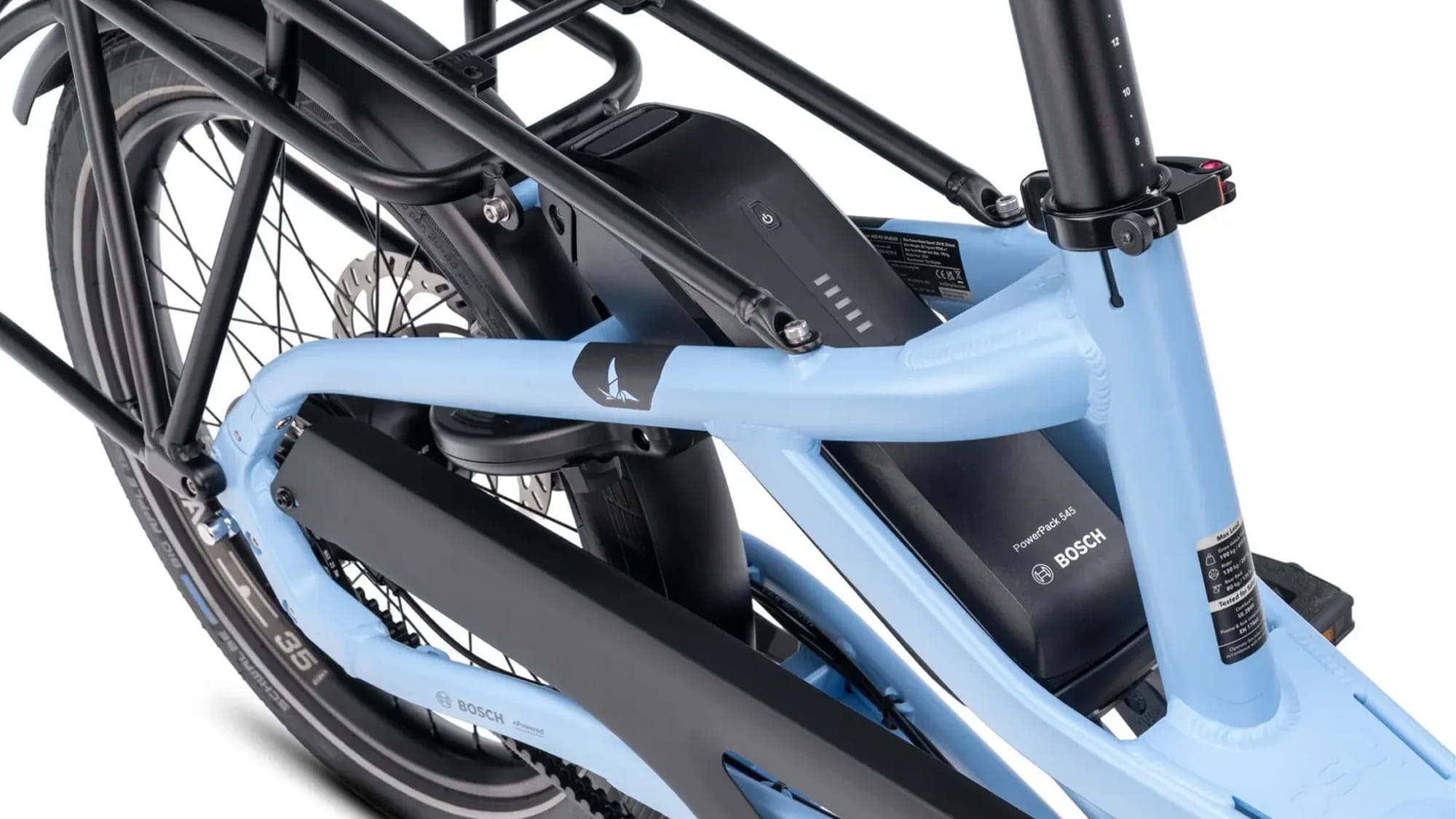

Long-Range Bosch Battery
The Bosch PowerPack 545 offers practical range for daily commuting, school runs, errands, and longer recreational rides.
- Bosch PowerPack 545 battery
- 545Wh battery capacity
- Estimated 35–67 mile range
- Removable battery design
- 4A fast charger
- Battery and frame lock share one key
Heavy-Duty Cargo Capacity

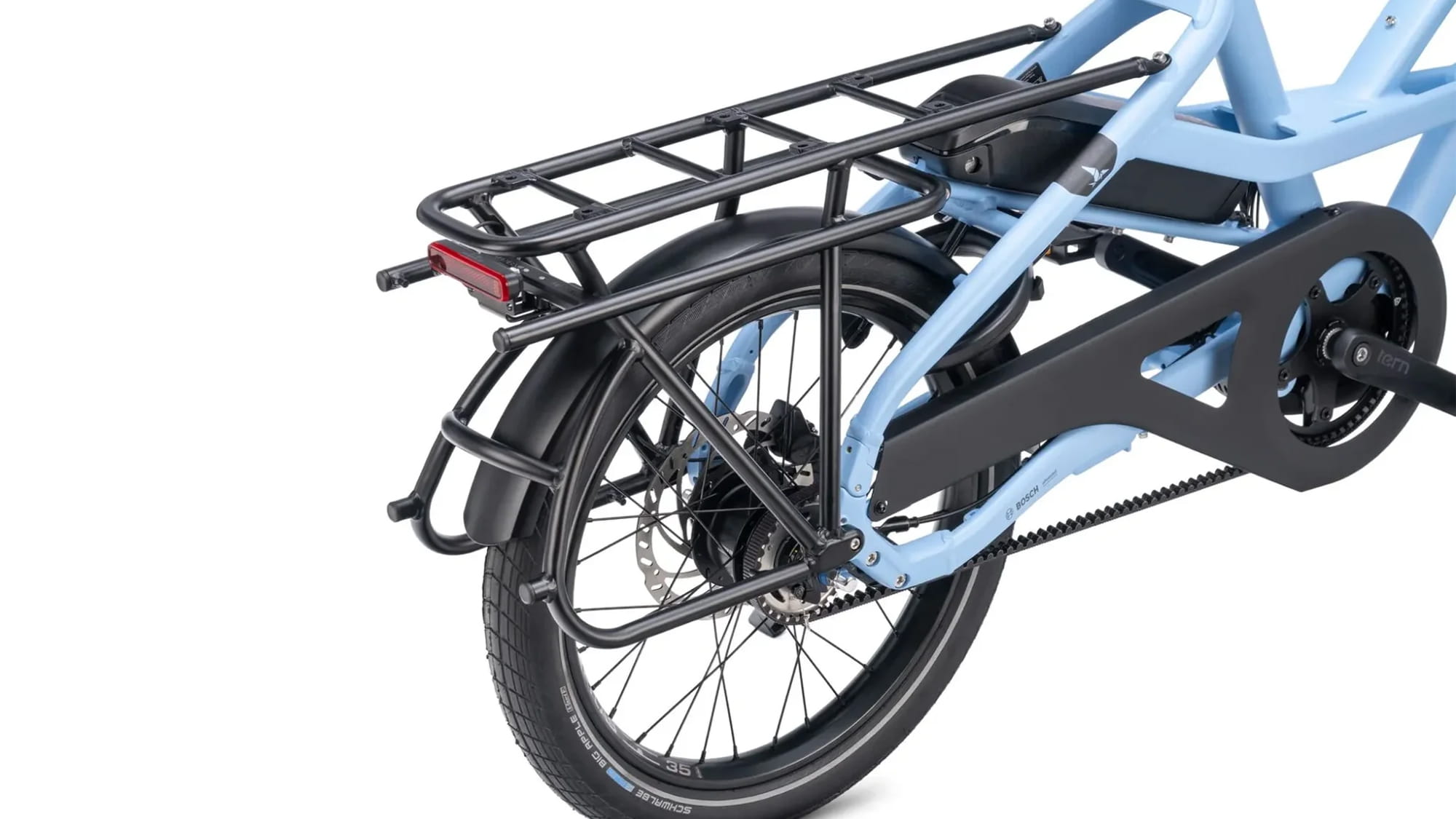

The Atlas H rack is designed for serious hauling and can be configured for cargo, a child passenger, groceries, pets, or daily supplies.
- 419 lb maximum gross vehicle weight
- 176 lb rear rack capacity
- Six-point rack mounting
- ISO 11243:2023 certified rack
- Passenger and cargo accessory compatible
- Front Tern Combo Mount
Stable, Comfortable Handling
A longer wheelbase, optimized cargo geometry, and low center of gravity help the HSD remain controlled with passengers or heavy loads.
- Custom Suntour suspension fork
- 32mm fork stanchions
- Thru-axle front wheel
- Schwalbe Big Apple tires
- Puncture protection and reflective sidewalls
- Low 19.1-inch standover height
Powerful Magura Brakes
Magura hydraulic disc brakes provide precise and dependable stopping performance for riding with cargo and passengers.
- Magura hydraulic disc brakes
- 180mm front brake rotor
- 180mm rear brake rotor
- Hydraulic brake levers
- Cargo-ready braking performance

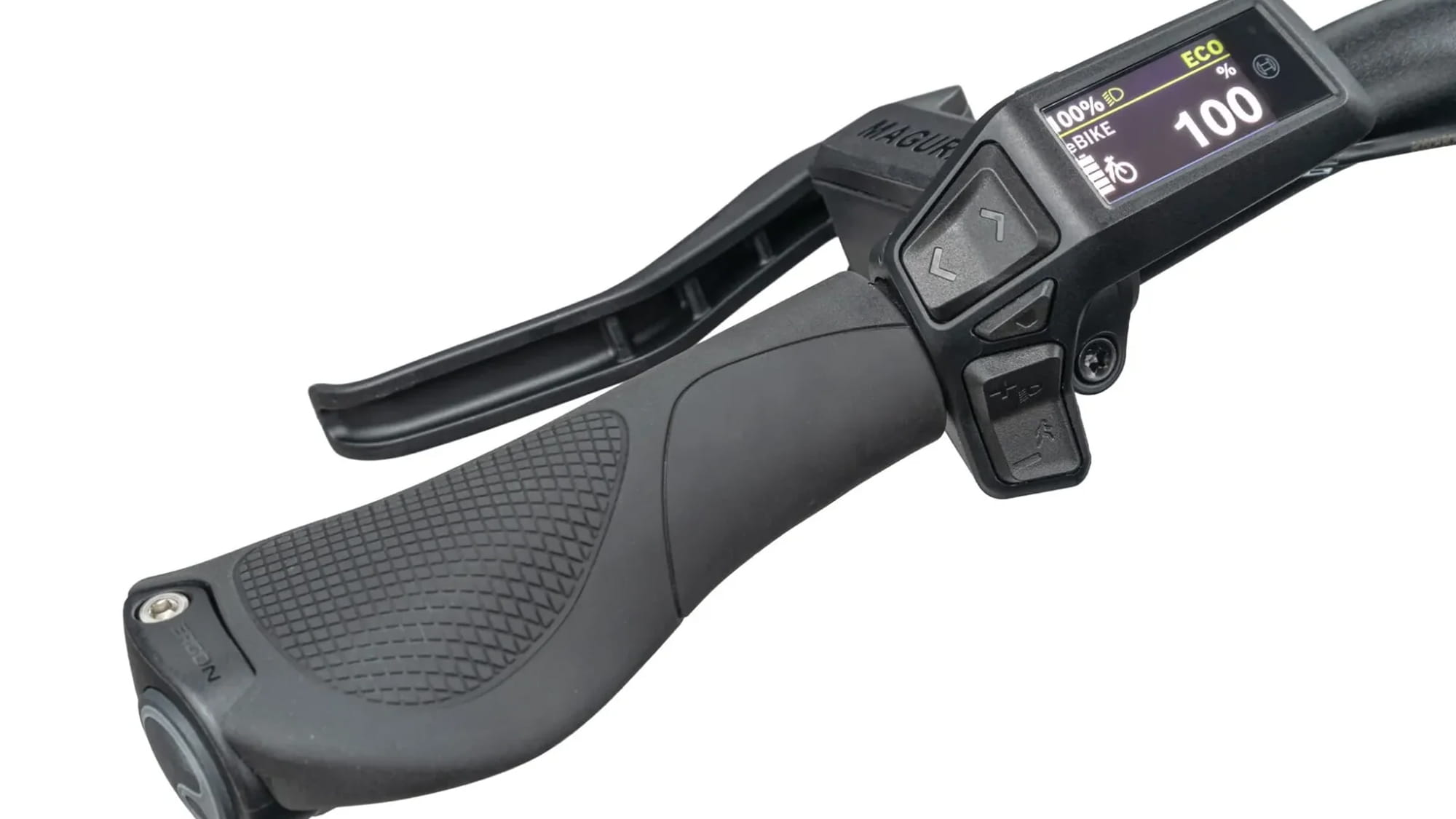

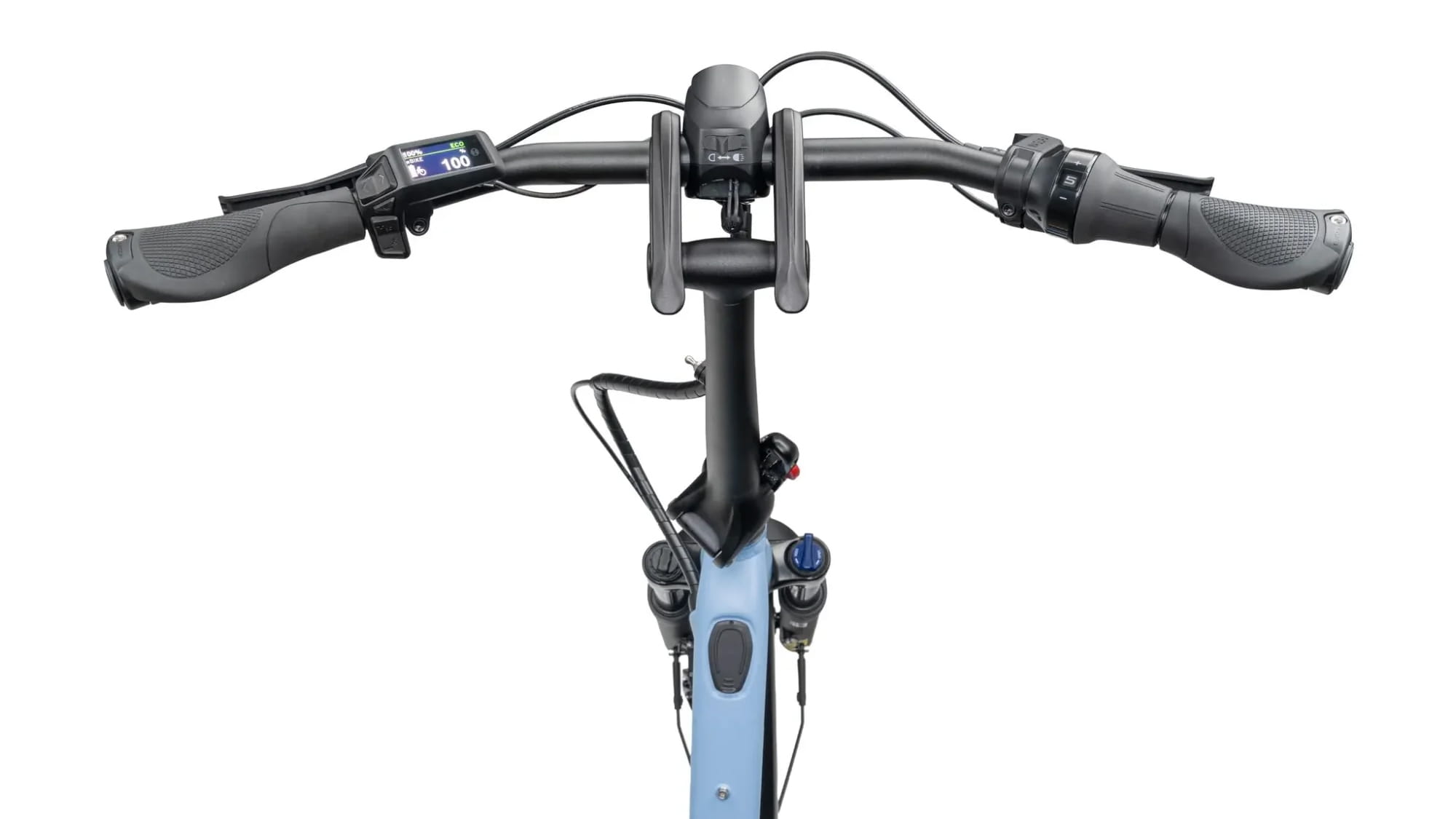

Easy-Sharing Cockpit
Tool-free handlebar and saddle adjustments make it easy for multiple family members to share the same bike.
- Fits riders 4’11″–6’7″
- One-size frame
- Tern Andros adjustable stem
- Tool-free cockpit adjustments
- Ergon grips
- Tern by Velo saddle
Compact Storage

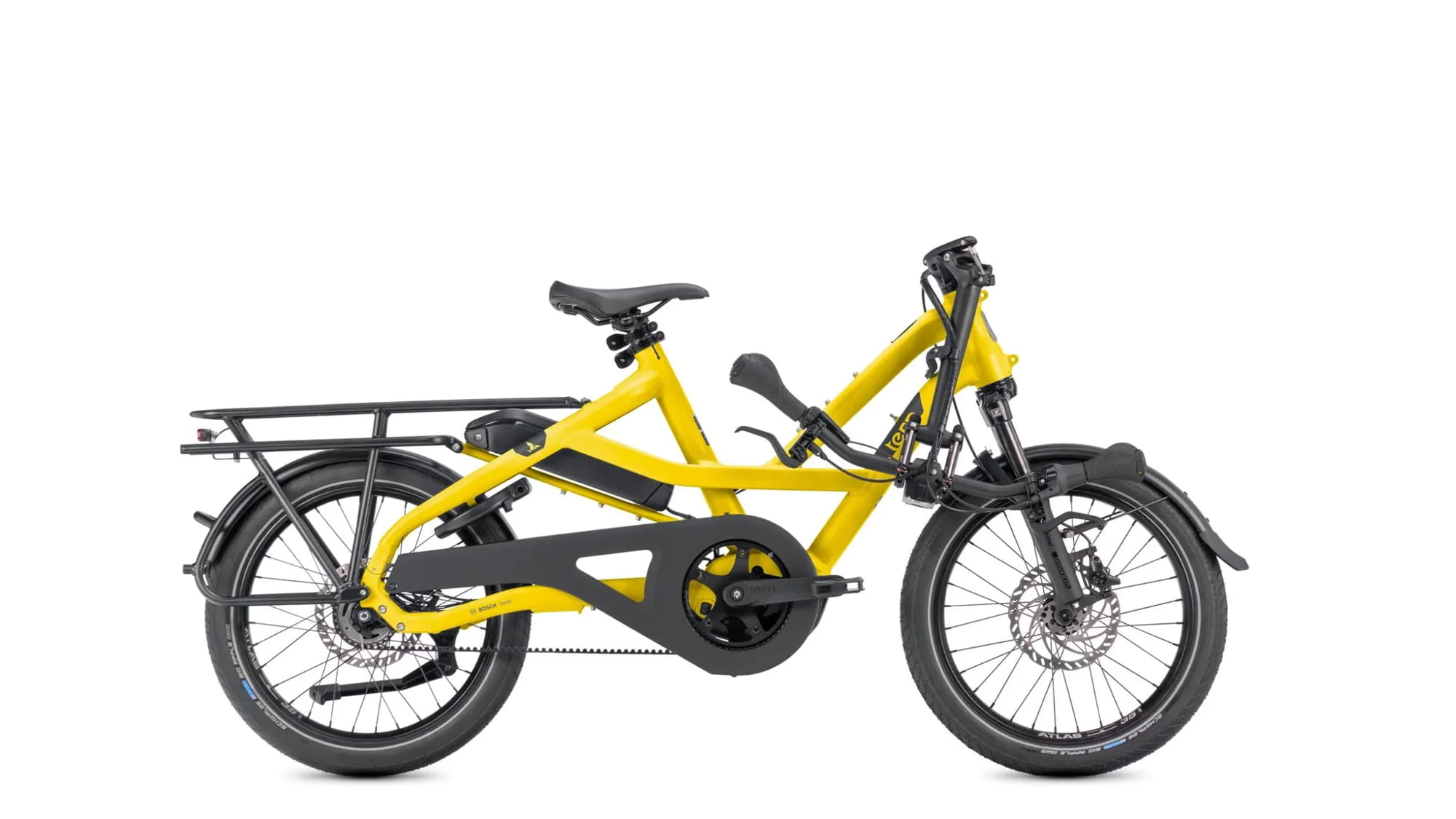

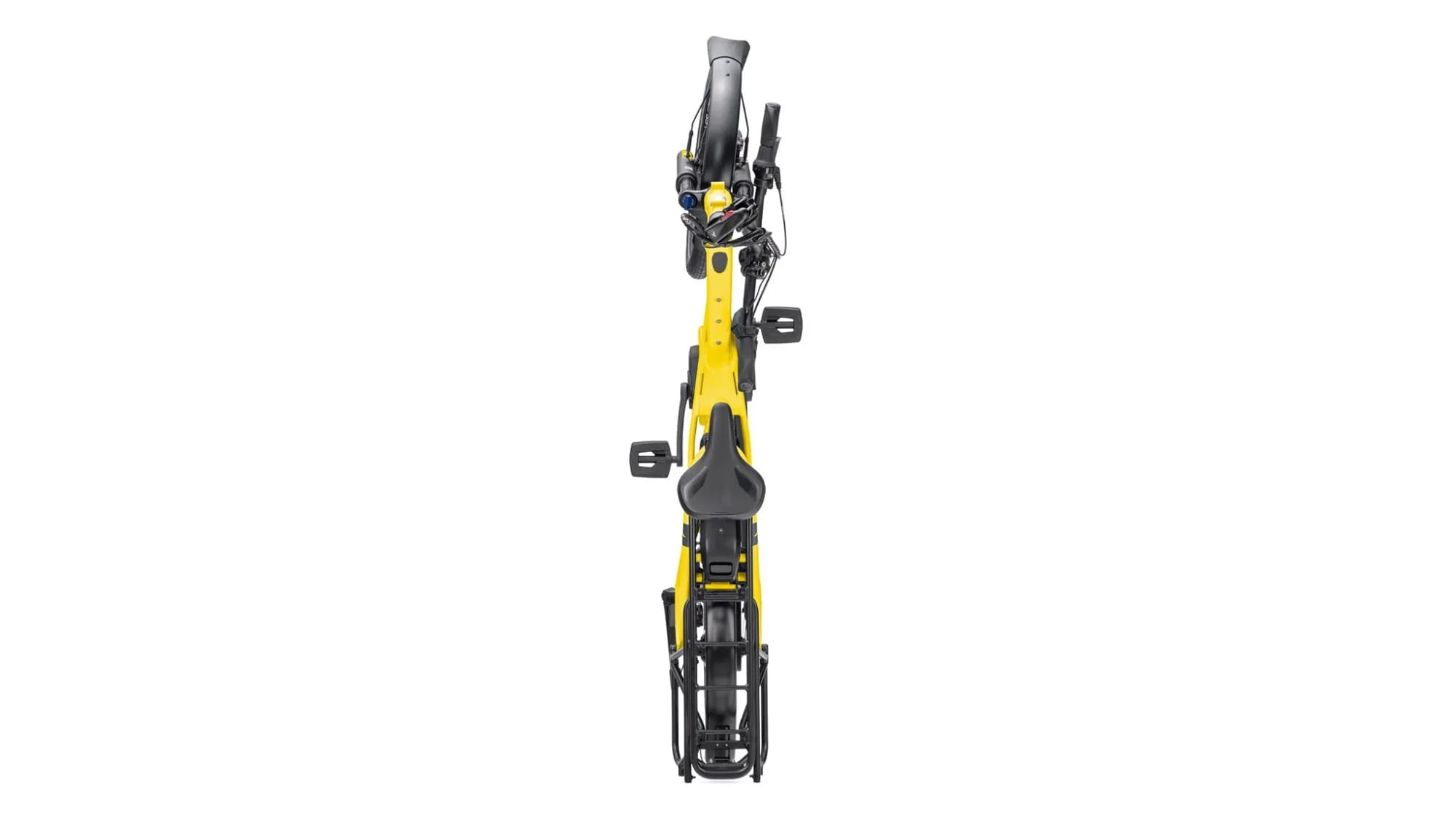

The folding handlepost reduces the bike’s width, while the compact frame is designed for easier storage than many full-size cargo bikes.
- Five-second handlepost fold
- Folded size: 65.4 x 16.5 x 34.3 inches
- Compact 20-inch wheels
- One-size family-friendly frame
- 61.9 lb bike weight
A compact cargo bike that rides like a regular bike.
The HSD P5i is designed to carry significant weight without feeling oversized or difficult to control. Its longer wheelbase and low center of gravity keep the bike composed while the suspension fork and wide tires improve comfort.
The Bosch motor adds smooth, natural assistance, while the internal hub and Gates belt make the drivetrain quiet and easy to maintain. It is equally suited to commuting, family transportation, grocery trips, and everyday cargo hauling.
Four Key Highlights
- Bosch Performance Line motor with 75Nm of torque
- Up to 67 miles of range with a Bosch PowerPack 545 battery
- Shimano Nexus 5 internal hub with a quiet Gates Belt Drive
- 419 lb maximum gross weight and 176 lb rear rack capacity
Complete Technical Specifications
Bosch E-System
- Bosch Performance Line motor
- 75Nm torque
- Up to 340% pedal assistance
- 20 mph assisted speed
- Bosch PowerPack 545 battery
- Estimated 35–67 mile range
- Bosch Purion 200 display
- 100–240V, 4A fast charger
Frame & Dimensions
- Tern HSD 6061 aluminum frame
- EN 17860 certified to 419 lbs
- One-size frame
- Bike size: 68.5 x 44.3 x 26.8 inches
- Wheelbase: 46.9 inches
- Standover height: 19.1 inches
- Bike weight: 61.9 lbs
- Five-second handlepost fold
Drivetrain
- Shimano Nexus 5 internal hub
- Five internal gears
- 263% gear range
- Shimano Nexus twist shifter
- Gates Carbon Drive CDX belt
- Gates CNC-machined beltring
- Gates CDX rear cog
- Full belt guard
Brakes & Suspension
- Magura hydraulic disc brakes
- 180mm front rotor
- 180mm rear rotor
- Custom Suntour suspension fork
- 32mm fork stanchions
- Thru-axle front fork
- EN 17860 certified fork
Wheels & Tires
- Tern Atlas H cargo wheels
- Tern Atlas H cargo rims
- Novatec thru-axle front hub
- Sealed front hub bearings
- Shimano Nexus 5 rear hub
- Schwalbe Big Apple 55-406 tires
- Puncture protection
- Reflective tire sidewalls
Cockpit & Fit
- Fits riders 4’11″–6’7″
- Maximum rider weight: 287 lbs
- Tern Physis 3D handlepost
- Tern Andros adjustable stem
- Tern Sweep aluminum handlebar
- Ergon grips
- Tern by Velo saddle

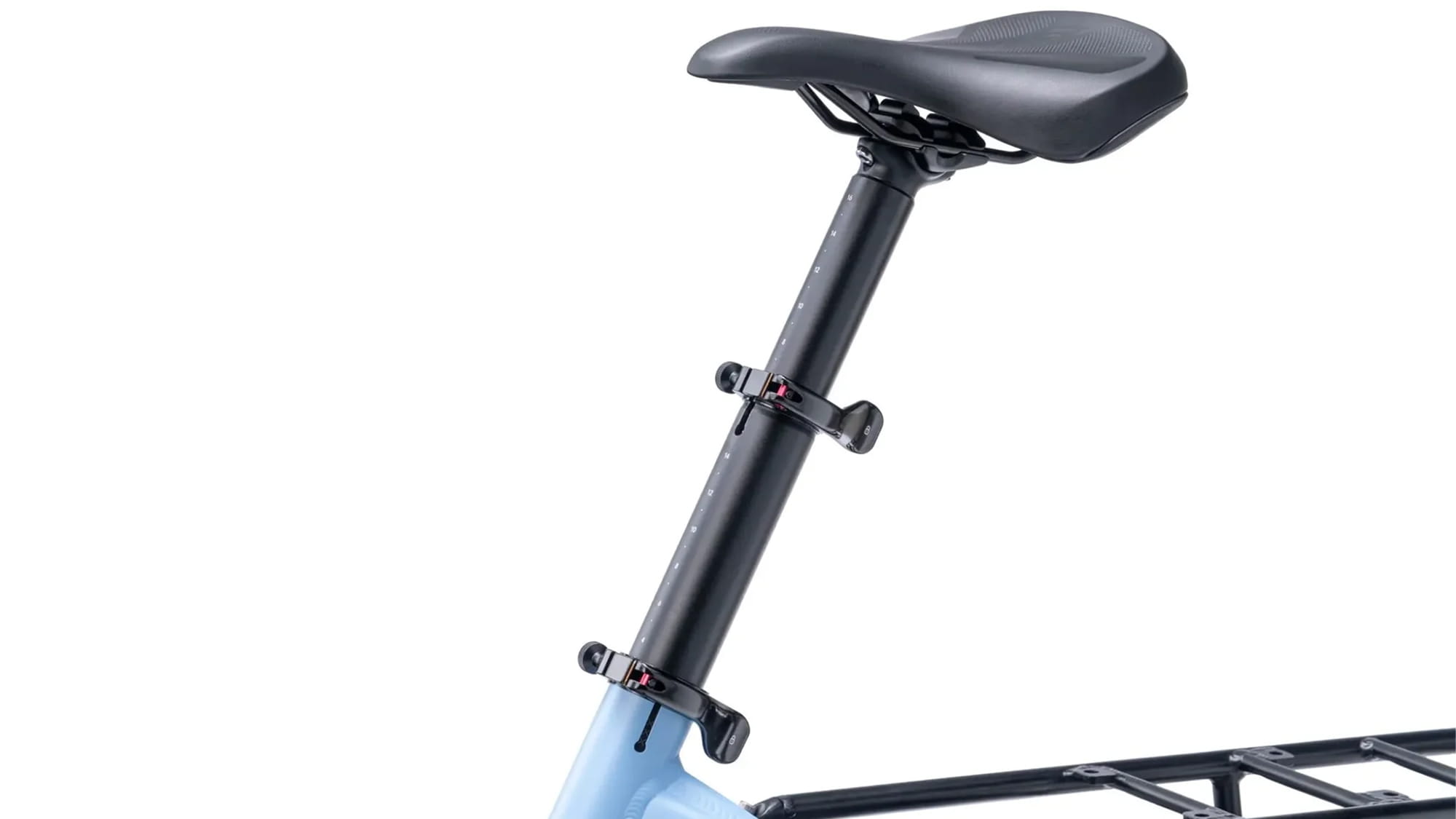

- Tern VLT telescoping seatpost
Cargo Capacity
- 419 lb maximum gross vehicle weight
- 176 lb rear rack capacity
- Atlas H six-point rear rack
- ISO 11243:2023 rack certification
- Tern Combo Mount luggage socket
- Passenger accessory compatible
- Cargo and pet accessory compatible
Lighting & Equipment
- Tern Valo Direct front light
- 190-lumen front output
- Herrmans LED rear light
- AXA frame lock
- Battery and frame lock keyed alike
- Aluminum fenders
- Stainless fender hardware
- Ursus rear kickstand
Safety & Certification
- UL 2849 certified complete eBike system
- EN 17860 certified frame and fork
- 419 lb certified gross vehicle weight
- ISO 11243:2023 certified rear rack
- Bosch electronic eBike Lock
- Over-the-air system updates
Size, Fit & Color
One-Size Fit
The easy-sharing cockpit adjusts without tools to fit a broad range of adult riders.
- Suggested height: 4’11″–6’7″
- Maximum rider weight: 287 lbs
- One-size frame
- Tool-free adjustable stem
- Telescoping seatpost
- Low 19.1-inch standover height
Available Color
The HSD P5i Gen 3 is shown by Tern in Satin Honey.
Why This Bike Stands Out
Compact Cargo Design
The HSD delivers serious cargo capability in a shorter, easier-to-store frame.
Low-Maintenance Drivetrain
A Gates belt and internal Shimano hub provide clean, quiet, dependable shifting.
Exceptional Rack Capacity
The Atlas H rack carries up to 176 lbs for passengers, groceries, gear, or other cargo.
Easy Family Sharing
Tool-free cockpit adjustments allow riders from 4’11” to 6’7″ to comfortably share one bike.
